Reverse Channel Letters
Are you looking for the exact premium illuminated signs to elevate a brand's physical presence? We are the source factory. From single prototypes to multi-location rollouts, we engineer flawless halo-lit signage tailored to your exact specifications.
Reverse Channel Letters Manufacturer
As a premier business signs manufacturer, our identity is rooted in heavy industrial precision and optical excellence. We are not just an assembler; we are a comprehensive manufacturing powerhouse dedicated to engineered illuminated signs.
Our facility is equipped to handle everything from intricate single-store signage to massive multi-location corporate rollouts. By bridging the gap between raw metal fabrication and advanced LED optical integration, we provide unparalleled OEM and ODM solutions for global signage distributors and architectural firms.
- 20+ Years Industrial Fabrication Experience
- Standardized Factory Workflows
- Strict Quality & Project Management
Reverse Channel Letters Classification
01. By Backplate Configuration
1.1 Reverse Letters Without Crystal Backer
Galvanized Sheet
- ■ Custom painting per any Pantone code.
- ■ Client-specified color matching available.
Stainless Steel
- ■ Grade 304: For general outdoor applications.
- ■ Grade 316: For coastal corrosive environments.
- ■ Finishes: Mirror polish, brushed, rose gold, black titanium, antique bronze.
PVC Shell
- ■ Custom painting per any Pantone code.
- ■ Client-specified color matching available.
Brass & Copper
- ■ Premium custom decorative material.
- ■ High-end aesthetic finish.
1.2 Reverse Letters With 10–20mm Crystal Backer
Galvanized Sheet
- ■ Custom painting per any Pantone code.
- ■ Client-specified color matching available.
Stainless Steel
- ■ Grade 304: For general outdoor applications.
- ■ Grade 316: For coastal corrosive environments.
- ■ Finishes: Mirror polish, brushed, rose gold, black titanium, antique bronze.
PVC Shell
- ■ Custom painting per any Pantone code.
- ■ Client-specified color matching available.
Brass & Copper
- ■ Premium custom decorative material.
- ■ High-end aesthetic finish.
02. By Mounting Solution
Stand-off / Stud Mount
- ■ Standard installation method.
- ■ Suspended 20–50mm off wall.
- ■ Creates prominent halo backlight effect.
Raceway Mount
- ■ Integrated rear wiring raceway.
- ■ Minimal wall drilling required.
- ■ Ideal for chain store projects.
Flush Short Stud Mount
- ■ Less than 10mm gap from wall.
- ■ Creates a slim halo effect.
- ■ Perfect for curtain wall applications.
Recessed Mount
- ■ Recessed into pre-cut wall groove.
- ■ Designed for high-end architectural decoration.
03. By LED Light Source
Single-color fixed LED
- ■ Warm white & cool white options.
- ■ For conventional corporate & retail signage.
Dimmable RGB / RGBW LED
- ■ Programmable color changing capabilities.
- ■ For boutique & entertainment commercial spaces.
Power supply
- ■ Standard DC12V / DC24V options.
- ■ AC integrated high voltage available upon special request.
04. By Letter Can Depth
Shallow Can (20–40mm)
- ■ For small indoor logos.
- ■ Ideal for close-to-wall installation.
Standard Can (50–80mm)
- ■ Most popular dimension.
- ■ For outdoor storefront signage.
Deep Can (90–150mm)
- ■ For oversized exterior building facade letters.
- ■ Optimized for long viewing distances.
Ready to Illuminate Your
Next Major Project?
Wall Surface &
Halo Effect Guide
The final halo effect of reverse channel letters is strongly affected by the installation wall. Wall color, surface texture, reflectivity, and mounting distance all influence how wide, soft, and visible the rear glow appears after installation.
Wall Surface Impact
| Wall Surface | Halo Effect | Recommendation |
|---|---|---|
| White or light-colored wall | Strongest and cleanest halo reflection | Best choice for clear and uniform halo lighting. |
| Light stone or marble wall | Soft, premium, and architectural glow | Ideal for hotels, luxury retail, lobbies, and corporate walls. |
| Dark wall | Halo effect becomes weaker and less visible | Use higher LED brightness, proper standoff distance, or a lighter backer panel. |
| Rough concrete or brick wall | Halo may appear broken or uneven | Test the wall surface first or use a clear backer panel to improve light distribution. |
| Wood or textured wall | Warm atmosphere but less clean halo edge | Suitable for restaurants, bars, and interior branding projects. |
| Glass facade | Reflection can be complex and less controlled | Use special mounting hardware, raceway mounting, or backer panel support. |
Recommended Standoff Distance
| Distance From Wall | Lighting Result | Best Use |
|---|---|---|
| Less than 10mm | Very narrow halo effect | Flush or curtain wall installations |
| 20–30mm | Soft and controlled halo glow | Interior logo walls and reception signs |
| 30–50mm | Standard visible halo effect | Outdoor storefronts, hotels, and commercial facades |
| Over 50mm | Wider glow but possible light spread | Large letters or special architectural effects |
Expert Recommendation
For the best result, the wall surface should be reviewed before production. A light, smooth, and reflective background usually creates the most uniform halo effect, while dark or rough surfaces may require stronger LEDs, adjusted spacing, or a supporting backer panel.

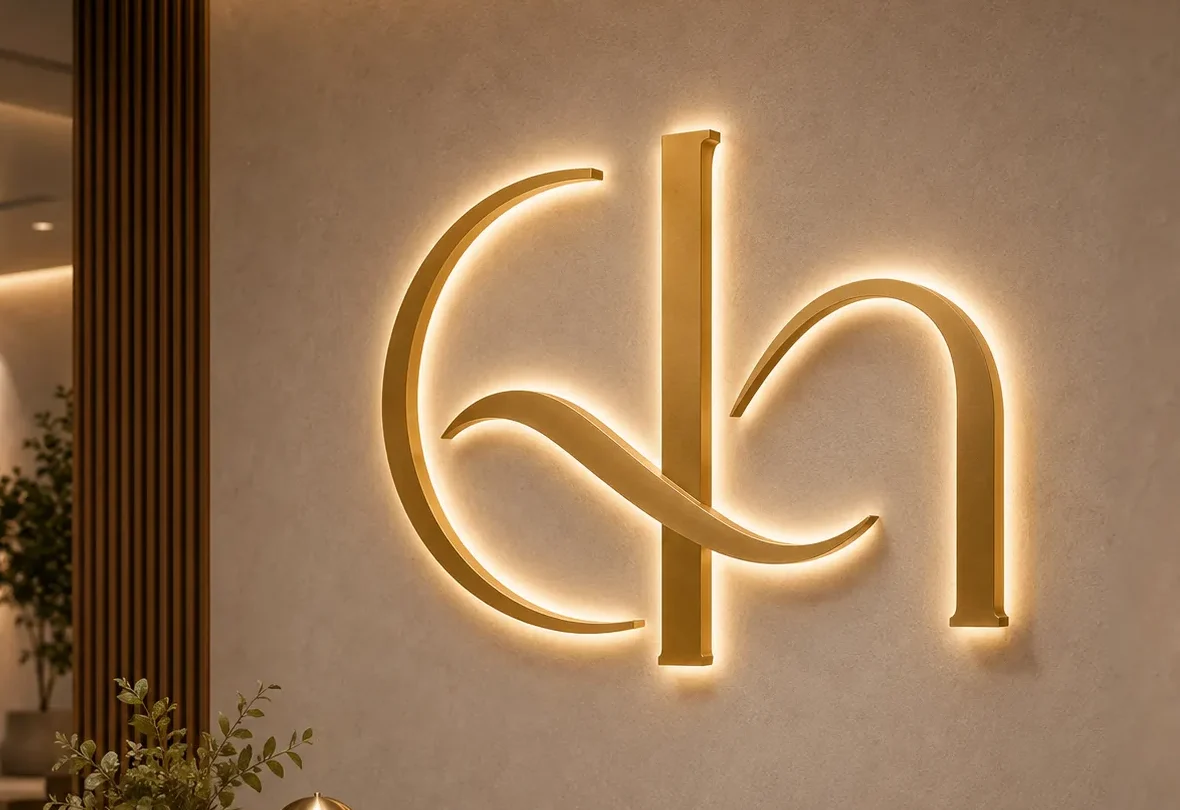

Open Back vs Clear Backer: Which Structure Should You Choose?
Reverse channel letters can be produced with an open-back structure or a transparent backer structure. The right choice depends on the installation environment, maintenance requirements, dust protection, and desired halo lighting effect.
| Back Structure | Best For | Main Advantage | Consideration |
|---|---|---|---|
| Open Back Reverse Letters | Indoor walls, clean environments, short-distance viewing | Direct rear light output and strong halo effect | More exposed to dust, insects, and wall conditions |
| Clear Acrylic / PC Backer | Outdoor signs, hotels, retail stores, long-term commercial projects | Helps protect LEDs from dust, insects, and debris | Requires good material transparency and clean sealing |
| Crystal Backer | Premium interior branding, luxury stores, reception walls | Creates a cleaner edge and more refined visual depth | Higher material and processing requirements |
| Full Sealed Back Structure | Outdoor facades and harsh environments | Better protection for long-term use | Needs proper waterproof wiring and heat management |
Expert Recommendation
For indoor decorative walls, open-back reverse letters can create a clean and direct halo effect. For outdoor storefronts, hotels, shopping centers, or projects where maintenance access is limited, a clear backer or sealed rear structure is usually the safer choice to ensure longevity and consistent illumination.
Solving Industry Challenges
We engineer out the common failures found in standard LED sign manufacturing. Here is how PDL's factory expertise protects your projects.
Perfect Halo Lighting Effect
Uneven wall textures, incorrect mounting distance, or poor installation methods can cause distorted, weak, or inconsistent halo illumination.
PDL uses pre-calculated stand-off spacers and precision mounting templates to maintain the ideal projection distance, ensuring a smooth, uniform halo effect across every letter.
Key Benefits
- ✓ Consistent halo brightness
- ✓ Premium floating appearance
- ✓ Indoor & outdoor applications
- ✓ Professional installation accuracy
Dust-Free & Insect-Proof Back Structure
Traditional reverse channel letters often leave open cavities behind the letters, allowing dust, insects, and debris to accumulate over time, reducing light output and creating visible dark spots.
Our transparent polycarbonate backer system fully seals the LED cavity while maintaining maximum light transmission.
Key Benefits
- ✓ Prevents insects & dust buildup
- ✓ Zero-maintenance operation
- ✓ Cleaner halo illumination
- ✓ Extended LED lifespan
Seamless Construction With No Light Leakage
Problem
Poor welding and insufficient internal shielding can cause unwanted light leakage from edges and seams, damaging the premium reverse-lit appearance.
PDL Solution
Precision laser welding combined with internal light-blocking coatings ensures that all illumination is directed exclusively toward the rear halo area.
- ✓ 100% rear-directed illumination
- ✓ Clean architectural appearance
- ✓ Premium nighttime visibility
- ✓ High-end commercial finish
Accurate Reproduction of Complex Logos
Problem
Many manufacturers struggle to fabricate extremely thin strokes, sharp corners, and intricate brand logos, forcing customers to simplify their designs.
PDL Solution
High-precision CNC routing technology and ultra-slim flexible Mini LED systems allow us to reproduce highly detailed brand assets without compromising the original design.
- ✓ Supports ultra-thin strokes
- ✓ Maintains brand consistency
- ✓ Luxury branding projects
- ✓ Precision manufacturing capability
Faster Installation & Lower Labor Costs
Problem
Complicated installation procedures increase contractor labor costs and often lead to project delays.
PDL Solution
Every project includes 1:1 installation templates, plug-and-play wiring systems, detailed installation instructions, and pre-tested electrical assemblies.
- ✓ Faster installation
- ✓ Reduced labor costs
- ✓ Lower risk of errors
- ✓ Ideal for multi-location rollouts
Safe Global Shipping & Reliable Long-Term Performance
Problem
International transportation and harsh outdoor environments can damage signs or shorten product lifespan.
PDL Solution
PDL combines export-grade packaging with premium materials including 304/316 stainless steel, certified LED systems, and weather-resistant finishes.
- ✓ Export wooden crate protection
- ✓ CE / UL / RoHS certified
- ✓ Corrosion-resistant materials
- ✓ Long-term outdoor durability
- ✓ Safe worldwide delivery
Real Products & Installation
Witness our precision engineering in action. From meticulous factory fabrication to flawless on-site execution, every custom LED channel letter is crafted to deliver maximum impact.
Real Reverse Channel Letters Projects
Day & Night Visual Comparison
Vibrant & Consistent Illumination
Clean & Professional Finish
Inspired by These Projects?
Get a Custom Reverse Channel Letters Quote for Your Brand
Whether you're planning a storefront sign, corporate logo wall, hotel branding, or large-scale architectural signage project, our team is ready to help with design recommendations, engineering drawings, and factory-direct pricing.
Talk to Our Signage Experts
Send your logo, drawing, or project requirements and receive professional recommendations within 24 hours.
Skilled Craftsmen
Behind Every Sign.
Experienced Technicians, Precision Workmanship, and Strict Quality Control at Every Production Stage.
Strategic Applications
Where reverse halo lit channel letters make the maximum architectural and branding impact.
Corporate Headquarters
- Reverse channel letters are highly common on exterior walls or lobby backgrounds to create Brand Walls, Reception Logo Signs, and Cultural Display Areas.
- They emphasize brand texture over raw advertising exposure.
Luxury Retail & Flagship Stores
- Essential for luxury brand storefronts, flagship stores, and high-end apparel/beauty boutiques.
- Designed to enhance the premium brand atmosphere, increasing foot traffic and brand recognition.
Hotels & Restaurants
- Widely applied in boutique hotels, fine dining, western restaurants, and lounge/bar spaces.
- Creates a perfect balance of ambiance and recognition, especially striking in night-time scenarios.
Shopping Malls & Commercial Spaces
- Perfect for mall brand walls, directional branding systems, and atrium displays.
- Delivers a unified visual system that elevates the high-end spatial design sense of the environment.
Architectural Signage
- Designed for long-term architectural use.
- Offering visual stability and anti-aging durability.
Showrooms & Exhibition Spaces
- Ideal for showroom backgrounds, trade show booths, and immersive brand experience centers.
- Significantly strengthens brand recognition and elevates overall exhibition professionalism.
Precision Craftsmanship
Behind Every Reverse Channel Letter
Engineered for architectural excellence. Our industrial-grade manufacturing process ensures flawless execution for commercial projects.
Seamless Laser Welding
- No visible welding marks
- No light leakage
- Cleaner metal appearance
- Premium architectural finish
Ultra-Fine Stroke Fabrication
- High-precision CNC routing
- Mini LED integration
- Sharp corners and complex logo support
- Perfect reproduction of luxury brand identities
Precision Halo Engineering
- Calculated stand-off distance
- Uniform light projection
- Consistent halo effect
- Better wall reflection performance
Industrial Grade Quality Control
- CE / UL / RoHS compliant components
- Multi-point testing before shipment
- Stable brightness and long service life
- Reliable for large commercial projects
Precision Engineered
Custom LED Signs
Backed by 20 years of dedicated factory manufacturing, we deliver uncompromising OEM/ODM solutions. Our production lines are built for scale, precision, and durability, ensuring every channel letter meets rigorous global standards.
20 Years Direct Factory
End-to-end manufacturing control from raw material to final assembly.
CE & RoHS Certified
Internationally compliant components ensuring safety and longevity.
Actual Production References
Click the download icons below to access our comprehensive product case files. Each download contains critical reference materials including: Back structure diagrams, technical dimension data, and actual night-time illumination effect previews.
Skilled Craftsmen Behind Every Sign
Experienced Technicians, Precision Workmanship, and Strict Quality Control at Every Production Stage.
Engineered to Your
Exact Specifications
Appearance
- Color
- Font style
- Shape
- Logo design
- Surface finish (brushed / mirror / matte / painted)
- Edge color
- Face color
- Return color (side color)
Size & Structure
- Letter height
- Letter depth / thickness
- Overall sign dimensions
- Stroke width
- Custom length
- Logo proportion
Material
- Acrylic face
- Stainless steel
- Aluminum
- Galvanized steel
- PVC
- Composite materials
Lighting
- Color temperature (Warm White / Natural White / Cool White)
- Single color lighting
- RGB color changing
- LED module type
- LED strip type
- Brightness level
- Halo lighting effect
- Front illumination effect
- Front & back illumination effect
Installation
- Wall mounted
- Raceway mounted
- Backer panel mounted
- Hanging installation
- Stand-off installation
- Flush mounted
Electrical
- Voltage options (12V / 24V / customized)
- Power supply specification
- Waterproof rating
- Indoor / outdoor configuration
Project & Branding
- OEM branding
- ODM design support
- Engineering drawings
- Packaging customization
- Multi-location projects
- Bulk order solutions
Extra Options
- Waterproof level
- UV resistance
- Anti-corrosion treatment
- Energy-saving LED option
- Smart control system
- Dimming function
- Remote control
- Timer function
Reverse Channel Letters
Installation in Action
Watch Our Professional Team Bring Each Project to Life
Export-Grade Packaging & Shipping
Engineered protection protocols ensuring your custom LED channel letters arrive in pristine, showroom-quality condition anywhere in the world.
Surface Protection
Prevent Scratches on Finished Surfaces
Mirror stainless steel, brushed metal, painted finishes, and acrylic components are individually covered with protective film before packaging.
- Prevents scratches and abrasions
- Protects premium surface finishes
- Maintains showroom-quality appearance upon arrival
EPE Corner Protection
Extra Protection Against Transportation Damage
High-density EPE foam corner protectors and cushioning materials are applied around vulnerable edges and corners to absorb shock during handling and transit.
- Reduces impact damage risk
- Protects corners and delicate details
- Suitable for long-distance international shipping
Custom Cartons
Packaging Sized to Match Every Project
Different sign sizes require different packaging solutions. Each order is packed using appropriately sized export cartons to maximize protection and minimize movement during transportation.
- Better internal stability
- Reduced vibration during transit
- Optimized shipping efficiency
Packing Process
Multi-Layer Packaging for Maximum Security
Every sign is carefully wrapped, separated, and secured using multiple protective layers before sealing.
- Enhanced shock resistance
- Improved moisture protection
- Reduced risk of deformation and scratches
Container Loading
Safe Loading for International Export
Finished packages are organized and secured according to export loading standards to prevent shifting, compression, or accidental damage during transportation.
- Stable container arrangement
- Reduced loading-related damage
- Better protection for large commercial projects
Global Shipping
Reliable Worldwide Delivery
We work with trusted international logistics partners to support air freight, sea freight, and express shipping options for projects of all sizes.
- Worldwide shipping coverage
- Flexible transportation methods
- Tracking support available & safe delivery
Packaging Highlights
Secure Your Next Project Delivery
Consult NowCertificates
LED Sign Installation
Preparation
Open the box, pick out the yellow 1:1 Kraft paper and tile it on the floor. Then place the LED letters into the corresponding graphical in the Kraft paper. Pick out the transformer after confirm the LED letters, then read the installation carefully. Then get through the transformer and test the LED letters.
Positioning
Adhesive the Kraft paper to the place you want to installed. (Manuscript was marked mounting screw holes and outlet holes).
Drilling
Use self-tapping screws twist into 3/4 in the right place. Then use 8mm diameter brick to dig the outlet holes.
Mounting
Give some glass cement and the hot melt adhesive tape in the back of the LED letters, put out the outlet from the outlet holes. Then hang in the corresponding screw clamping compaction (need to torn the corresponding Kraft paper before installation). Play little glass cement in the inconspicuous place of LED letters and the plate.
Wiring
As shown, 220V connect transformer Input or "L""N", output 12V (anode ,+,red) (cathode, -, black blue ) and the black blue wiring are connected LED letters outlet.
Transformer
Transformer must be installed in a dry and well ventilated place.
Important Note
LED letters are the 12V low-voltage electrical appliances. If there are many lights cascade it will make the lights dark, so we need the transformer V+,V- or COM in parallel the LED letters.
Do not connect the 220V directly without using transformer!!!
Frequently Asked Questions About Reverse Channel Letters
1. What Is the Difference Between Reverse Channel Letters and Front Lit Channel Letters?
2. Are Reverse Lit Channel Letters Bright Enough for Outdoor Signage?
3. Are Reverse Channel Letters Waterproof for Outdoor Use?
4. How Long Do Reverse Channel Letters Last?
5. Can Reverse Channel Letters Combine Halo Lighting and Front Lighting?
6. Do You Offer OEM and Wholesale Reverse Channel Letters?
7. What Is the Best Material for Outdoor Reverse Channel Letters?
8. What Factors Affect Reverse Channel Letters Cost?
- Letter Size
- Material Selection
- Surface Finish
- Lighting Configuration
- Logo Complexity
- Installation Method
- Order Quantity
- Shipping Destination
9. Do You Provide International Shipping?
Reverse Channel Letters Technical Guide
1. What Are Channel Letters?
Why Are They Called Channel Letters?
Channel Letters are named after their three-dimensional enclosed structure, often referred to as a "light channel." Unlike flat signs, each letter is fabricated with a face, side returns, and backing to create an internal cavity that houses LED modules and wiring systems. This enclosed channel not only protects electrical components from dust, moisture, and weather exposure but also helps control light distribution, ensuring brighter, cleaner, and more professional illumination. The result is a durable signage solution widely used for commercial branding, storefronts, and architectural applications.
Key Features
- Three-dimensional fabricated structure
- Internal cavity for LED installation
- Waterproof and dustproof design
- Controlled and efficient light distribution
- Long-term outdoor durability
2. Standard Front-Lit Channel Letters Structure
Industrial front-lit channel letters use a modular multi-layer construction designed for strength, weather resistance, and uniform illumination. Each component works together to create a reliable illuminated sign suitable for long-term indoor and outdoor applications.
Core Components
High-transparency acrylic face designed to diffuse LED light evenly and eliminate hotspots.
Precision CNC-bent aluminum sidewalls that increase structural rigidity while preventing side light leakage.
Custom locking trim secures the face and returns while providing waterproof and dustproof protection.
Durable backing panel supports the structure and serves as the mounting surface for high-efficiency LED modules.
Key Advantages
- Uniform front illumination
- Weather-resistant construction
- Strong structural stability
- Long LED service life
- Suitable for storefront and commercial signage
3. Reverse Channel Letters Structure
Unlike front-lit signage, Reverse Channel Letters project light backward to create a sophisticated halo lighting effect. This reverse illumination system is commonly used for premium branding environments where aesthetics and architectural integration are priorities.
Core Components
Fabricated from stainless steel, galvanized steel, aluminum, brass, or copper to create a seamless and durable exterior.
LED modules project light toward the mounting surface, creating a soft illuminated halo around the letters.
Precision spacers maintain the ideal distance between the letters and the wall to achieve a consistent halo effect.
Key Advantages
- Elegant floating appearance
- Premium architectural aesthetics
- Daytime metal texture and nighttime illumination
- Suitable for luxury retail and corporate branding
- Excellent visual depth and dimensionality
4. How Is Reverse Channel Letters Pricing Calculated?
Every Reverse Channel Letters project is fully customized, meaning there is no fixed standard price. Project costs are determined by several manufacturing and engineering factors that directly affect material usage, labor requirements, and production complexity.
Main Cost Factors
Larger letters require more material, stronger internal structures, and additional fabrication time.
Special finishes such as brushed gold, mirror rose gold, titanium black, PVDF coating, and custom Pantone color matching increase production complexity.
Standard front-lit signs are generally more economical, while reverse halo-lit, front & reverse lit, RGB, and programmable lighting systems require additional components and assembly.
Thin strokes, script fonts, sharp corners, and intricate logos demand more CNC processing, welding, and LED placement, increasing manufacturing time.
Factors That Influence Pricing
- Letter height and depth
- Material selection
- Surface finish requirements
- Lighting configuration
- Installation method
- Logo complexity
- Quantity ordered
- Project location and shipping requirements
Direct Company Contact
Send us your vector files or architectural drawings. Our engineering team will provide a comprehensive structural analysis and quotation.
Nick
+86 180 6521 8129
nick@pdlsignage.com
Devin
+86 150 8035 0187
devin@pdlsignage.com
