CUSTOM INFINITY MIRROR TUNNEL
Built for Retail, Exhibitions & Immersive Spaces
Custom mirror systems, cabinet structures, mounting options and RGB or DMX control for commercial projects.
CUSTOM INFINITY MIRROR TUNNEL MANUFACTURER
As a direct factory, PDL Sign supports full-scale manufacturing for your custom infinity mirror tunnel. We manage everything from custom size specifications and robust cabinet structure engineering to advanced LED control methods.
Our engineering team provides detailed mounting drawings, ensures strict sample approval processes, and handles secure project shipment globally. We are built to serve wholesale distributors and large-scale commercial installers.
Product Types by Shape and Installation Form

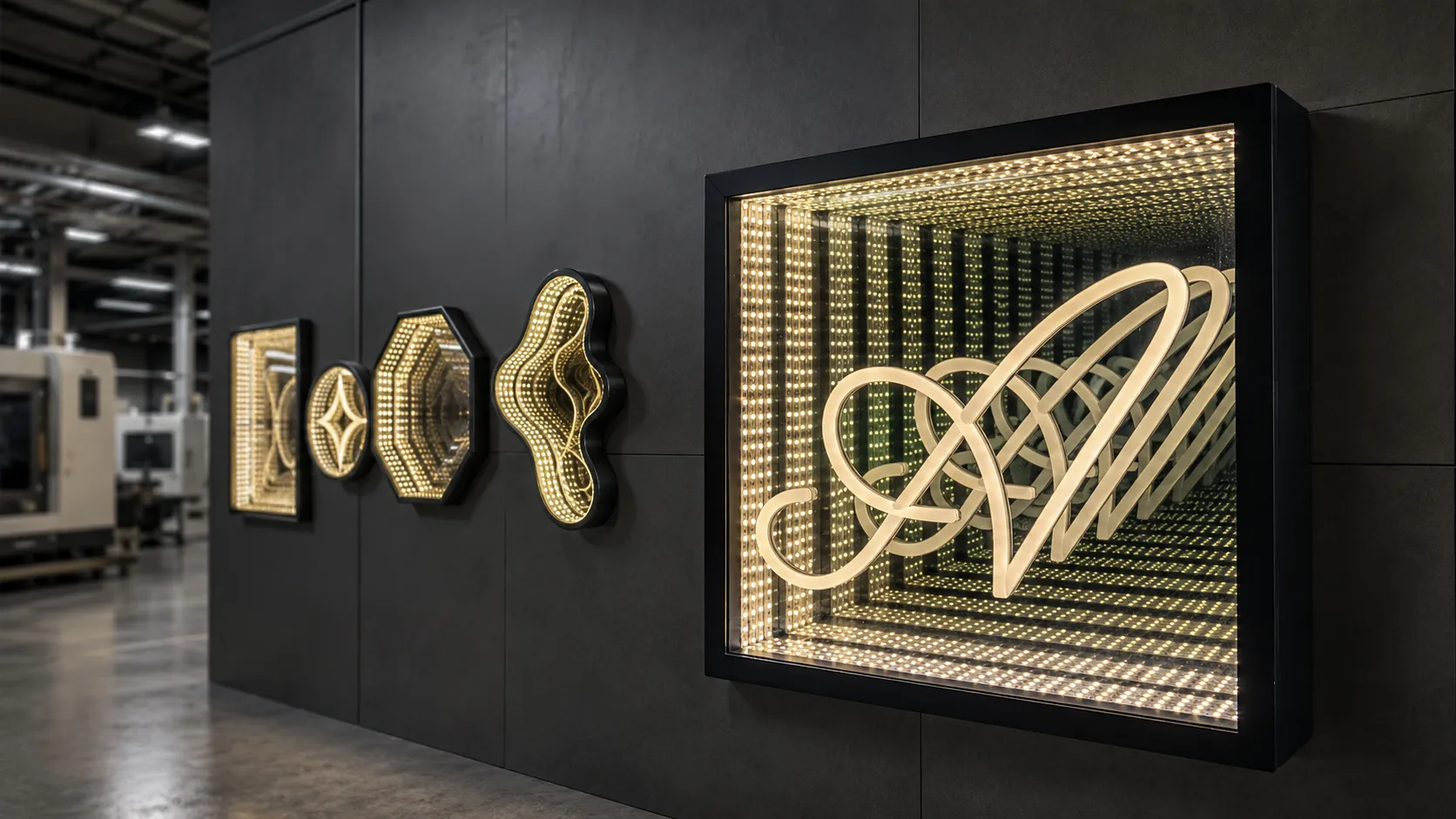

Wall Mounted Infinity Mirror Panel
Square, rectangular, round, octagonal and custom irregular shapes. Available with embedded logo, letters, graphics or cartoon-style patterns.

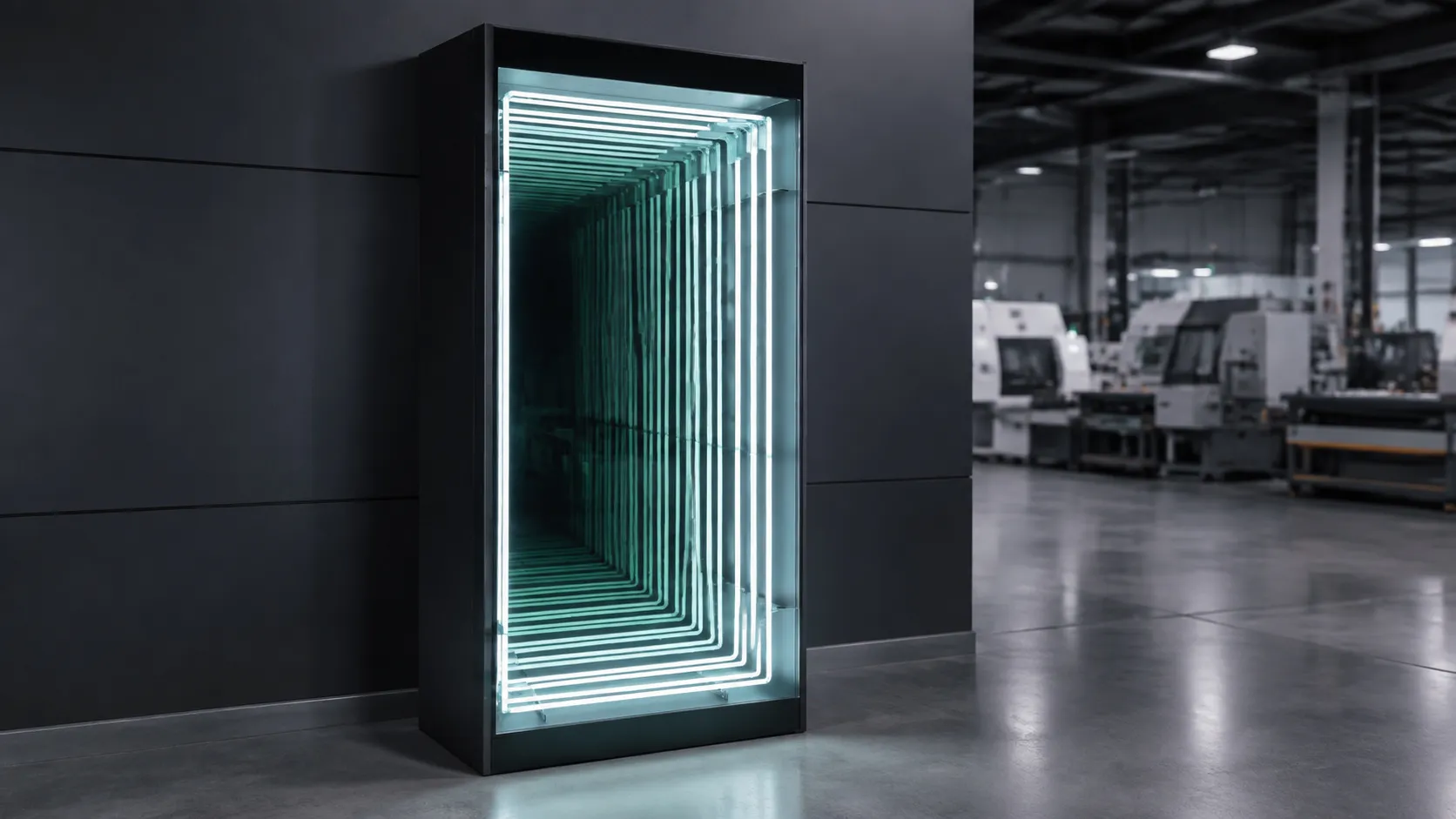

Freestanding 3D Infinity Mirror Cabinet
Vertical cabinet-style infinity mirror unit for exhibitions, photo spots and commercial display areas. A larger internal cavity creates a stronger tunnel immersion effect.

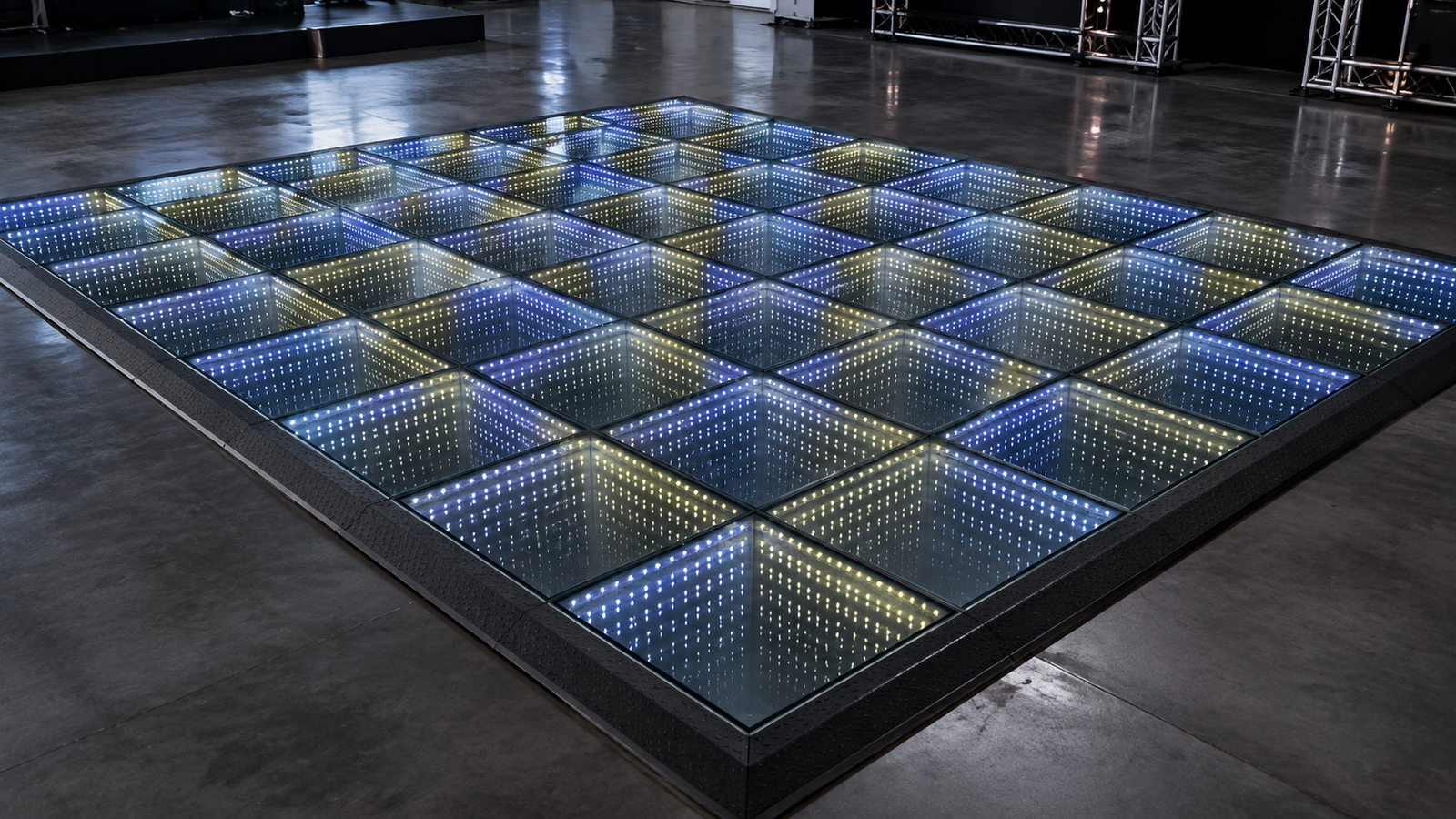

Infinity Mirror Floor Tile
Ground-installation type for stages, commercial entertainment spaces and internet-famous venues. A load-bearing protective structure is required for foot traffic and impact resistance.

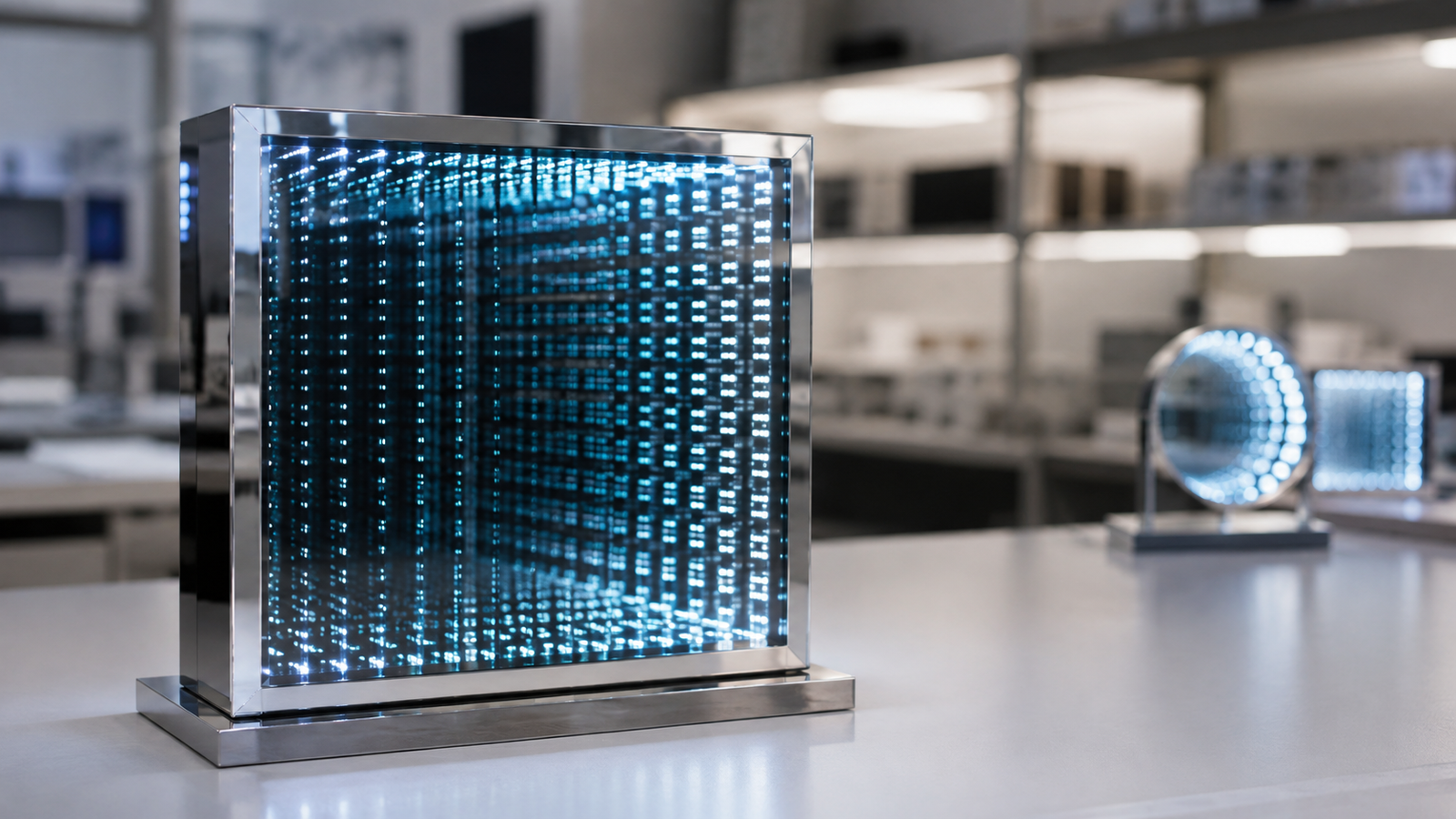

Tabletop LED Infinity Mirror Light
Compact desktop infinity mirror lights for gifts, night lights, decorative displays and sensory-room teaching aids. Round, square and custom shapes are available.

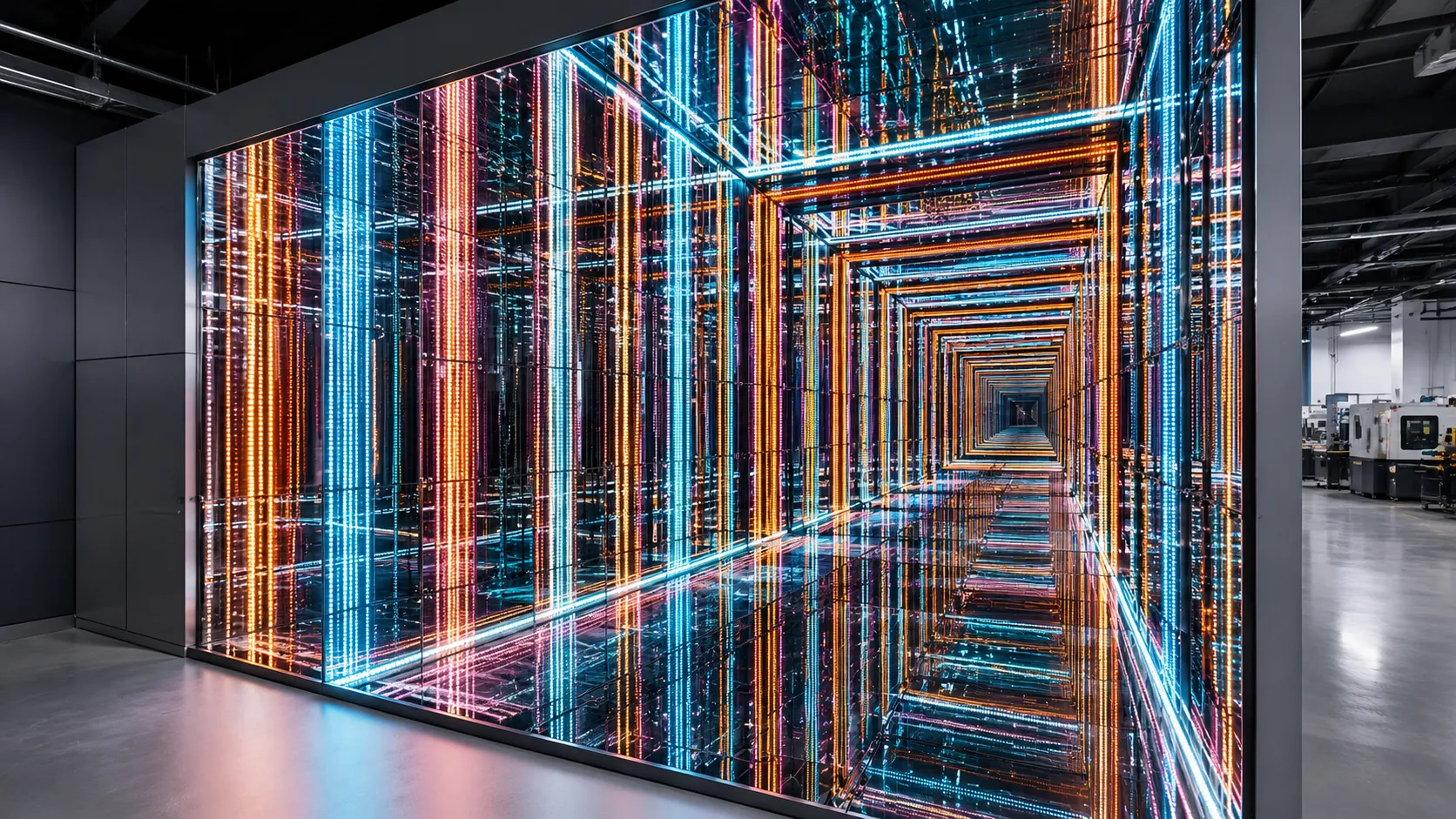

Full-Size Infinity Mirror Tunnel Room
Large-scale engineering installation using multi-mirror assembly to build a complete immersive tunnel space for exhibitions, entertainment venues and commercial attractions.

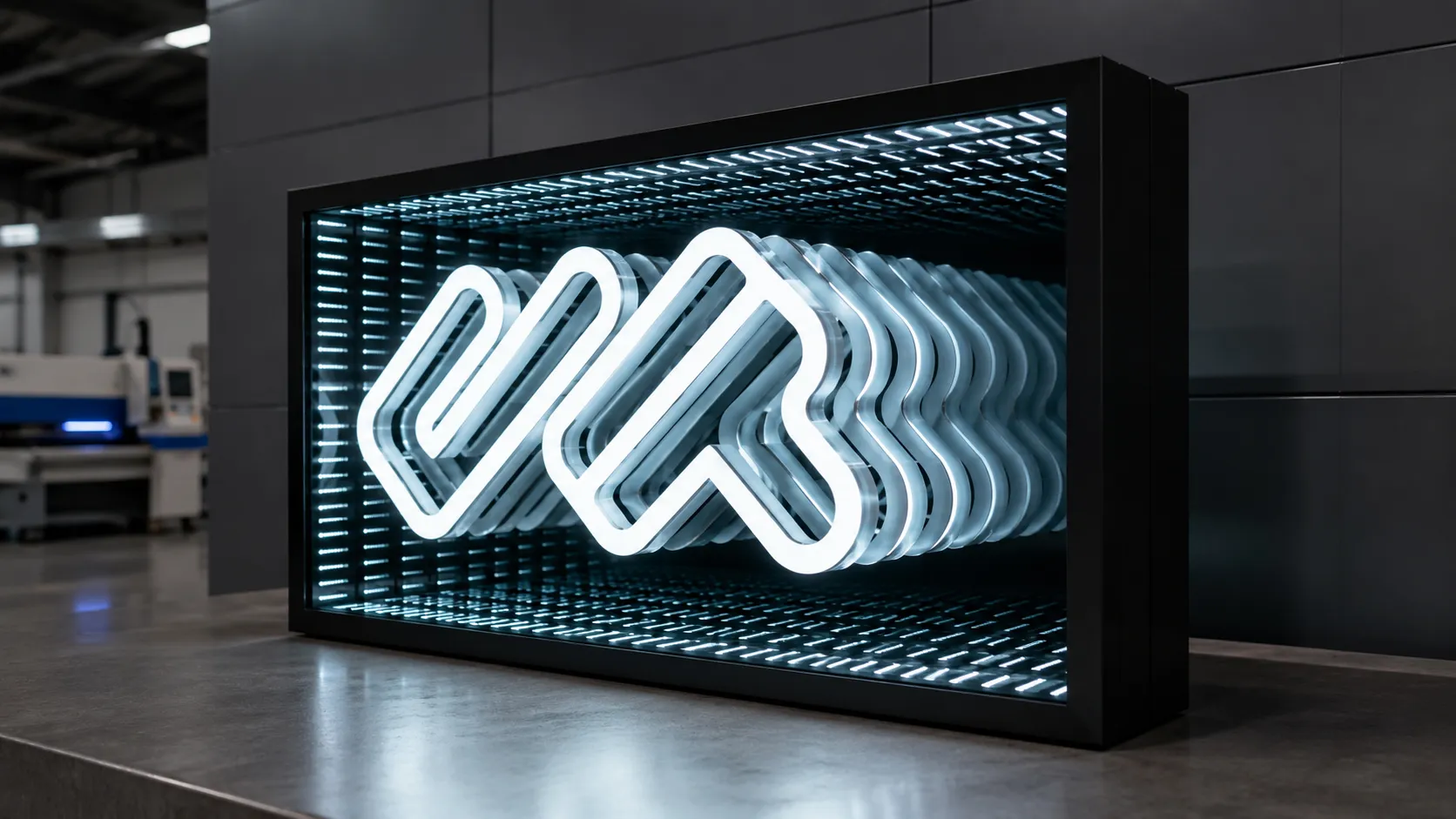

Infinity Mirror Letters & Signs
Infinity mirror structure integrated with channel letters, logo signs or neon-style lighting for custom commercial signage projects.
Two-Way Mirror and Rear Mirror Material Options

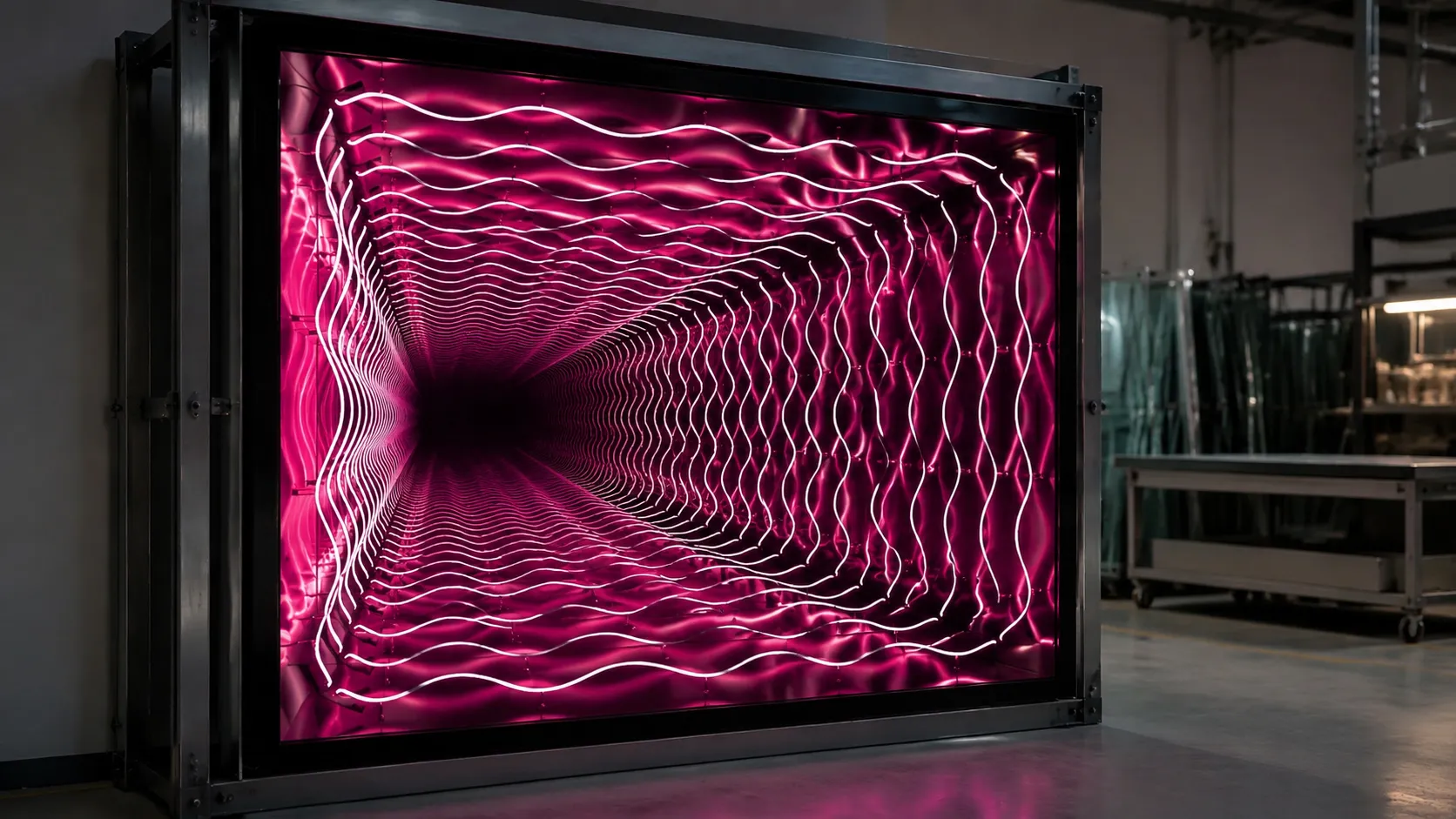

Tempered Glass Two-Way Mirror
High-end commercial option with sharp imaging, low distortion, high reflectivity and stable temperature resistance. Copper-free silver mirror can be selected to reduce oxidation and blackening risk. Suitable for large-size projects, but heavier and requires careful packaging.

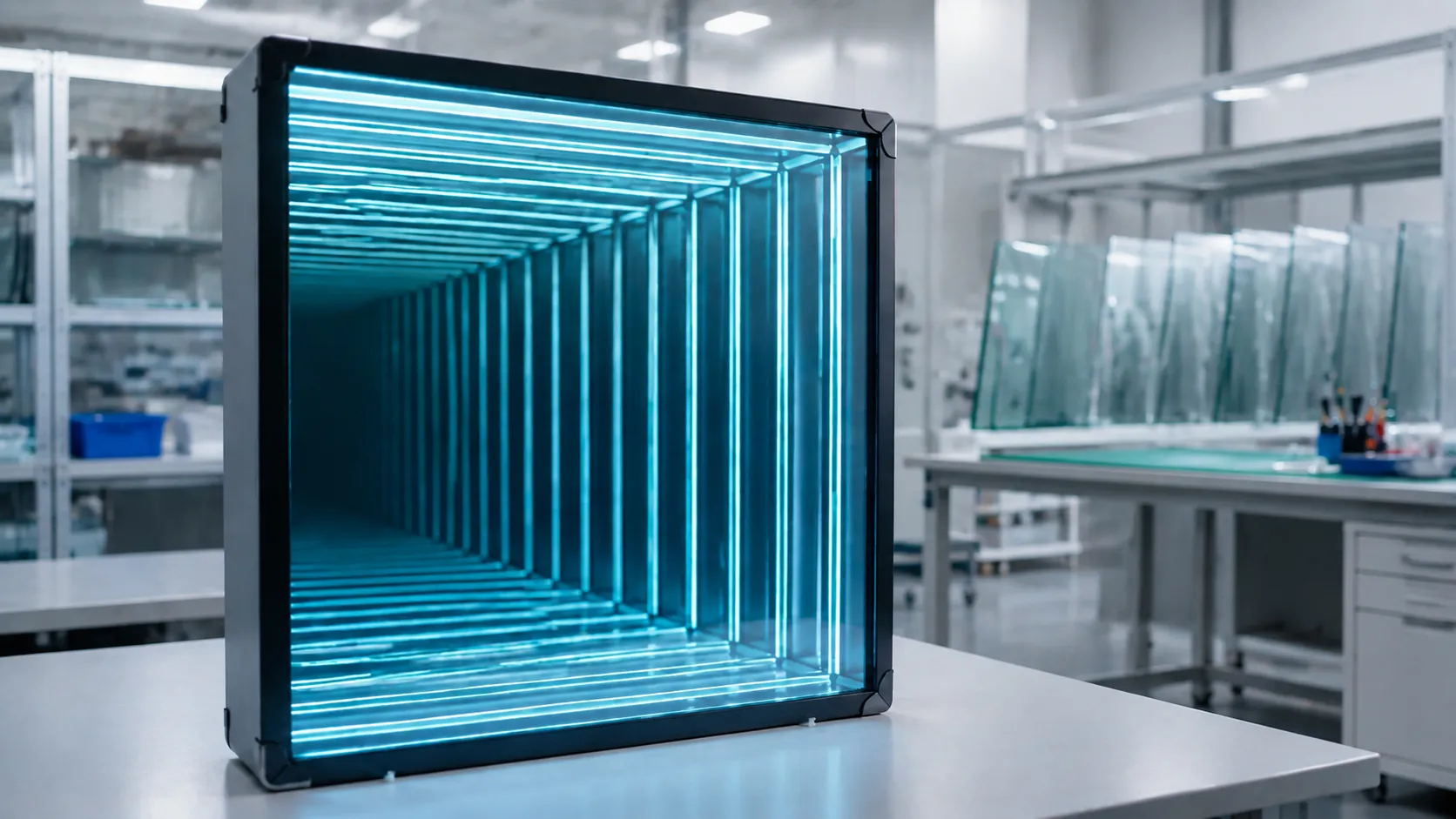

Acrylic Two-Way Mirror PMMA
Lightweight and shatter-resistant option for sensory rooms, portable products and medium-size indoor displays. Oversized acrylic panels may have slight deformation and are easier to scratch than glass.

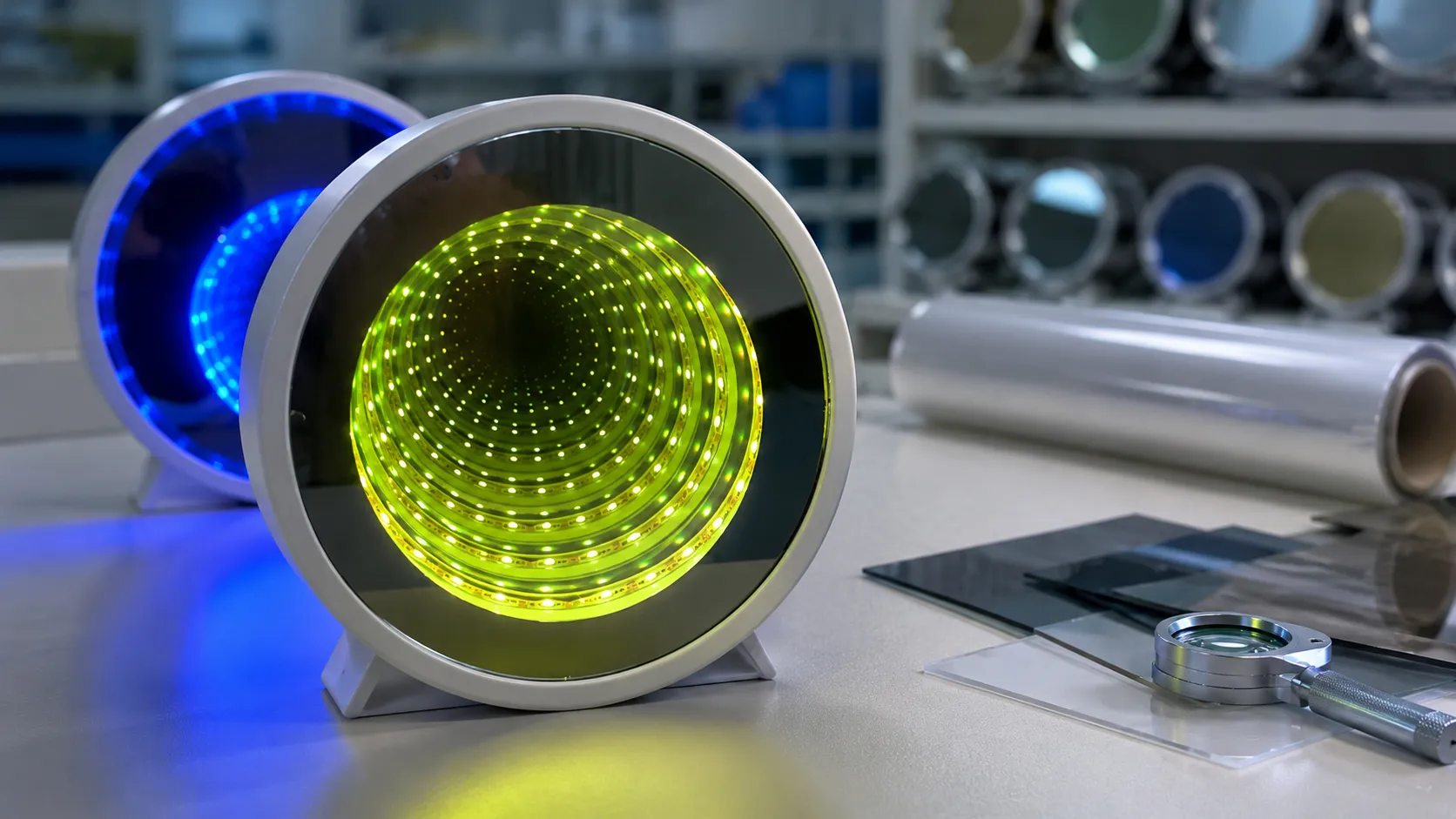

PET One-Way Mirror Film
Economical option applied to clear glass or acrylic. Suitable for low-cost small-size products, but reflection uniformity, bubbling risk and long-term durability should be evaluated before commercial use.
Rear Mirror Options
Tempered silver glass mirror and acrylic silver mirror sheet are commonly used as the rear reflective layer to maximize the tunnel depth effect.
Cabinet Material Options for Commercial Projects

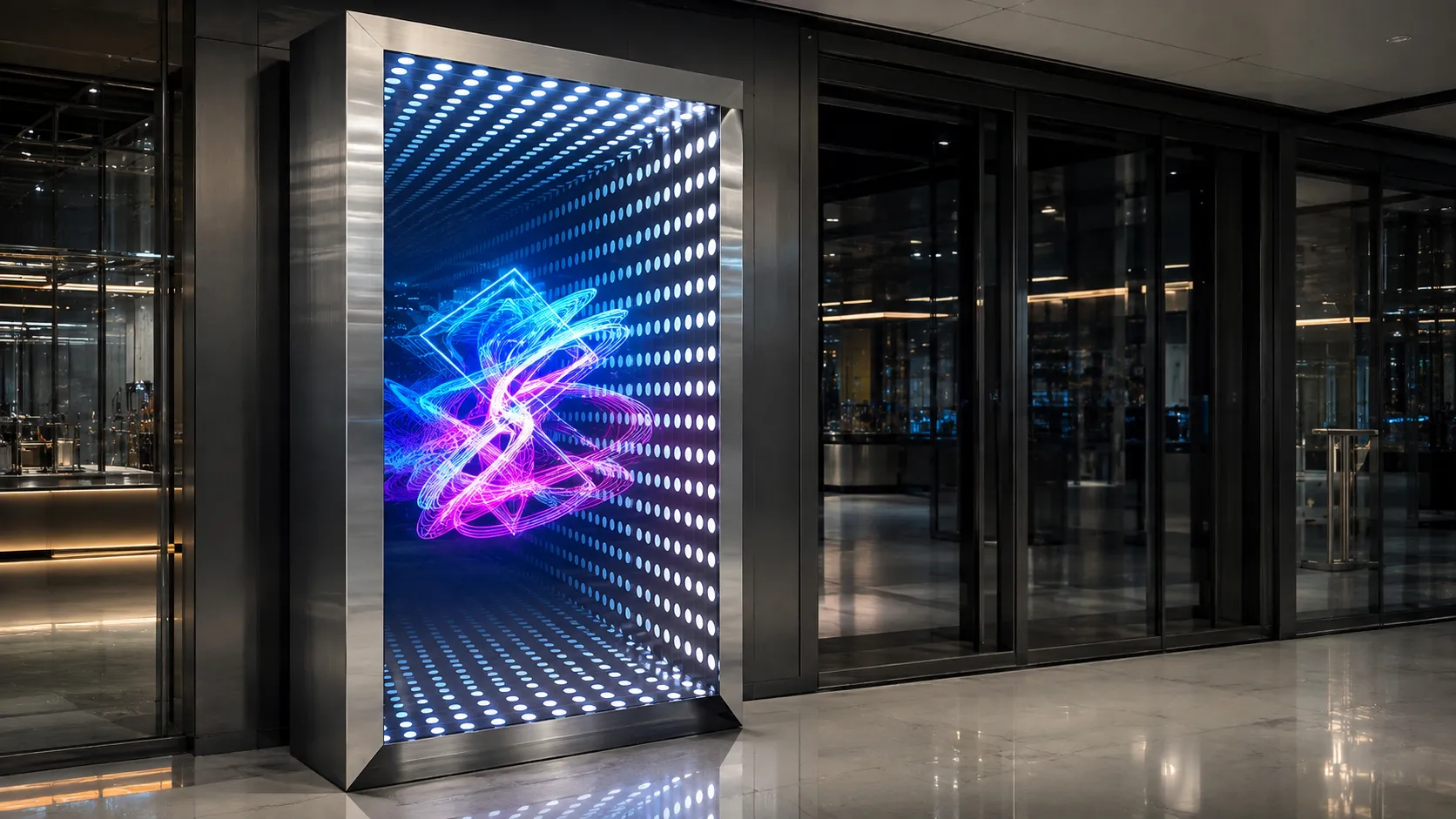

Stainless Steel Cabinet
Suitable for commercial bars, KTV venues, exhibition spaces and semi-outdoor projects. Available in brushed, mirror, black titanium and other decorative finishes. 304 stainless steel is commonly used for commercial environments.

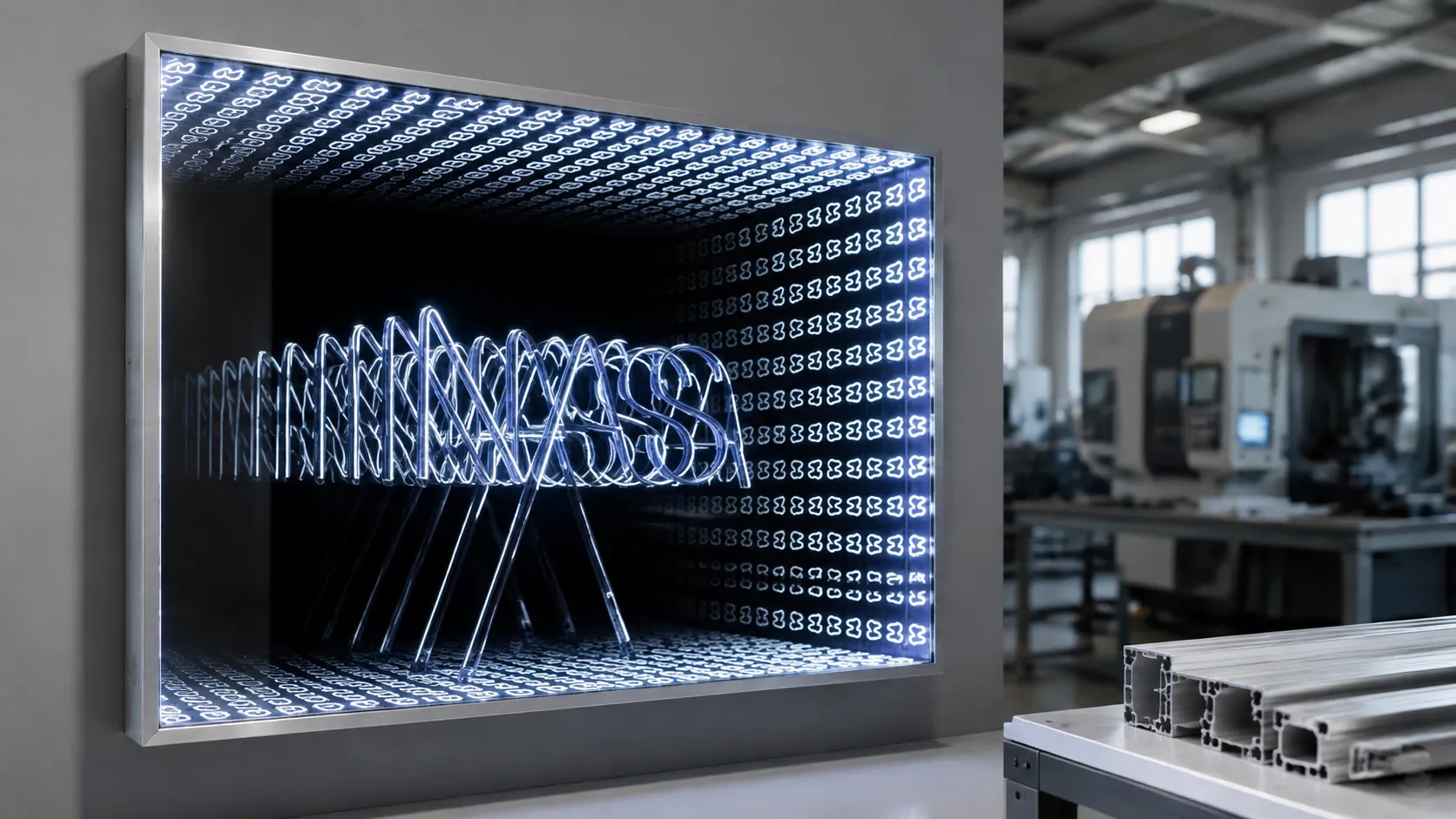

Aluminum Alloy Cabinet
Lightweight cabinet material with anodized or coated surface options. Suitable for wall-mounted panels, commercial light boxes and repeat-order production.

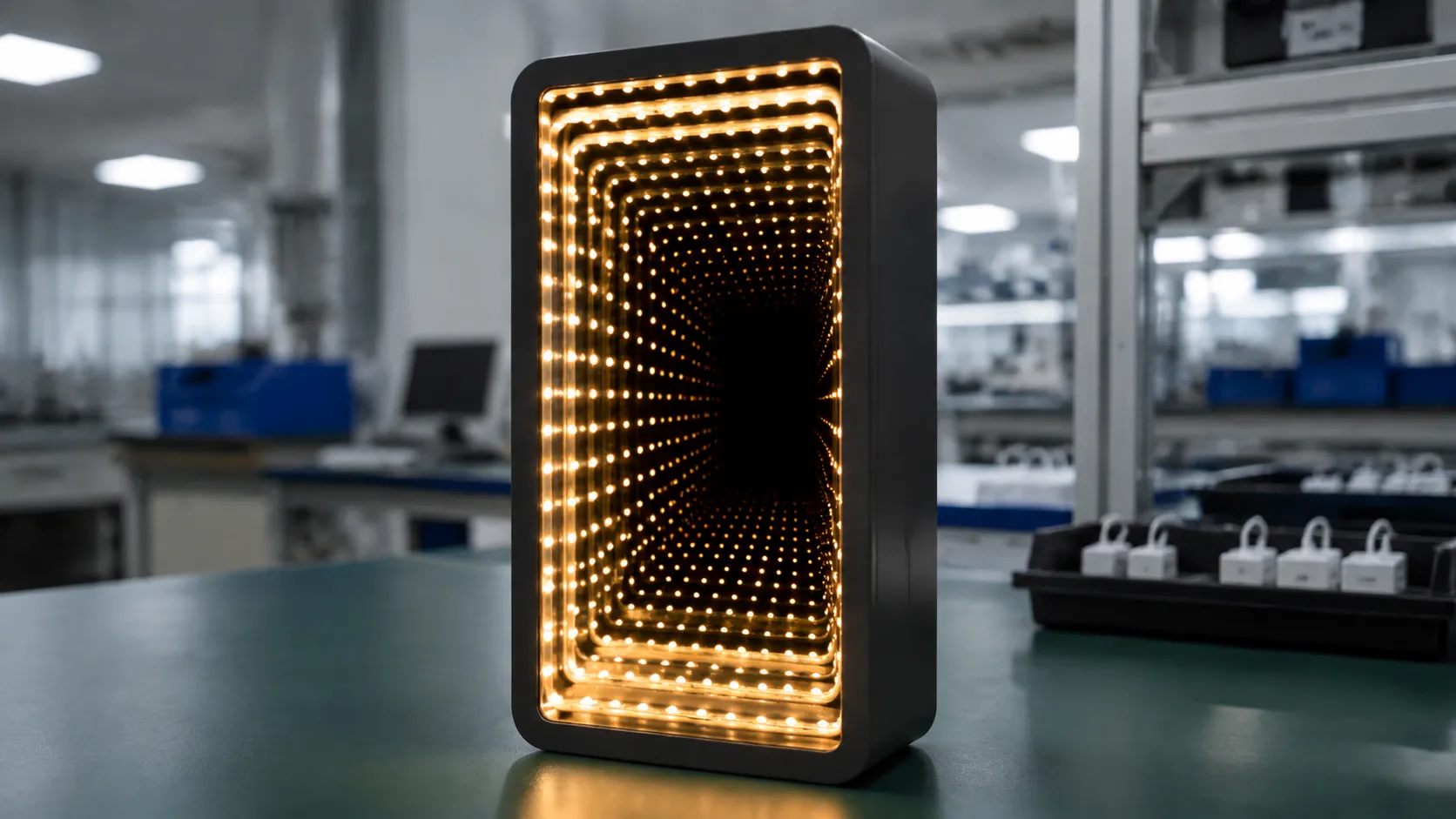

PVC / ABS Plastic Cabinet
Cost-sensitive option for indoor desktop models, small ornaments and home-use infinity mirror lights.

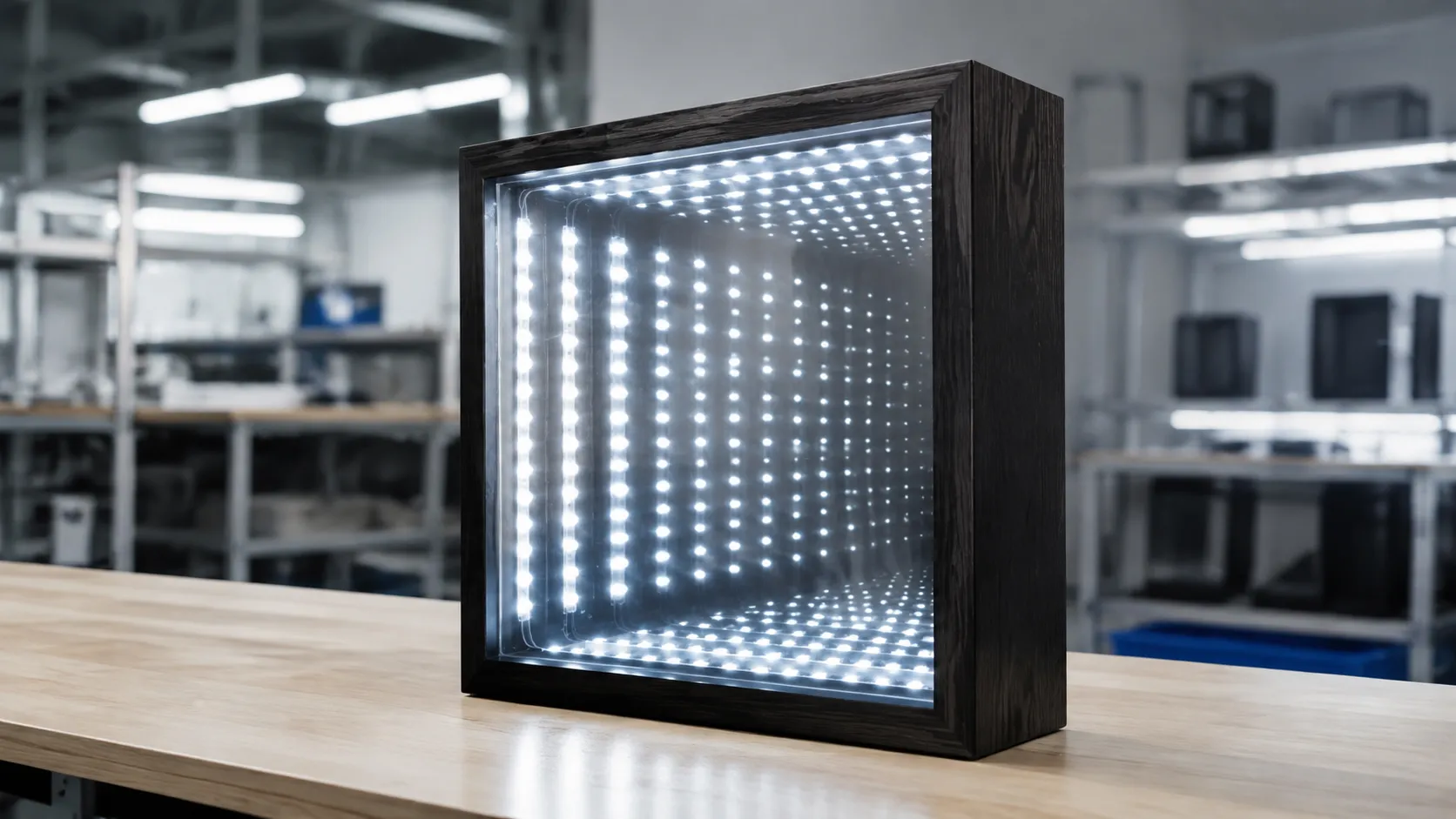

Wood / MDF Cabinet
Used for home interior decoration and warm-style indoor display projects. Recommended for indoor applications only.

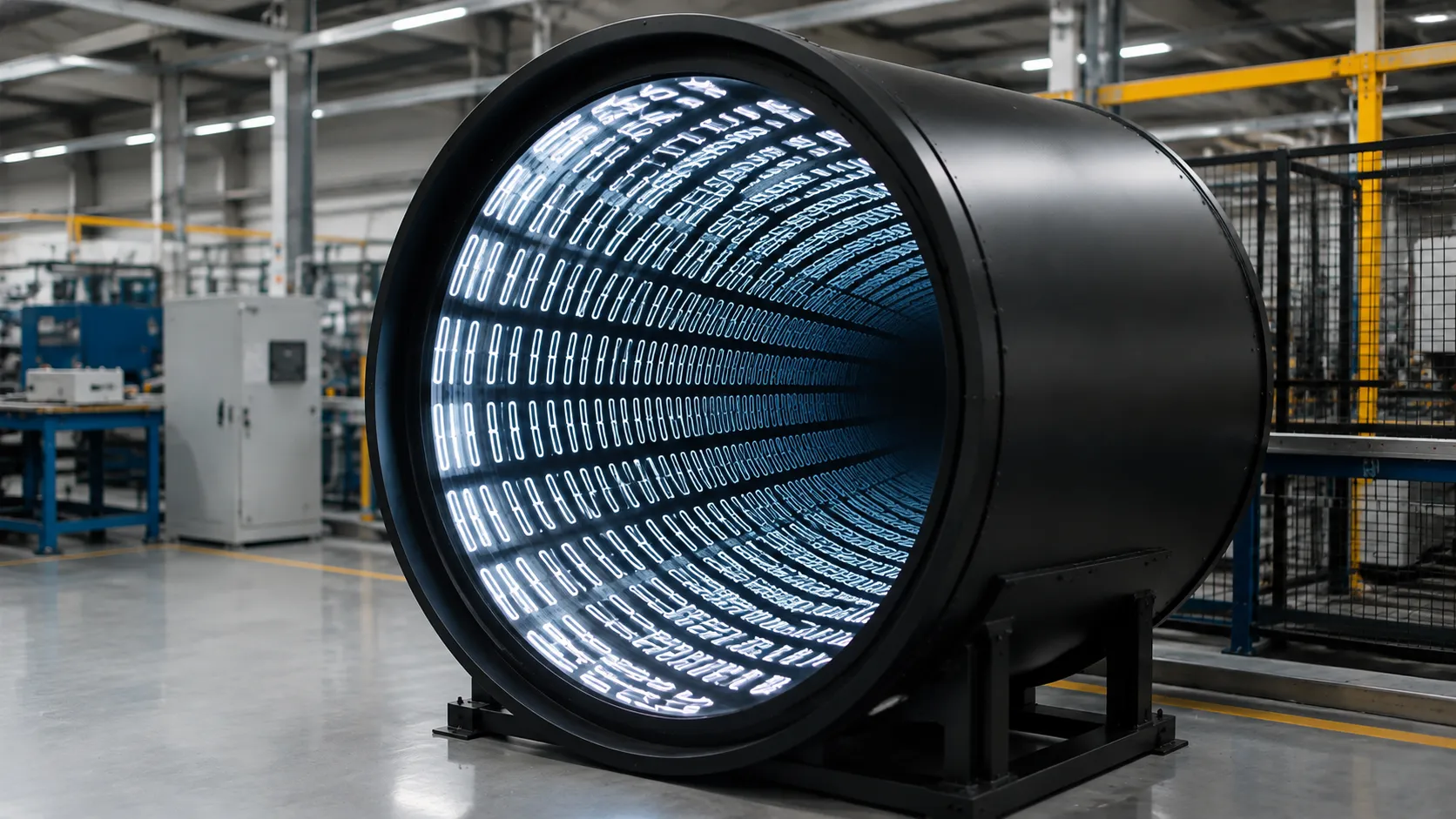

Spray-Painted Iron Cabinet
Practical option for large engineering cabinets where budget control and structural strength are important. Surface treatment should be selected according to the project environment.
RGB LED, Addressable LED and DMX Control Options

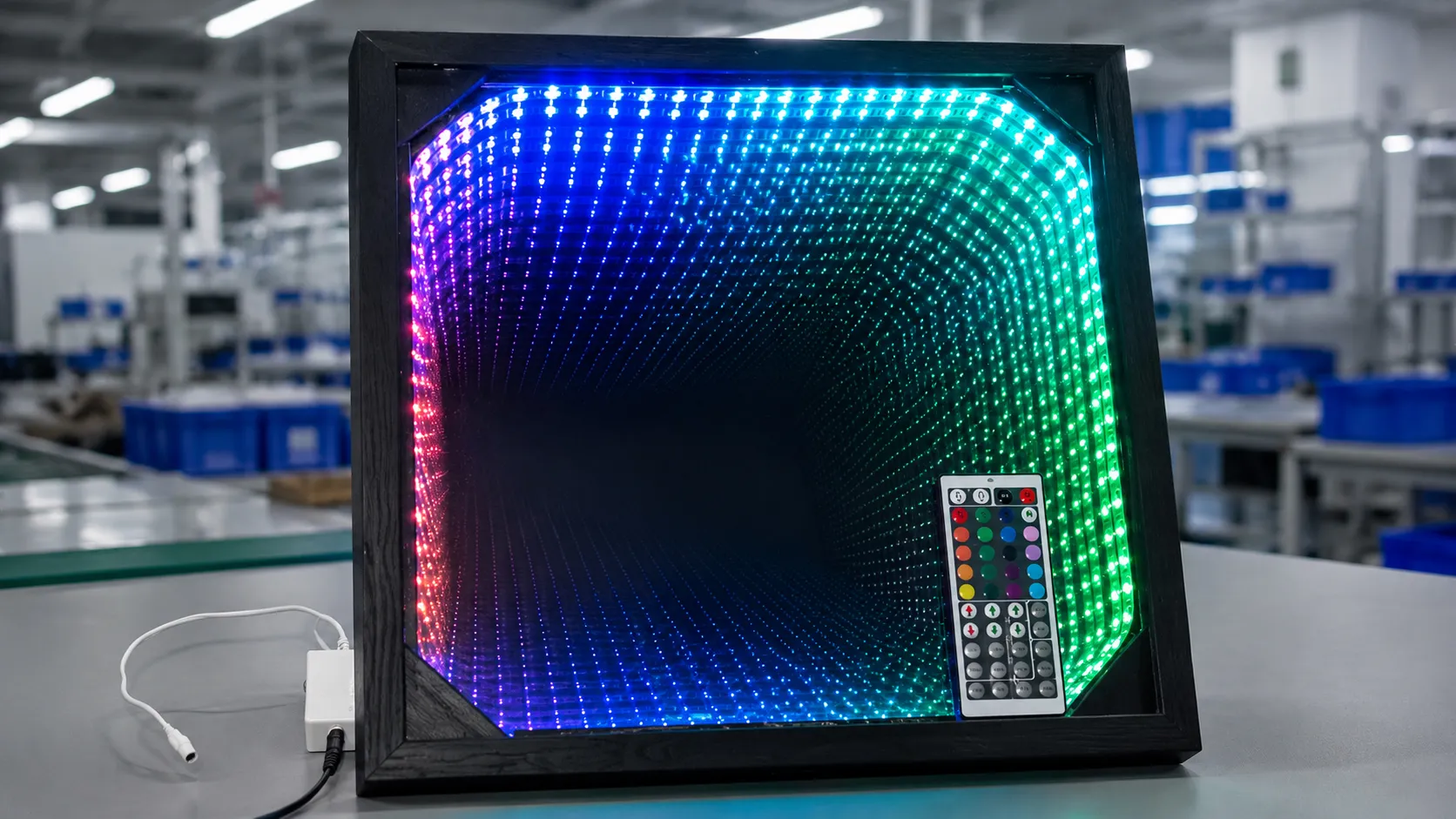

Standard RGB LED Strip
Basic color-changing option with remote control, static colors and preset dynamic effects. Suitable for simple indoor decorative infinity mirror products.

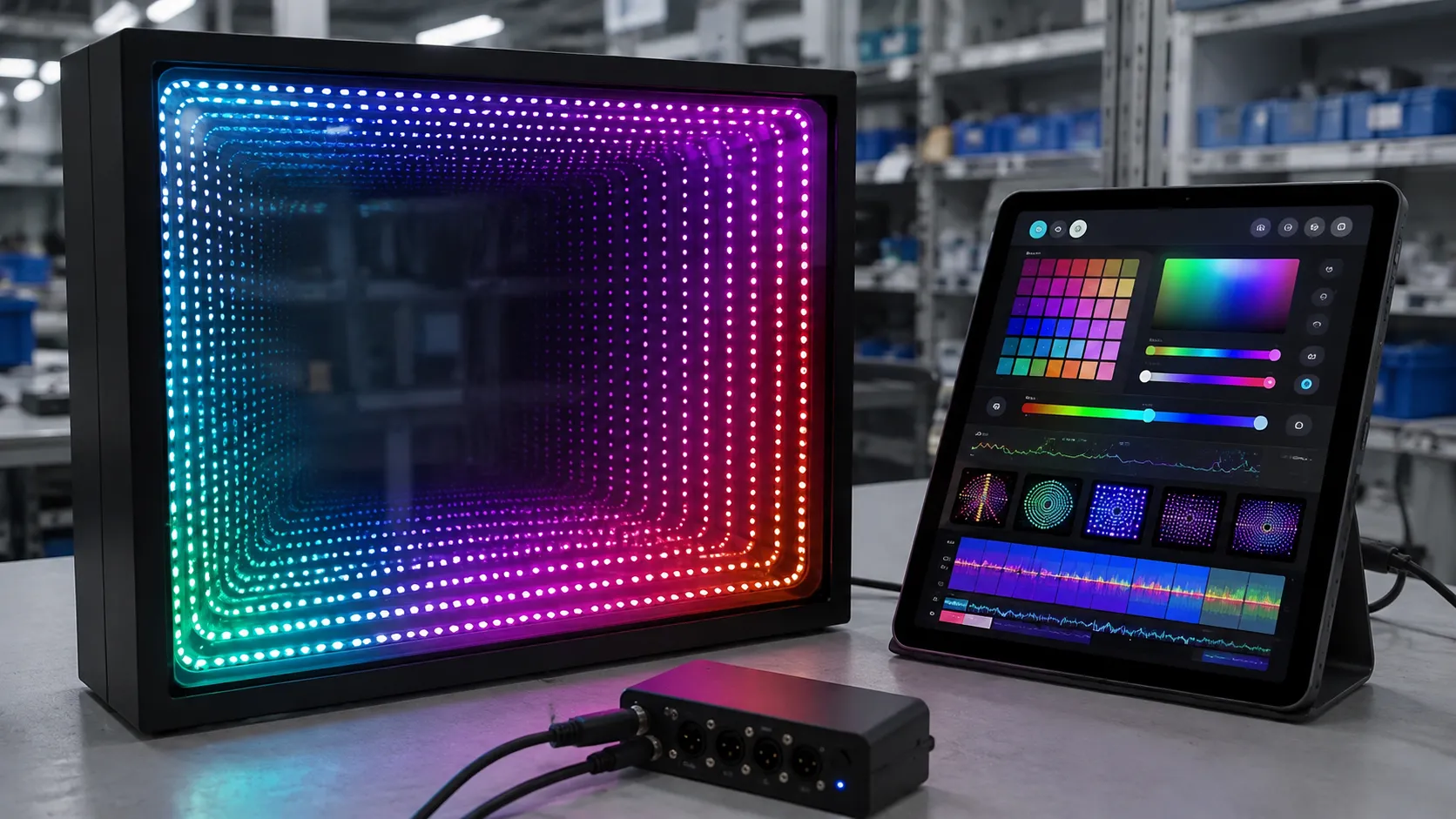

Addressable RGB WS2812B LED
Pixel-by-pixel control for flowing light, chasing effects and custom animations. Compatible with controller, APP and DMX512 systems, making it suitable for exhibition halls and internet-famous commercial projects.

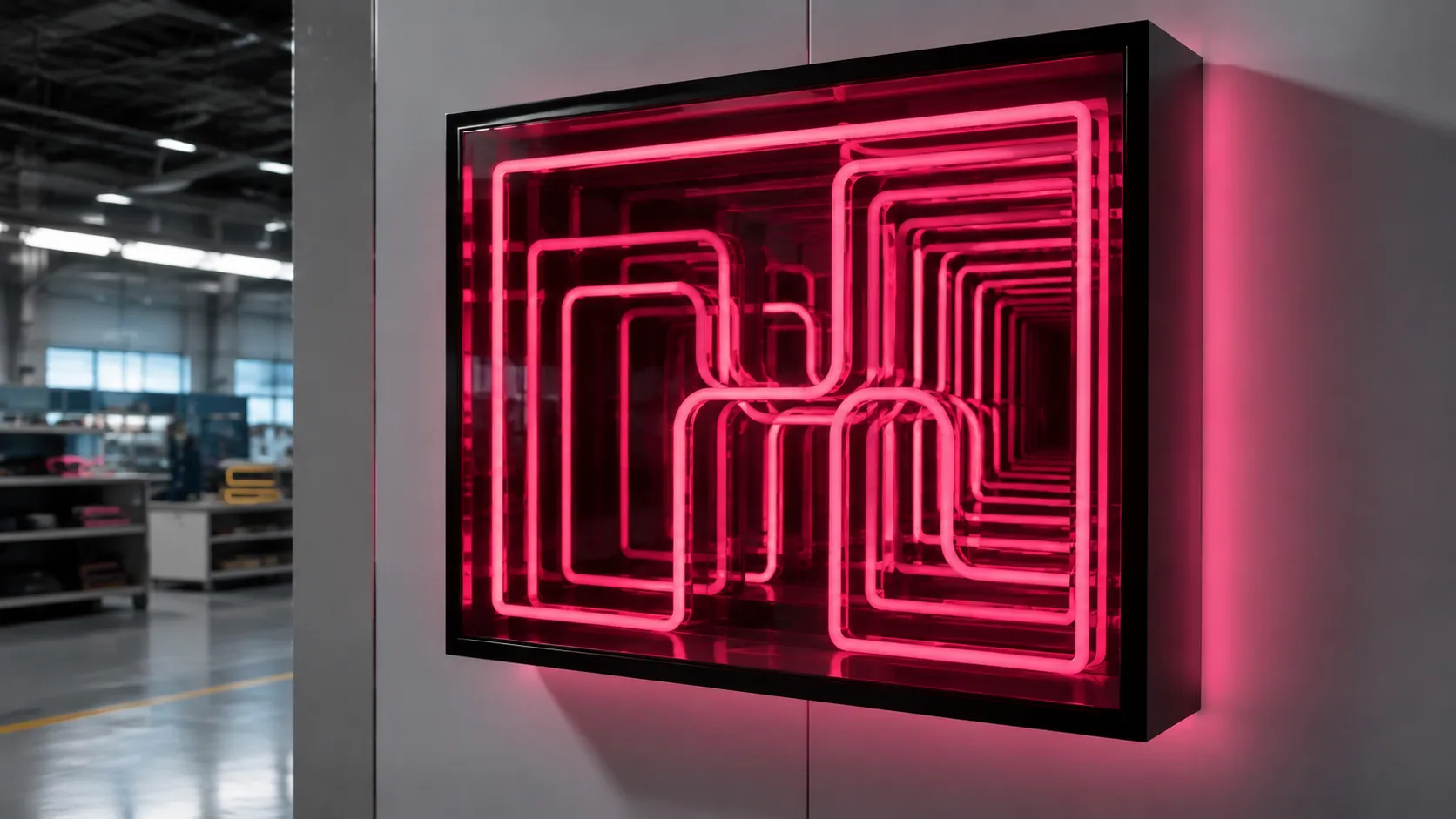

Silicone Neon Light Strip
Used for neon-mirror combinations, outline patterns, letters and custom graphic effects. It creates a stronger visual atmosphere for branded display and signage projects.
Power Supply Modes
DC12V / DC24V low-voltage adapter, battery-powered supply for small desktop units, and external DMX console for large-scale commercial projects.
Control Modes
IR remote, RF wireless control, Bluetooth / Wi-Fi APP, music sync and DMX console control.
Wall Mounted, Recessed, Freestanding and Suspended Installation

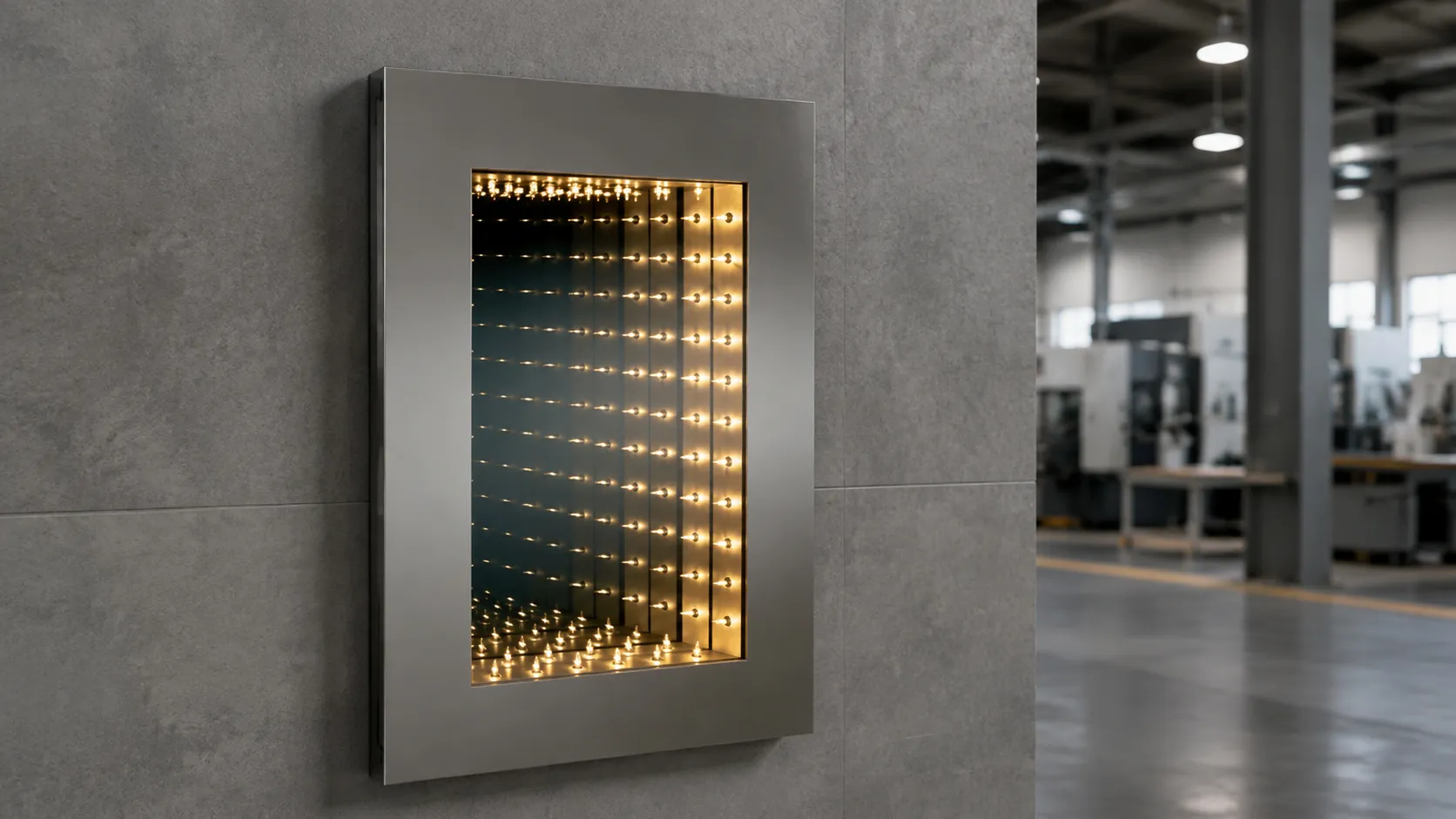

Wall Mounted
Wall installation for shops, bars, entertainment venues, exhibition booths and decorative commercial spaces.

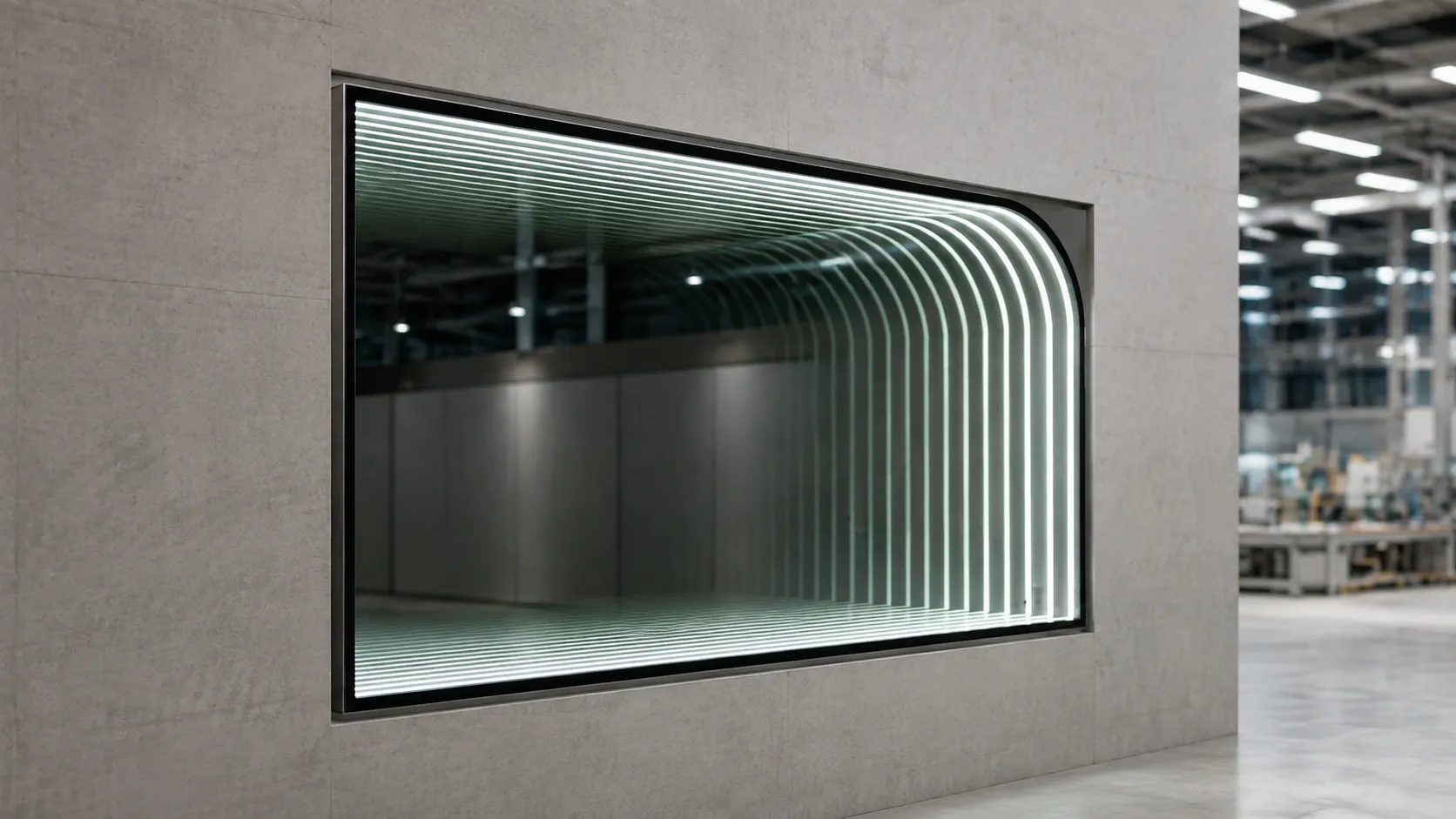

Recessed Embedded
Flush-mounted into wall or ground with a pre-cut slot. Suitable for projects that require a cleaner architectural finish.

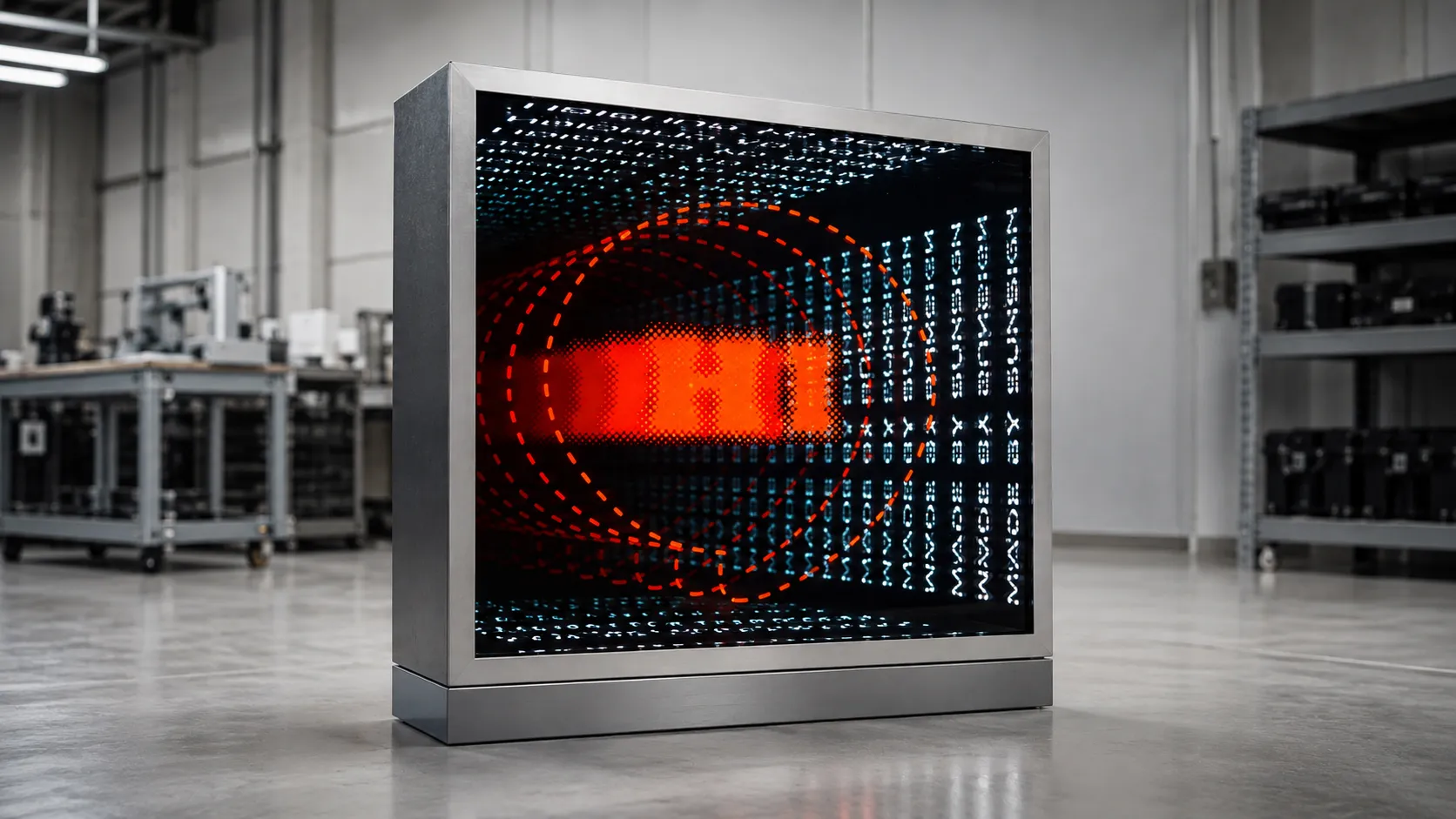

Freestanding
Floor-standing unit with integrated base, suitable for exhibitions, photo spots, retail display areas and temporary commercial events.

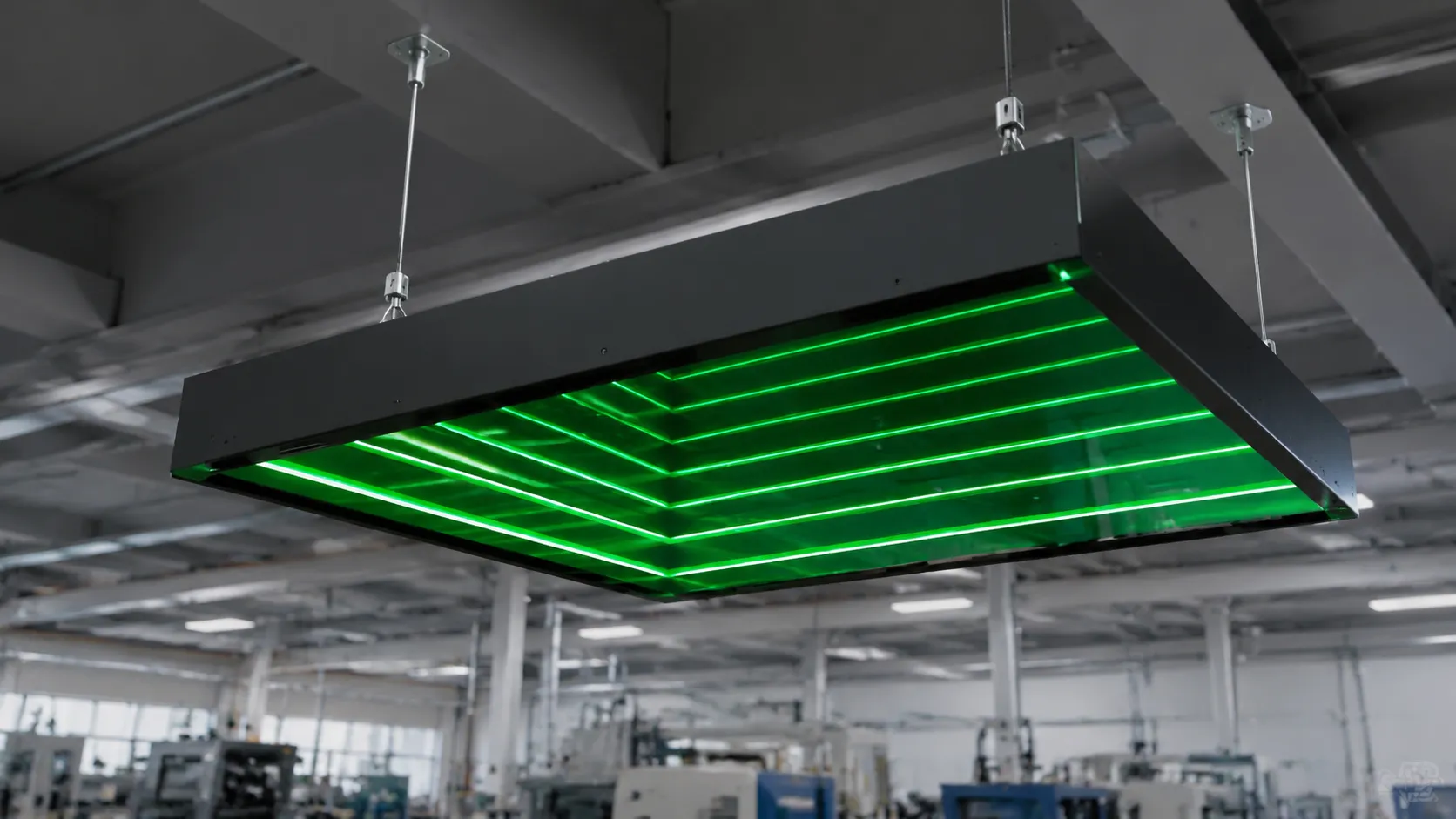

Ceiling Suspended
Hanging installation from ceiling structure, used for creative commercial decoration, themed venues and overhead visual displays.
Indoor, Semi-Outdoor and Outdoor Infinity Mirror Tunnel Options

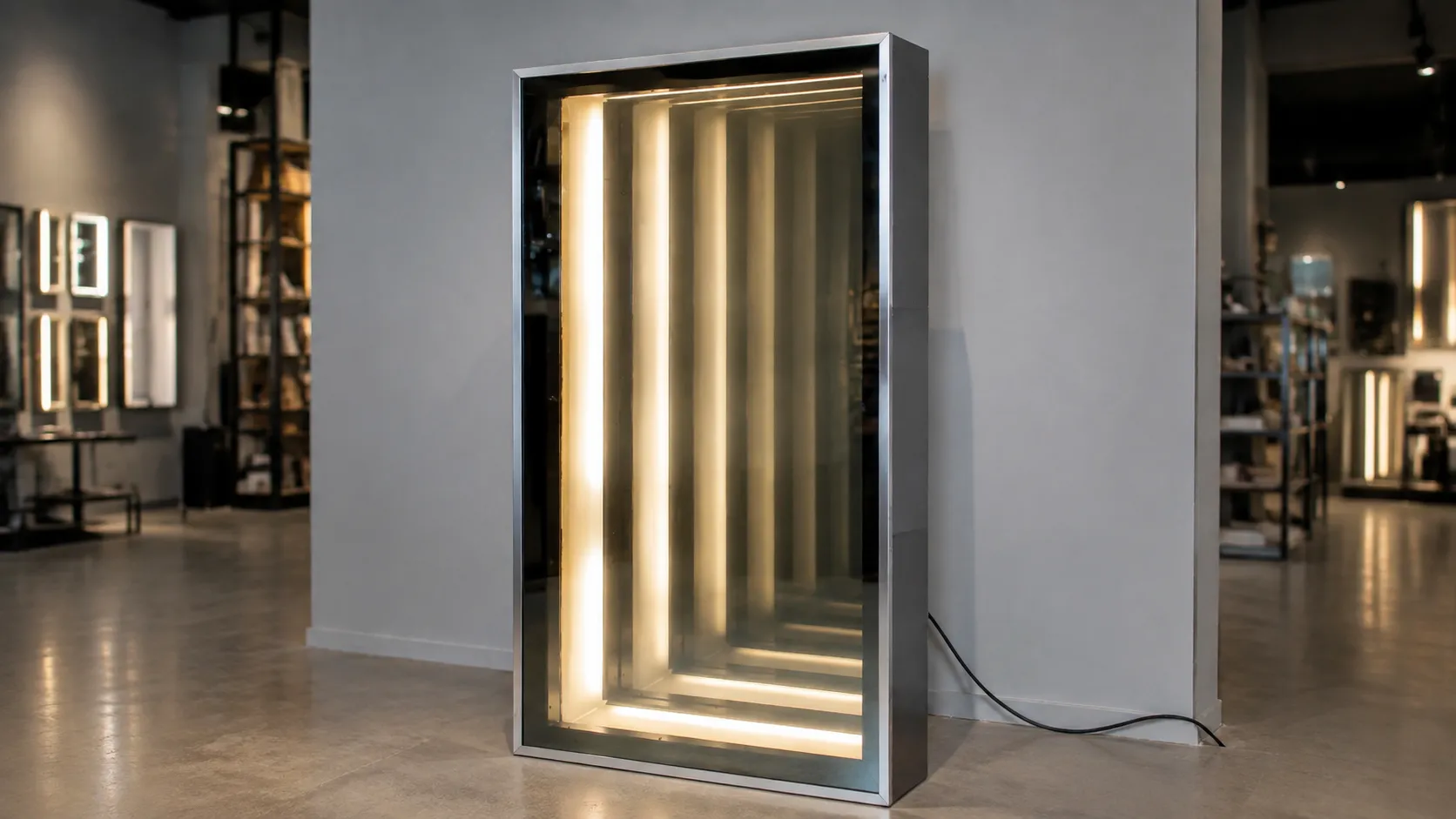

Indoor IP20-IP30
For bars, retail stores, exhibition halls, home decor and indoor entertainment venues. This is the most common application range for infinity mirror tunnel products.

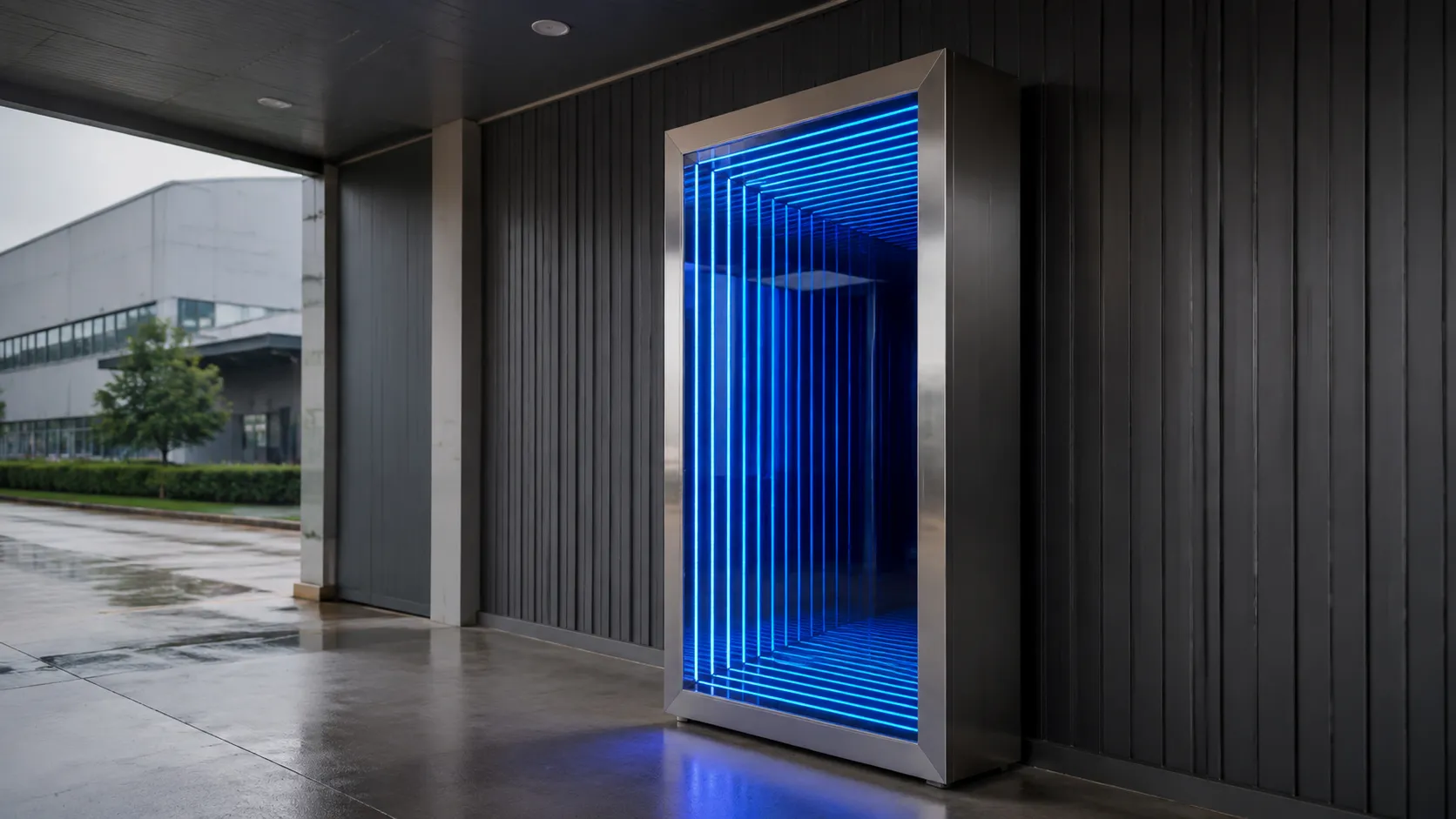

Semi-Outdoor IP54
Suitable for eave-covered areas and rain-resistant commercial spaces. Direct sunlight and long-term water exposure should be avoided. Stainless steel cabinet and tempered glass are recommended.

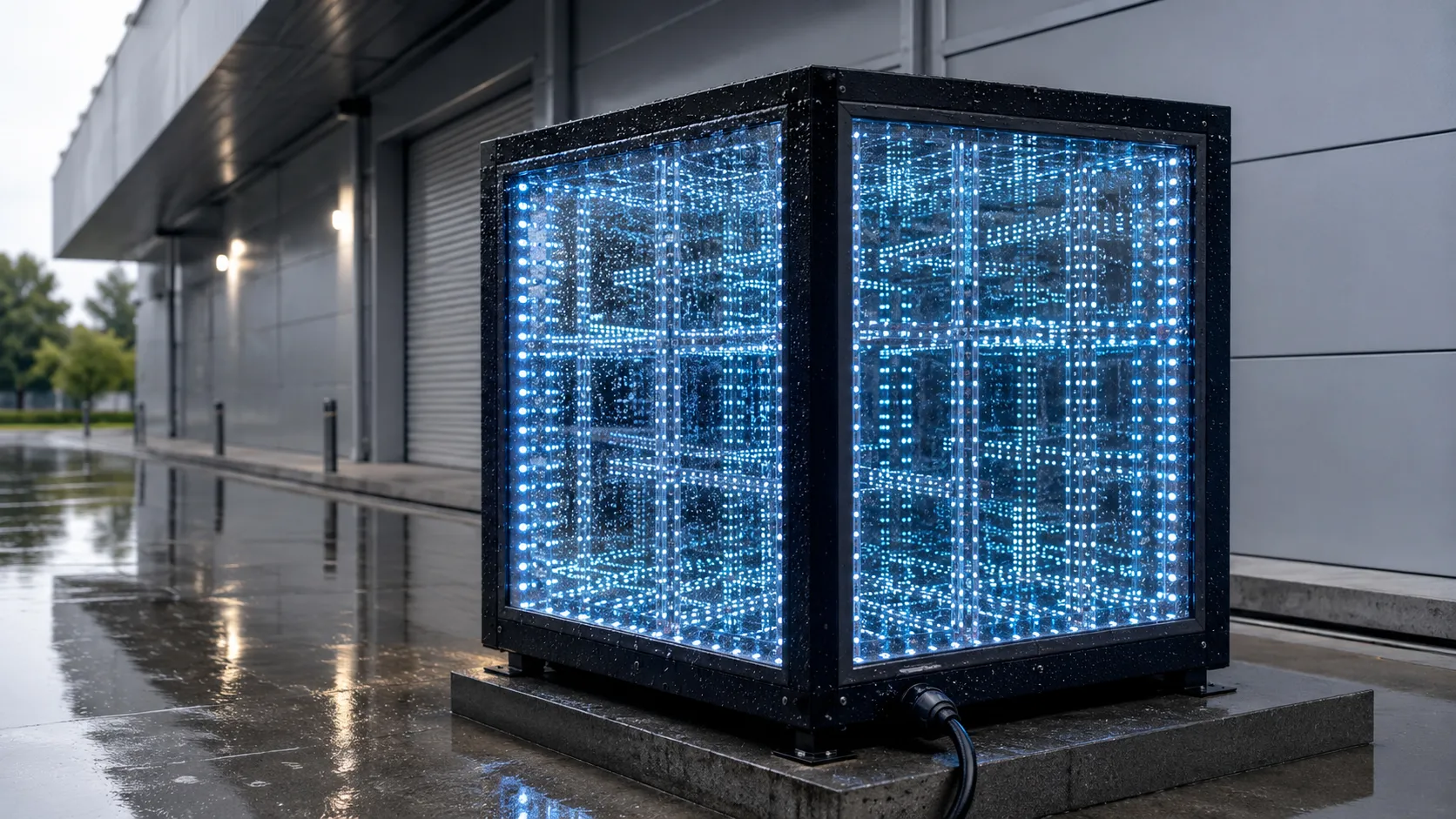

Outdoor IP65
Fully waterproof-treated structure for outdoor signage and exterior commercial projects. Cost is higher, so it is usually selected for projects with clear outdoor durability requirements.
Cavity Depth and Visual Tunnel Effect

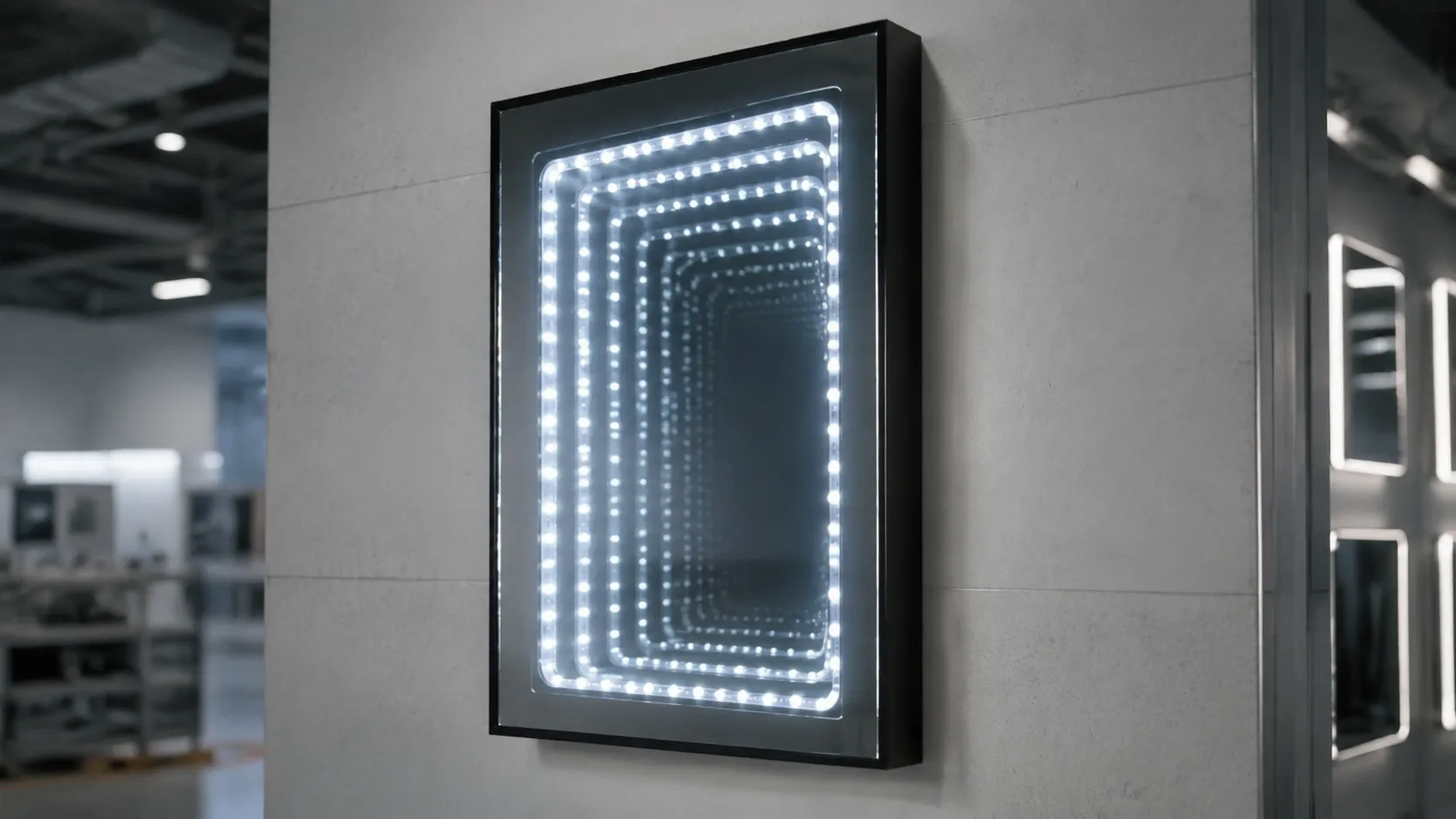

Shallow Cavity 20-40mm
Slim light-box structure with a soft tunnel effect. Suitable for wall-mounted decorative panels and compact indoor display products.

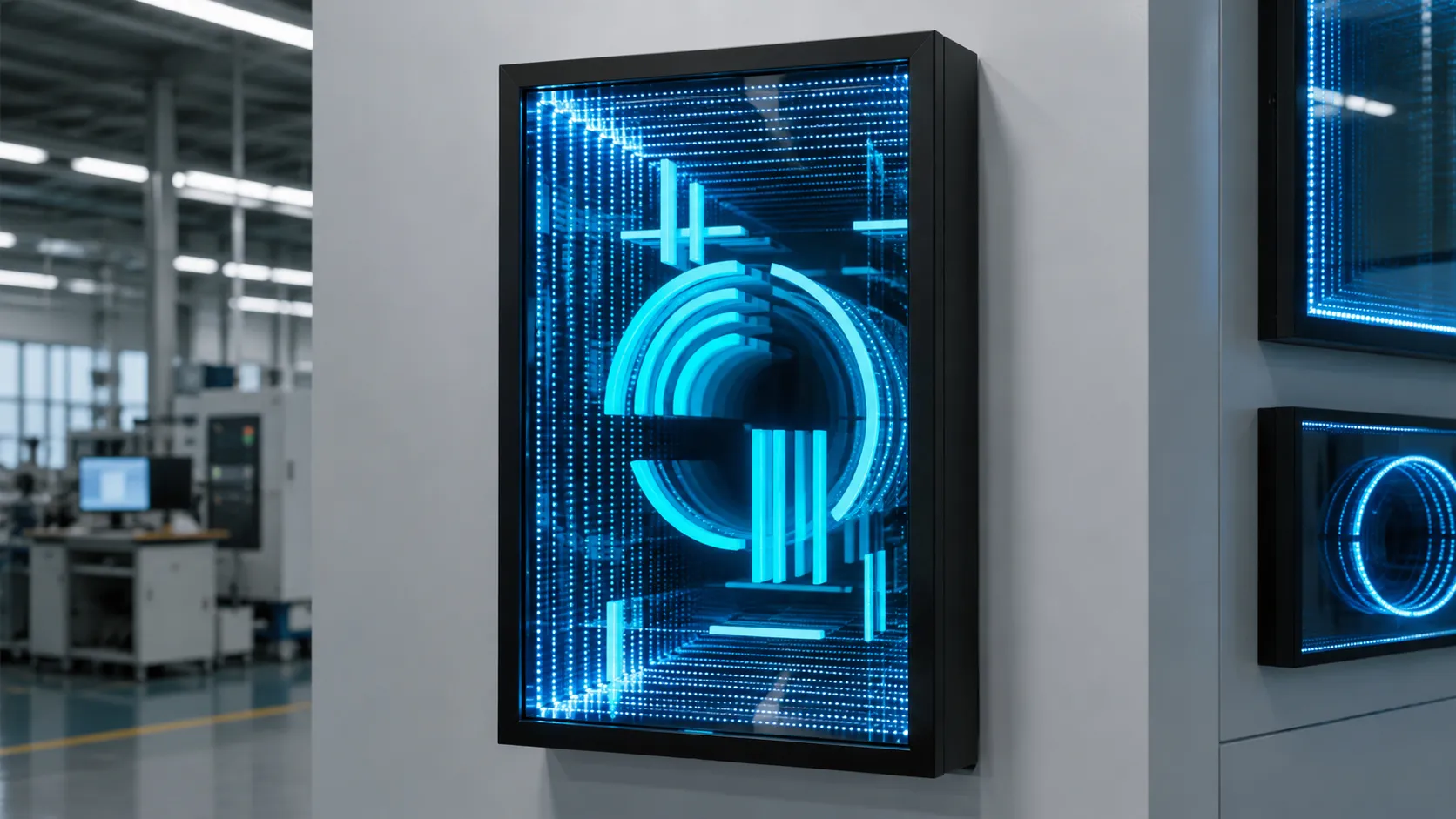

Medium Cavity 50-100mm
General commercial standard with balanced layering and visual depth. Suitable for most wall-mounted and cabinet-style infinity mirror projects.

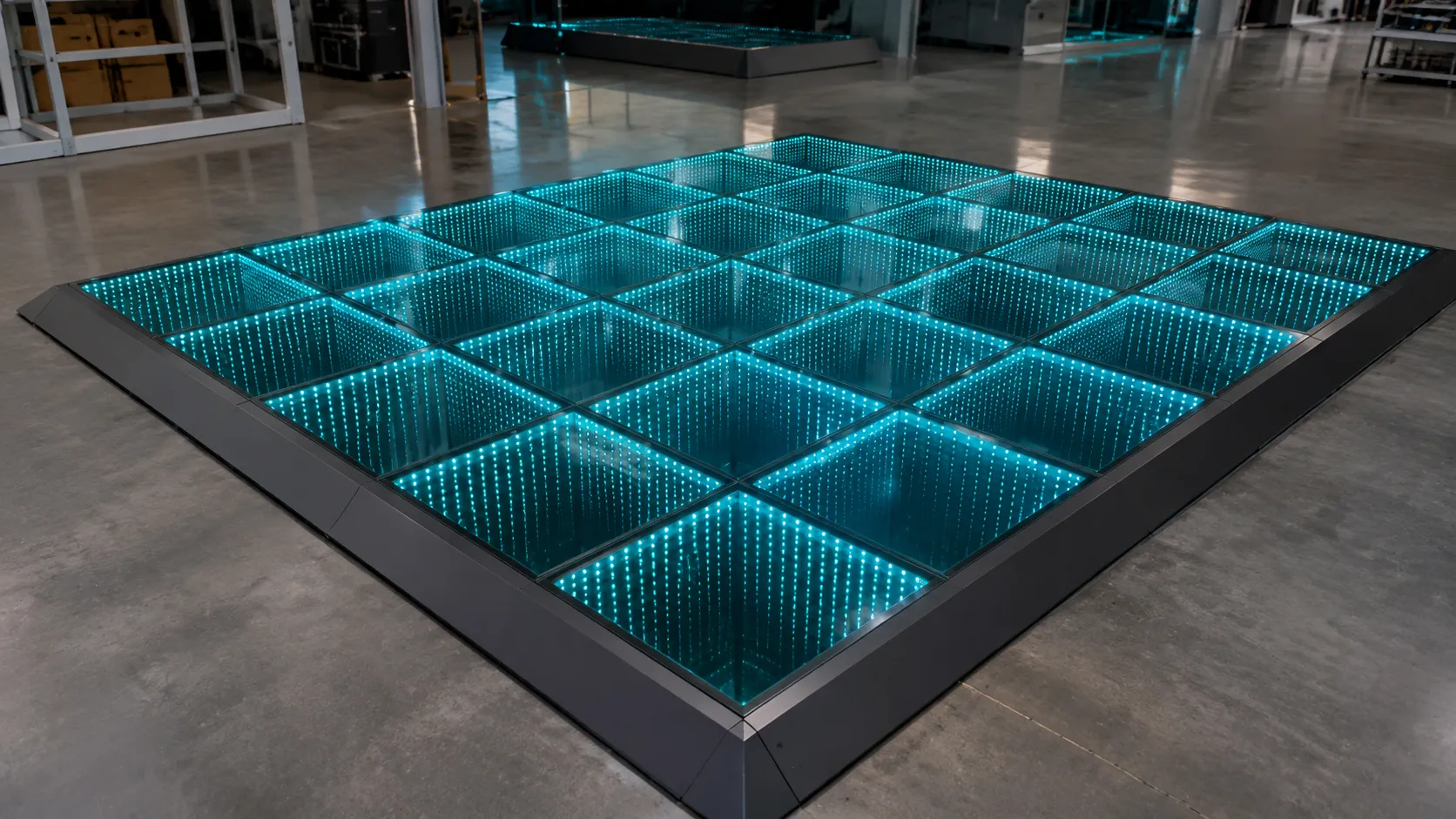

Deep Cavity Over 100mm
Creates a stronger immersive abyss effect for freestanding art installations, photo-spot projects and large commercial display scenes.
Common Infinity Mirror Tunnel Project Challenges and How to Prevent Them
Commercial buyers need to check more than the visual effect in a sample photo. A custom infinity mirror tunnel must maintain depth, color consistency, control compatibility and clean internal reflection after production, shipping and installation.
Why does an infinity mirror tunnel look shallow?
Buyer concern: Will the finished product create a deep and continuous tunnel effect, or only show a few weak reflections?
Cause: Shallow visual depth is usually caused by incorrect two-way mirror transmission, low rear-mirror reflectivity, insufficient cavity depth, weak LED brightness or slightly warped mirror panels.
How we solve it: We match the two-way mirror, rear reflective mirror, cavity spacing and LED brightness according to product size, viewing distance and installation angle. Rigid cabinet structure and flat mirror panels help keep the reflections aligned and reduce distortion.
How can color difference be reduced in a large LED infinity mirror tunnel?
Buyer concern: Will a large tunnel stay evenly bright, or will some areas look darker, weaker or different in color?
Cause: Large or irregular shapes may suffer from voltage drop, uneven LED spacing, poor power injection or overloaded power supplies. These issues can cause dim sections, color shift, flickering or unsynchronized lighting effects.
How we solve it: We calculate LED density, total power load, cable size and power injection points before production. For larger tunnels, segmented wiring and multiple power supply zones help maintain consistent brightness and color across the full structure.
Can an infinity tunnel mirror connect with DMX or venue lighting control?
Buyer concern: Can the mirror tunnel work with the venue’s existing lighting system, music sync or centralized control platform?
Cause: Standard RGB strips, addressable LEDs and DMX-controlled systems use different wiring, controllers and signal protocols. If the control system is not confirmed early, the finished product may only support basic remote control instead of synchronized venue effects.
How we solve it: We confirm the required control method before production, including RF remote, Wi-Fi APP, SPI addressable control, music sync or DMX512. For exhibition halls, clubs and theme venues, the LED layout and controller configuration can be prepared for synchronized multi-section operation.
How do you prevent dust and condensation inside the mirror cavity?
Buyer concern: Will dust, fingerprints or moisture become visible inside the reflective tunnel after installation?
Cause: The repeated reflection effect makes small dust particles, water vapor and surface marks more noticeable. Poor sealing, humid environments or careless handling can cause condensation, internal stains or scratches on mirror film and optical panels.
How we solve it: We use clean assembly, protected optical surfaces, sealed cavity structure and edge protection during production and packaging. The sealing method is selected according to indoor, semi-outdoor or humid-site requirements.
What drawings are needed for recessed installation?
Buyer concern: Will the product fit the wall or floor opening correctly, and can contractors install it without repeated adjustment?
Cause: Recessed infinity mirror tunnels require accurate opening size, cabinet depth, wiring route, load support and maintenance access. Missing drawings can delay coordination between designers, contractors, electricians and site installers.
How we solve it: We can provide CAD drawings, mounting dimensions, wiring diagrams, installation templates and reserved service-access suggestions. Power supplies and controllers can be placed in accessible locations for easier inspection and replacement.
Global Collaborations
For over 20 years, PDL has built enduring partnerships worldwide. We deliver premium OEM/ODM custom LED channel letters with uncompromising quality and dedicated communication.
Application Scenarios
Custom Infinity Mirror Tunnels create a strong sense of depth and visual immersion in commercial interiors, exhibitions and entertainment projects. Wall-mounted, recessed, freestanding and suspended structures can be designed according to the available space and viewing direction.
Installation Options
- Wall Mounted Retail stores, restaurants, lobbies and decorative feature walls.
- Recessed Permanent architectural installations and premium commercial interiors.
- Freestanding Exhibitions, events, photo spots and temporary brand activations.
- Ceiling Suspended Stages, clubs, immersive venues and overhead decorative installations.
Retail Stores & Shopping Malls
Used for storefront displays, feature walls, product launch areas and interactive photo spots. The tunnel effect attracts attention and helps create a more memorable in-store experience.
Exhibitions & Brand Activations
Suitable for trade show booths, promotional events, pop-up stores and branded installations. Freestanding or modular structures can support temporary displays and repeated event use.
Bars, Nightclubs & KTV Venues
RGB, addressable RGB and DMX512 lighting can create dynamic effects for bars, clubs, KTV rooms and entertainment interiors. The lighting can be synchronized with programmed scenes or venue control systems.
Museums & Immersive Art
Custom shapes, repeated light patterns and animated effects make Infinity Mirror Tunnels suitable for museums, galleries, science centers and interactive digital art projects.
Hotels & Commercial Lobbies
Wall-mounted or recessed mirror tunnels can be used as decorative feature walls in hotel lobbies, restaurants, reception areas and premium hospitality spaces.
Stages & Entertainment Venues
Large-format tunnels can be integrated into stage backgrounds, performance spaces, gaming centers and themed attractions. Addressable lighting enables moving patterns, color transitions and synchronized visual effects.
Certificates
Committed to the highest industry standards. Our custom LED channel letters are backed by international safety and quality certifications.
Comprehensive Customization Capabilities
Engineered to your exact specifications. We provide complete OEM/ODM manufacturing flexibility for professional LED channel letter projects, ensuring every detail aligns with your brand standards.
Appearance
- ■ Color
- ■ Font style
- ■ Shape
- ■ Logo design
- ■ Surface finish (brushed / mirror / matte / painted)
- ■ Edge color
- ■ Face color
- ■ Return color (side color)
Size & Structure
- ■ Letter height
- ■ Letter depth / thickness
- ■ Overall sign dimensions
- ■ Stroke width
- ■ Custom length
- ■ Logo proportion
Material
- ■ Acrylic face
- ■ Stainless steel
- ■ Aluminum
- ■ Galvanized steel
- ■ PVC
- ■ Composite materials
Lighting
- ■ Color temperature (Warm / Natural / Cool White)
- ■ Single color lighting
- ■ RGB color changing
- ■ LED module type
- ■ LED strip type
- ■ Brightness level
- ■ Halo lighting effect
- ■ Front illumination effect
- ■ Front & back illumination effect
Installation
- ■ Wall mounted
- ■ Raceway mounted
- ■ Backer panel mounted
- ■ Hanging installation
- ■ Stand-off installation
- ■ Flush mounted
Electrical
- ■ Voltage options (12V / 24V / customized)
- ■ Power supply specification
- ■ Waterproof rating
- ■ Indoor / outdoor configuration
Project & Branding
- ■ OEM branding
- ■ ODM design support
- ■ Engineering drawings
- ■ Packaging customization
- ■ Multi-location projects
- ■ Bulk order solutions
Extra Functions
- ■ Waterproof level
- ■ UV resistance
- ■ Anti-corrosion treatment
- ■ Energy-saving LED option
- ■ Smart control system
- ■ Dimming function
- ■ Remote control
- ■ Timer function
Infinity Mirror Tunnel Questions Buyers Ask Before Ordering
Is an infinity mirror tunnel a real tunnel or a mirror illusion?
It is a brilliant mirror illusion. Using a partially reflective front mirror and a solid rear mirror, internal LEDs bounce light endlessly, creating deep visual depth within a cabinet that is physically only a few inches thick.
What is the best material for a commercial infinity mirror tunnel?
For commercial longevity, tempered glass two-way mirrors combined with a stainless steel or heavy-duty aluminum cabinet are best. Glass resists scratching during cleaning, unlike acrylic, maintaining the endless mirror clarity.
Can an LED infinity mirror tunnel be used outdoors?
Yes, but it requires specific engineering. The cabinet must be fully sealed to IP65 or IP67 standards to prevent moisture from fogging the mirror cavity, and we must use exterior-grade, UV-resistant components.
How deep should the mirror cavity be?
The cavity depth typically ranges from 50mm to 150mm depending on the overall size. A deeper physical cavity increases the spacing between the repeated mirror reflections, altering the visual tunnel effect.
Can the LED effects connect to DMX512?
Absolutely. For nightclubs and stage installations, we integrate DMX decoders inside the cabinet, allowing your lighting engineer to control the 3D infinity mirror display synchronously with the venue's master system.
What files should I send for quotation?
Please send architectural floor plans, wall elevation drawings (DWG/PDF), or simple hand-drawn sketches with dimensions. Include details on whether it is wall mounted, recessed, or freestanding.
Advanced Manufacturing Technology
Equipped with state-of-the-art machinery, our 20-year factory ensures precision engineering, rapid production cycles, and consistent quality for every custom LED sign order.
Precision Laser Cutting
High-wattage fiber lasers deliver micron-level accuracy for stainless steel, aluminum, and acrylic, ensuring flawless letter faces and returns.
Automated Bending
CNC auto-bending machines form complex curves and sharp angles with perfect consistency, drastically reducing production time for bulk orders.
Dust-Free Painting
Our environmentally controlled spray booths ensure a pristine, durable finish. We match any Pantone color with automotive-grade paints.
LED Integration & QA
CE & RoHS certified LED modules are meticulously installed and subjected to rigorous aging tests to guarantee uniform illumination and longevity.
Application Limitations & Project Planning
Infinity Mirror Tunnels are primarily decorative visual installations and should not be used as the main source of task lighting. Bathroom, humid or outdoor projects require suitable sealing, corrosion-resistant materials and protected electrical components. Public installations should also consider structural load, impact protection, fire regulations and maintenance access.
1. Site Viewing Conditions
The same Infinity Mirror Tunnel can appear different under different site conditions. Architects and designers should evaluate the surrounding light, viewing direction and reflective environment before finalizing its position.
Primary Viewing Direction
Identify where visitors will first see the installation and whether they will approach it from the front or from an angle. The visible opening, mounting height and orientation should be planned around this primary sightline.
Ambient Light and Reflections
Strong daylight, spotlights and illuminated displays may reflect on the front mirror and compete with the internal tunnel effect. Bright objects directly opposite the mirror may also appear in the surface reflection.
For better visual contrast:
- Avoid positioning the product directly opposite large windows.
- Keep high-output spotlights outside the main reflection angle.
- Use controllable ambient lighting around the feature area.
- Review nearby screens, signs and reflective materials during site planning.
Photography and Video Conditions
For photo spots and promotional installations, confirm the intended camera position before production. Camera tests should evaluate exposure, LED banding, reflected background objects and whether visitors can capture the complete visual opening without blocking circulation.
A site photograph, floor plan and primary viewing direction allow the product orientation to be evaluated more accurately.
2. Large-Format & Modular Planning
How large can an Infinity Mirror Tunnel be?
There is no single maximum size that applies to every project. Practical dimensions depend on the selected mirror material, frame structure, transportation route, lifting equipment and available assembly space. Large installations may need to be divided into modules instead of being manufactured and shipped as one complete unit.
Information Required Before Modular Design
Project teams should confirm:
- Entrance door and corridor dimensions.
- Elevator or stairway clearance.
- Maximum package size allowed on site.
- Loading and unloading restrictions.
- Available lifting and assembly equipment.
- Final installation opening and surrounding clearance.
- Whether visible joints are acceptable.
Managing Module Joints
Module divisions should follow the geometry of the design whenever possible. Frames, repeated light lines or graphic boundaries can help make structural joints less noticeable.
The number and location of modules should be confirmed before production because they affect the frame design, wiring zones, on-site assembly sequence and final visual continuity.
3. Public-Space Safety & Codes
Infinity Mirror installations in shopping malls, exhibitions, hotels and entertainment venues require more than visual approval. The project team must evaluate how visitors may touch, lean against, walk over or move around the structure.
Wall and Freestanding Installations
For installations within public reach, evaluate:
- Safety glazing or impact-resistant panel requirements.
- Exposed corners and edge protection.
- Frame stability and overturning risk.
- Tamper-resistant fasteners.
- Cable protection and electrical access.
- Clearance from circulation and emergency routes.
Floor-Installed Models
A floor Infinity Mirror Tunnel must be engineered as a load-bearing floor assembly, not treated as a standard decorative wall mirror placed horizontally.
The project should define:
- Required design load (concentrated and distributed).
- Impact resistance and slip resistance.
- Edge support and structural deflection.
- Surface transition to the surrounding floor.
- Replacement access for damaged upper panels.
Local Project Requirements
Safety glazing, structural loading, fire performance, electrical protection and accessibility requirements vary by country and project type. Final compliance should be reviewed by the project’s architect, structural engineer, electrical consultant or local approval authority.
4. Factory Acceptance & Handover
A factory acceptance review helps identify specification differences before the product reaches the installation site. Inspection should be based on the approved production drawing rather than appearance alone.
Dimensional Inspection
- Overall external dimensions.
- Visible opening dimensions.
- Mounting or support positions.
- Cable outlet locations.
- Module numbers and joint positions.
- Frame color and surface finish.
Handover Documents
- Approved production drawing.
- Wiring and connection diagram.
- Product and component labels.
- Controller configuration information.
- Installation documentation & packing list.
- Factory test photos or videos.
- Recommended spare-parts list.
Functional & Visual Inspection
Test the complete unit under its intended operating configuration. Confirm power-up behavior, supplied lighting programs, brightness adjustment, remote or console response and synchronized operation where applicable. Inspect the product both switched on and switched off. Check mirror surfaces, frame finish, internal cleanliness, visible joints and the appearance from the agreed primary viewing position.
A documented acceptance process gives contractors a clear reference for installation and reduces disputes caused by unclear specifications after delivery.
Need Help Evaluating Your Site?
Send us site photos, installation dimensions, and indoor/outdoor conditions. We can help evaluate the best structure, lighting control, and installation method for your project.
Industrial-Grade Packaging & Transit
From our manufacturing floor to your global destination, we implement a rigorous 6-step protection protocol. We ensure every custom LED channel letter survives the rigors of international shipping and arrives in pristine, ready-to-install condition.
Surface Protection
Applying specialized protective films directly to acrylic faces and metal returns to completely eliminate the risk of surface abrasion during handling.
Impact Resistance
Strategic placement of high-density EPE (Expanded Polyethylene) foam corner protectors to absorb kinetic energy and safeguard structural integrity against transit bumps.
Custom Cartons
Selecting from our inventory of multi-layered, reinforced corrugated cartons, perfectly matched to the specific dimensions of your order to minimize internal shifting.
Secure Wrapping
Rigorous internal packing utilizing bubble wrap and shrink wrap, followed by heavy-duty strapping to consolidate the components into a single, immovable unit.
Palletizing & Loading
Systematic palletizing (for large orders) and careful container loading executed by experienced warehouse personnel to maximize stability and utilize space efficiently.
Global Logistics
Partnering with top-tier international freight forwarders to provide reliable, trackable air and sea shipping solutions directly to your facility or project site.
Infinity Mirror Tunnel Installation Steps
Before installation, confirm the product size, installation surface, wiring route and control method. For recessed, large glass, floor-mounted or DMX-controlled projects, professional installation drawings are recommended before production.
Request Installation DrawingPre-Installation Preparation for Infinity Mirror Tunnel Projects
- Check all accessories: infinity mirror unit, power adapter, controller, mounting brackets, screws, wall anchors and remote control. Inspect the cabinet, mirror panel and wiring for transportation damage.
- Confirm the installation surface. The wall or floor must be solid, flat, dry and load-bearing. Hollow thin walls are not recommended for large-size glass units.
- Mark the installation position with a level tool and reserve space for the power cord outlet or hidden wiring channel.
- Cut off the main power supply before wiring. A professional electrician is required for hard-wired connection or commercial site wiring.
Step 1: Wall Mounted Infinity Mirror Tunnel Installation
Drill holes at the marked positions, insert wall anchors and fasten the mounting brackets firmly. Make sure the brackets are level and aligned to prevent the mirror unit from tilting after installation.
For large wall-mounted infinity mirror tunnels, check wall strength, fixing points, cabinet weight and maintenance access before lifting the unit.
Step 2: Recessed Infinity Mirror Tunnel Installation
Finish the pre-cut wall or floor cavity before placing the unit. The cavity size should match the product outer dimensions, and enough space should be reserved for wiring, controller placement and ventilation.
For recessed installations, keep the cabinet edge straight and avoid squeezing the power cable between the cabinet and wall. Small gaps can be sealed with neutral silicone after testing.
Step 3: Freestanding Infinity Mirror Cabinet Setup
Place the freestanding infinity mirror cabinet on flat ground and adjust the base levelers until the whole cabinet remains stable without wobbling.
For exhibition booths, photo spots and temporary event use, confirm the transport route, base stability, anti-tip protection and repeated installation requirements in advance.
Step 4: Ceiling Suspended or Floor Tile Support Fixing
For ceiling suspended models, install heavy-duty hanging hardware and test the load-bearing capacity before hanging the unit.
For infinity mirror floor tile models, install a load-bearing steel frame base. The structure must support pedestrian activity, impact resistance and surface leveling with the surrounding floor.
Step 5: Hang or Place the Infinity Mirror Unit
Lift the mirror cabinet onto the installed brackets, place it into the recessed cavity or position it on the prepared base. Two-person operation is recommended for heavy glass units.
Fine-tune the position and recheck horizontal and vertical alignment with a level tool.
Tighten locking screws and confirm the unit is securely fixed.
Reserve a proper cable outlet gap and avoid sharp bending or compression of power cables.
Step 6: DMX Controlled LED Infinity Mirror Wiring
Route the power cable and control cable through the reserved wire hole.
Connect the LED strip wire to the controller, then connect the controller to the DC power adapter. Check positive and negative polarity before powering on.
For DMX controlled LED infinity mirror wiring, connect the signal cable between each unit and the main DMX512 console according to the wiring diagram.
Keep the adapter and controller in a ventilated, accessible position. Do not seal them inside a narrow closed cavity for long-term operation.
Step 7: Pre-Power-On Test
Confirm all connections are correct and no bare wire is exposed.
Switch on the power supply and test color changing, dynamic modes, remote control, APP control or DMX control functions.
Observe the infinity tunnel effect. If the visual layering is distorted, check whether the cabinet is deformed or whether the two mirror panels remain parallel.
Power off immediately if abnormal flicker, overheating or control failure occurs.
Step 8: Final Installation and Finish-Up
After the full function test passes, tidy and fix loose cables.
Conceal visible wires with wire trunking or reserved cable channels for a clean appearance.
Seal small installation gaps for recessed or semi-outdoor units to reduce dust and moisture entry.
Peel off the protective film on the front two-way mirror panel.
Clean the surface gently with a soft dry cloth. Do not scratch the optical mirror surface.
Confirm there are no loose screws, unstable parts or exposed cables.
Safety Notes for Infinity Mirror Tunnel Installation
- Only use the matched original power adapter. Do not use a mismatched power supply.
- Indoor IP20 products must not be exposed to rain or wet environments. Semi-outdoor and outdoor models should follow the correct IP rating scope.
- Glass-type infinity mirror products are heavy, so reliable load-bearing structure is required.
- Do not disassemble the cabinet or mirror panels after installation. Disassembly may damage the optical effect and internal LED structure.
- Keep ventilation around the power supply and controller to prevent overheating.
- Cut off the power supply before maintenance or cleaning. Do not spray liquid directly onto the mirror surface.
Frequently Asked Questions
How can I identify a commercial-grade Infinity Mirror Tunnel?
Should I choose glass or mirrored acrylic?
Can the size, shape and visual pattern be customized?
How much does a custom Infinity Mirror Tunnel cost?
What voltage and power supply will I need?
What are the MOQ and production lead time?
Can I approve the design before manufacturing begins?
What certifications and technical documents are available?
Infinity Mirror Tunnel Guide
Optical Principles, Selection & Comparison
An Infinity Mirror Tunnel creates the appearance of an extended illuminated passage within a comparatively compact physical structure. For architects, designers and project buyers, understanding this optical system is crucial to determining if it is the right visual medium for your intended project.
How Does it Work?
The mesmerizing effect is created by the precise alignment of three core optical elements:
01. Partially Reflective Front Mirror
The front layer allows part of the internal light to reach the viewer while reflecting the remaining light back into the cavity.
02. High-Reflectivity Rear Mirror
The rear layer redirects most of the returning light toward the front mirror, continuing the reflection sequence.
03. Internal Light Source
LEDs or illuminated lines positioned between the mirrors appear repeatedly as light travels back and forth. Because each reflected image appears farther behind the previous one, the eye interprets the sequence as a long illuminated tunnel.
Physical Depth vs Virtual Depth
These measurements should not be confused in architectural specifications. Virtual depth is a visual impression rather than a measurable internal passage. It should therefore be described as an optical effect, not specified as usable space.
Physical Depth
The actual thickness of the mirror cavity or product structure.
Virtual Depth
The apparent distance created by the repeated reflections.
Visible Aperture
The front opening through which the tunnel effect is viewed.
Overall Size
The complete external dimensions, including the frame.
Technology Comparison
| Visual System | Primary Visual Output | Viewer Relationship | Content Flexibility | Actual Space Required |
|---|---|---|---|---|
| Infinity Mirror Tunnel | Repeated-light optical depth | Viewed from outside the reflective cavity | Low to moderate | Compact optical structure |
| Infinity Room | Room-scale multidirectional reflections | Viewer stands inside the mirrored environment | Low to moderate | Complete enclosed room |
| Physical LED Tunnel | Illuminated passage with real structural depth | Viewer moves through the structure | Moderate | Full physical walkway |
| Digital LED Display | Video, text and changing digital content | Viewer watches a screen surface | High | Depends on screen structure |
| LED Light Box | Evenly illuminated printed graphics | Viewer reads a flat visual panel | Low | Very shallow enclosure |
How to Select the Right Visual System
Q1. Is the project communicating atmosphere or information?
Q2. Will visitors observe the effect or enter the structure?
Q3. Does the visual content need frequent updates?
Q4. Is real spatial depth available?
Start Your Custom Project
Send us your dimensions, drawings, or site photos. Our engineering team will evaluate your requirements and provide a detailed quotation for your commercial infinity mirror installation.
WhatsApp
WhatsApp
Factory Address
Building 1, Tahoe Plaza, No.339 Baodao Middle Road, Hubin Street, Shishi City, Fujian Province, China
