Front-Lit
Channel Letters
The ultimate LED sign solution engineered for high-impact business signs. Built for enterprise durability and striking brand visibility.
- Maximum Brilliance: High-transmittance acrylic eliminates visible LED hotspots.
- Extreme Durability: 100% waterproof sealing & anti-UV materials prevent yellowing.
- Enterprise-Ready: Standardized 12V systems with strict color consistency across production batches.
Front-Lit Channel Letters Manufacturer
As an industry-leading B2B factory, PDL sets the global standard for premium LED illuminated signs. With 20 years of heavy-industrial manufacturing expertise, we are the trusted LED sign manufacturers for wholesalers, franchise brands, and enterprise clients worldwide.

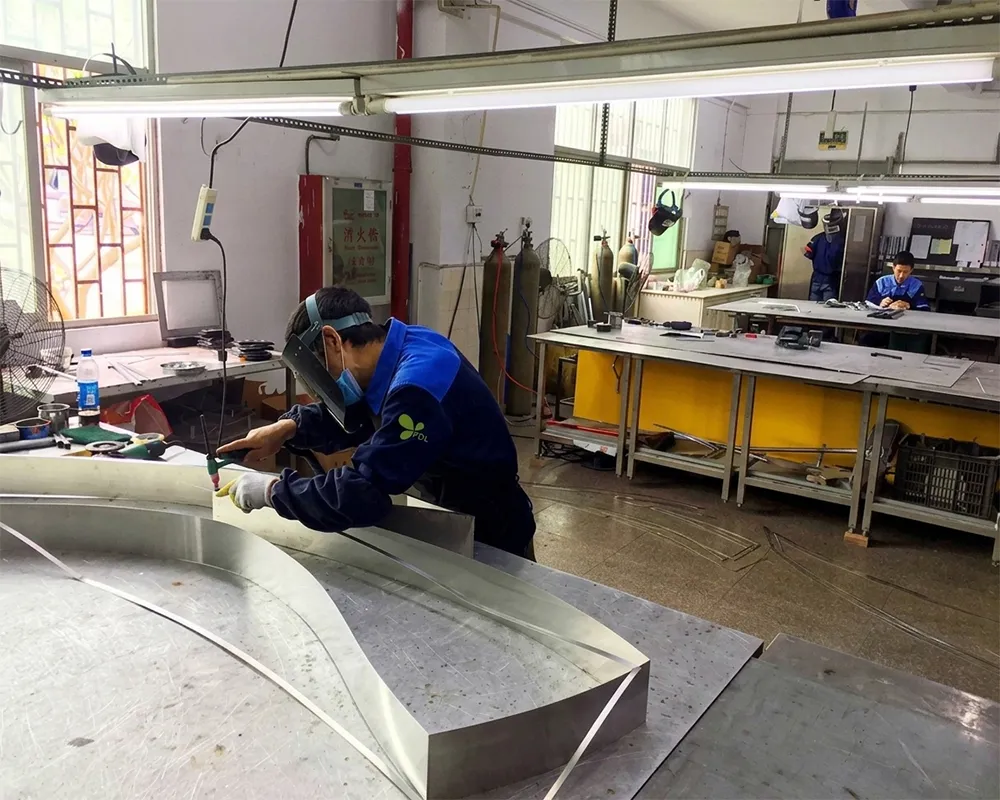

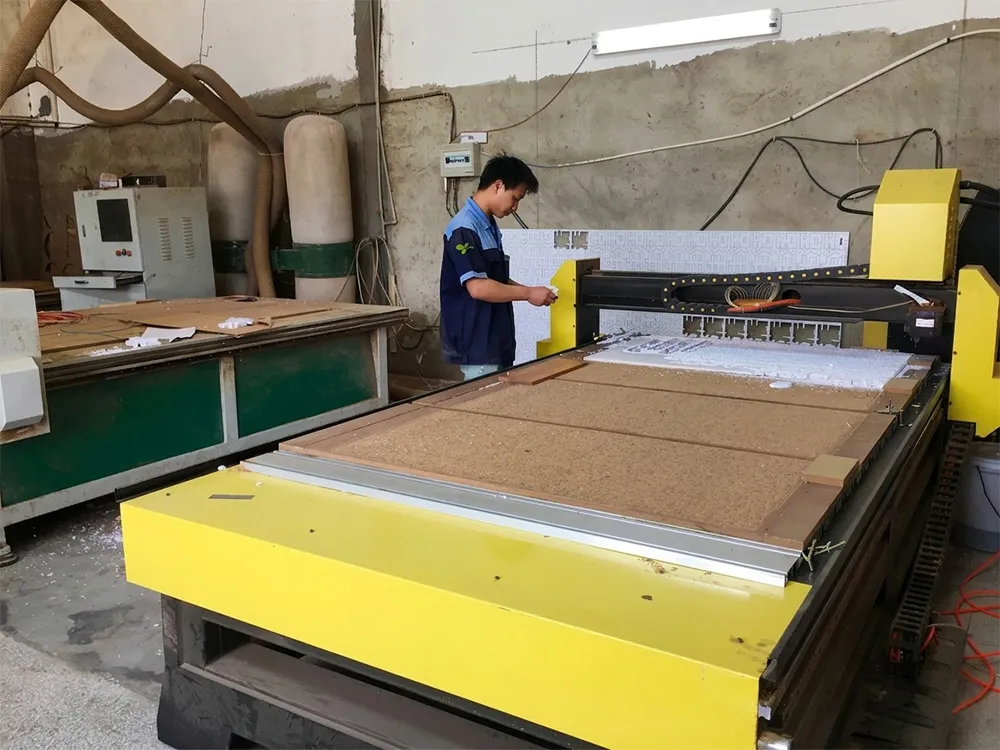

We don't just assemble; we engineer. From raw aluminum shaping to precise LED integration, our facility ensures every project delivers flawless performance. Recognized among top business sign manufacturers and illuminated sign manufacturers, we guarantee scalable production without compromising on custom details.
Types of Front-Lit Channel Letters
Front-lit channel letters can be classified by their structural build, face material, and installation method. Below are the most commonly used professional categories in commercial signage projects.
Structure & Craftsmanship

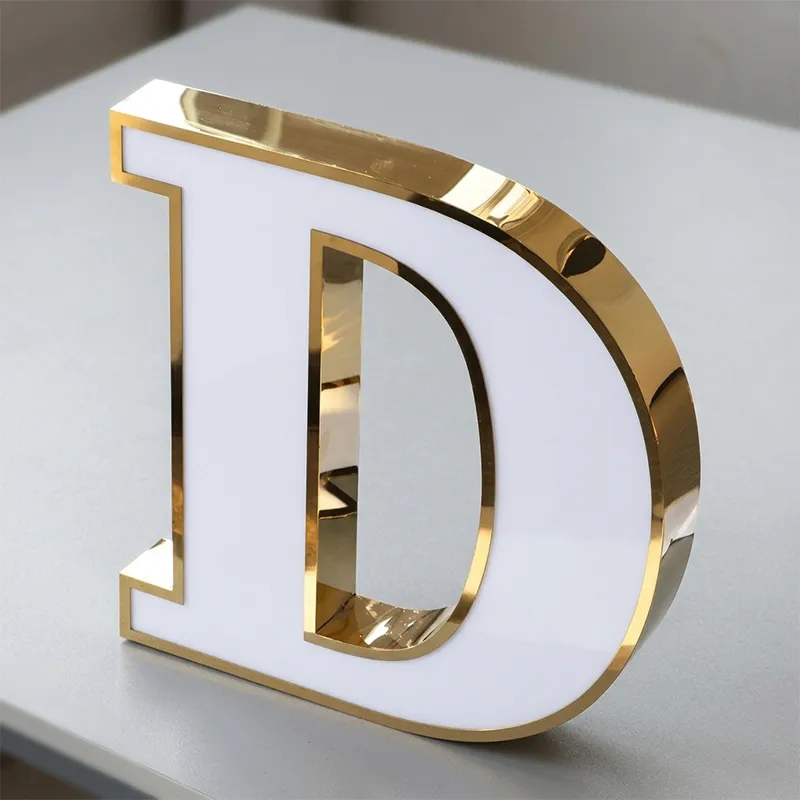

01 Standard Acrylic Face
This is the most widely used front-lit channel letter structure. The letter body is made from aluminum or stainless steel, and a 3–5mm acrylic face is fixed to the metal return edge (trim/border). LED modules are installed inside for front illumination.
- Mature and stable manufacturing process
- Strong weather resistance for outdoor use
- Cost-effective for large signage projects
- Easy to maintain and repair

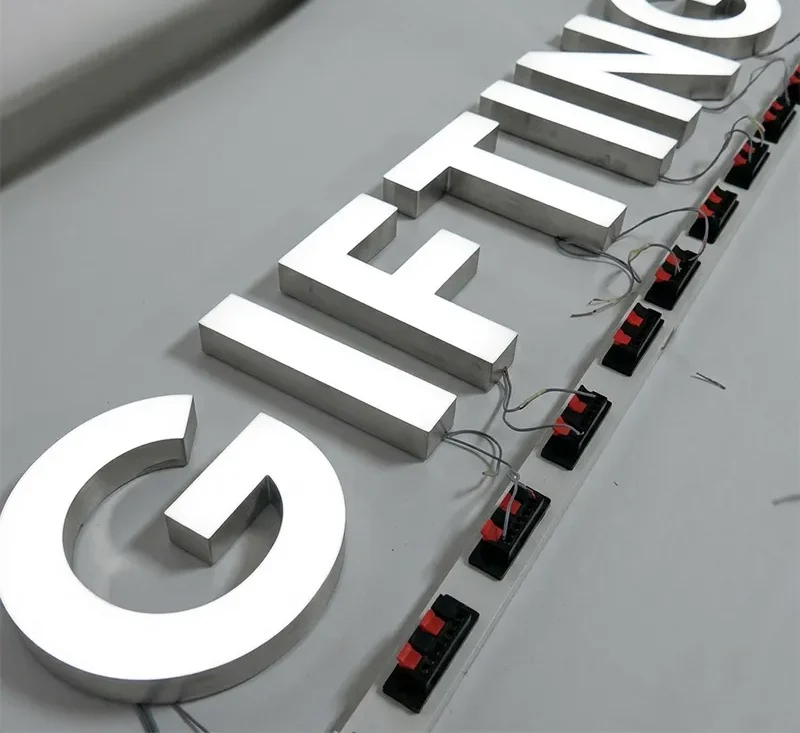

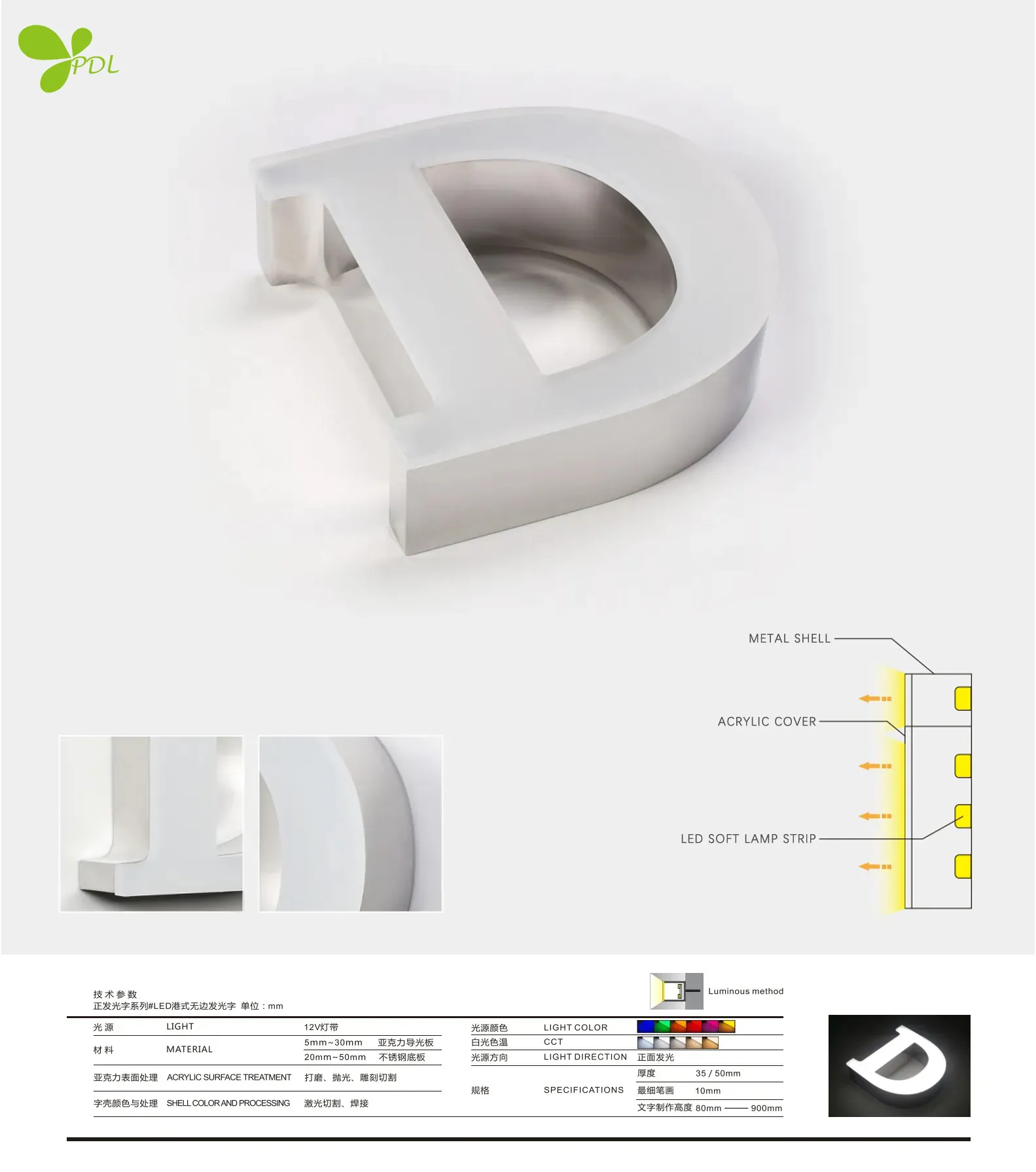

02 Trimless / Seamless
This type removes the visible trim (metal border), creating a clean, seamless lighting surface. The acrylic face connects closely with the letter body using hidden fixing structures or internal bonding systems.
- Ultra-clean and modern appearance
- Premium and high-end visual effect
- No shadow or metal edge on the front face

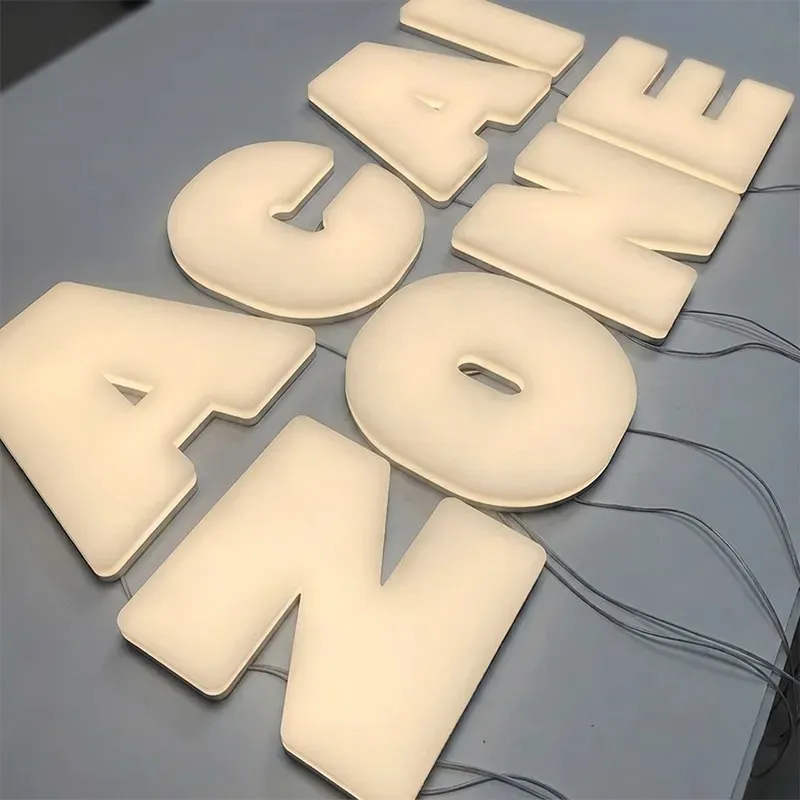

03 Mini / Slim
Mini front-lit letters are designed for small fonts and detailed logos. They use slim metal returns combined with thin acrylic faces and high-density LED strips for uniform lighting.
- Perfect for small text and fine details
- Space-saving design
- Even lighting at close viewing distance

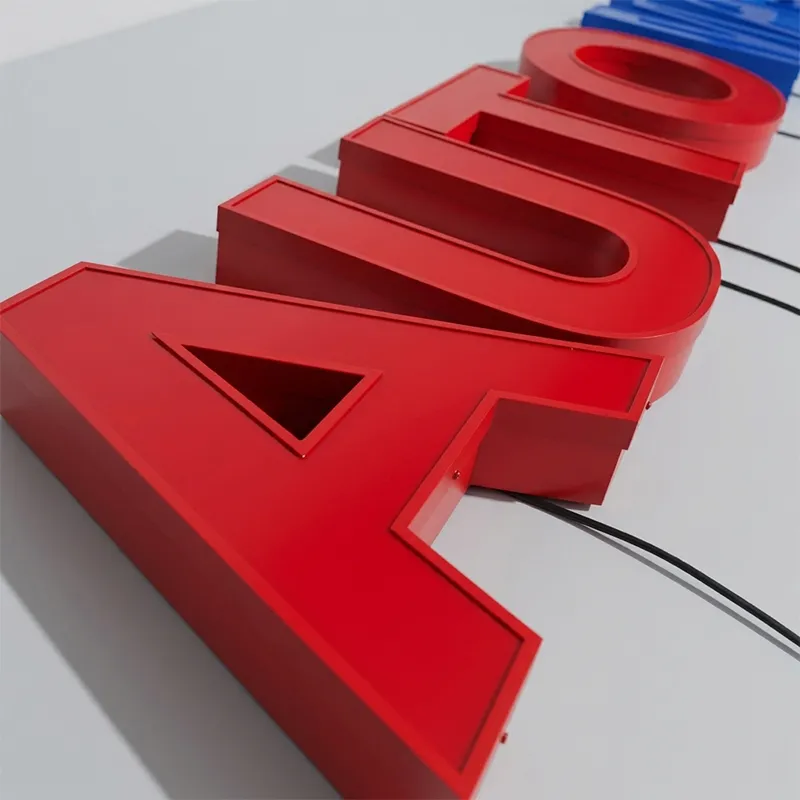

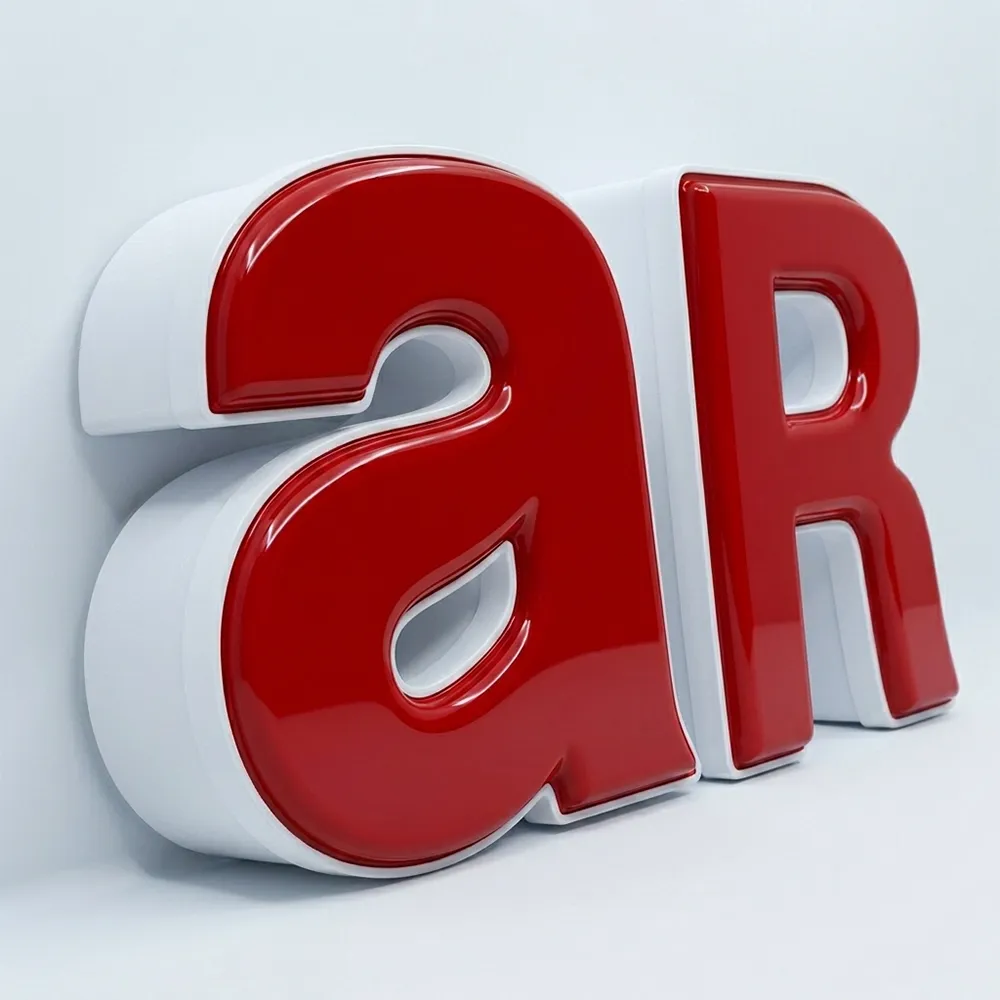

04 Vacuum Formed (3D Molded)
The acrylic face is produced using vacuum forming technology, creating a smooth curved or raised surface. This improves structural strength and lighting diffusion.
- Strong 3D visual impact
- Uniform light diffusion
- Better durability for large outdoor letters
Material Classifications & Technical Specifications

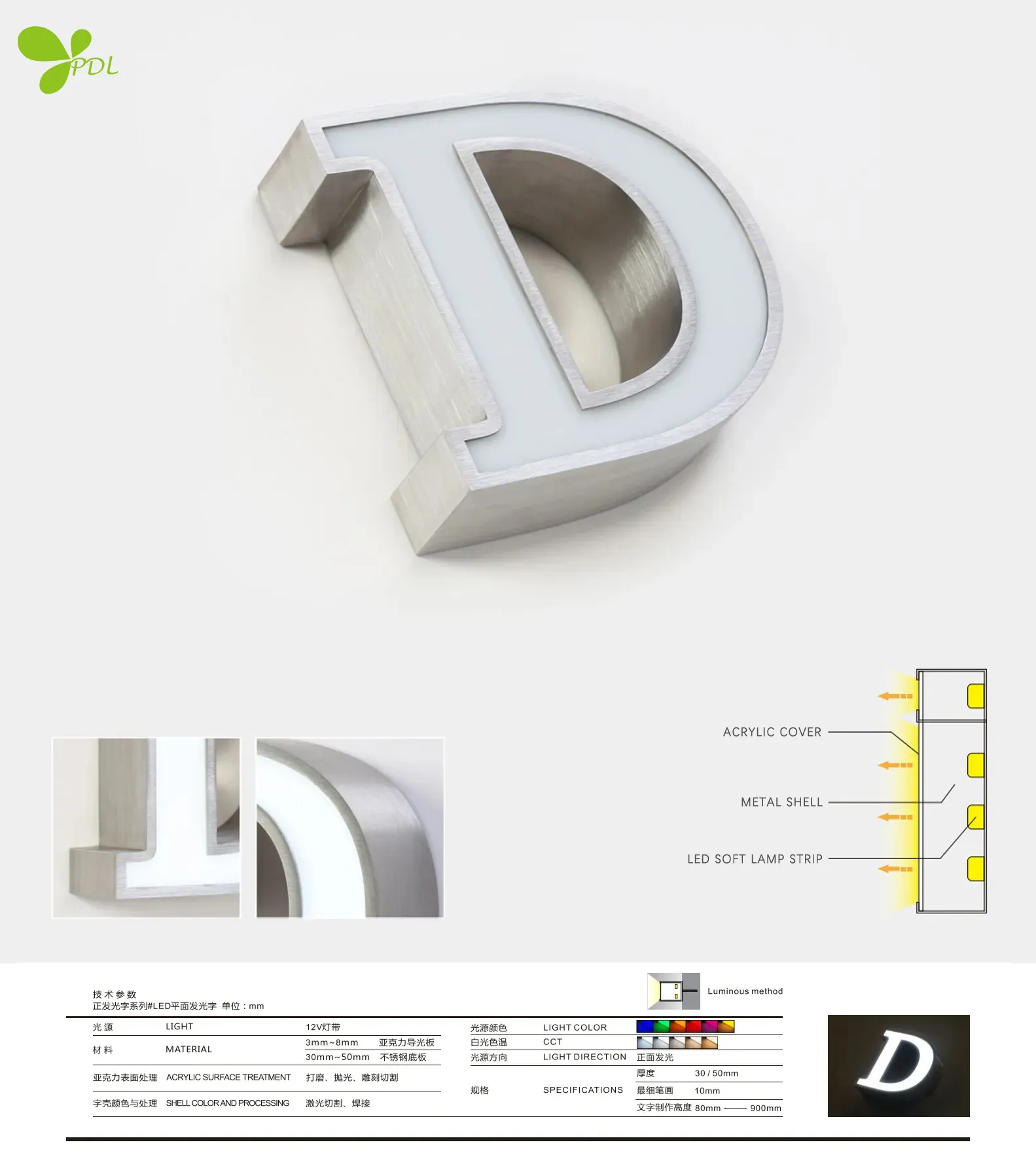

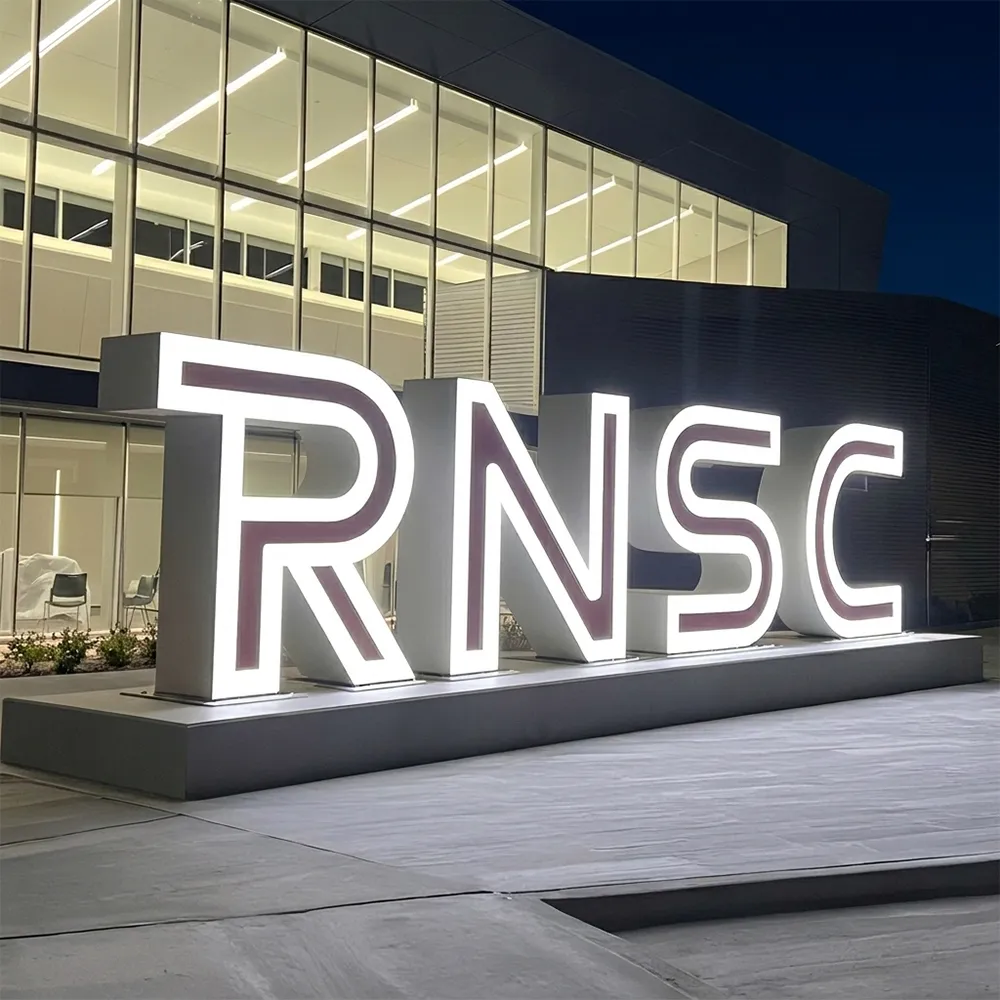

Aluminum & Acrylic Front-Lit Letters
View Specifications
- ▪ 0.8mm aluminum forms the 6-10cm depth frame; customizable colors available (PMS, RAL color charts).
- ▪ Imported 3mm acrylic for the front face.
- ▪ Internally fitted with waterproof LED modules, backed by a 4-year warranty.
- ▪ PVC, aluminum composite, or galvanized sheet for the back casing.
- ▪ CE-approved waterproof 12V transformer.
- ▪ Includes a 1:1 installation template.
- ▪ Secure packaging: internal bubble wrap and export-grade three-ply wooden crate.
- - Aluminum can be substituted with other metal materials.
- - Acrylic can be airbrushed or fitted with 3M vinyl overlays for custom colors.
- - All sizes and thicknesses are fully customizable.

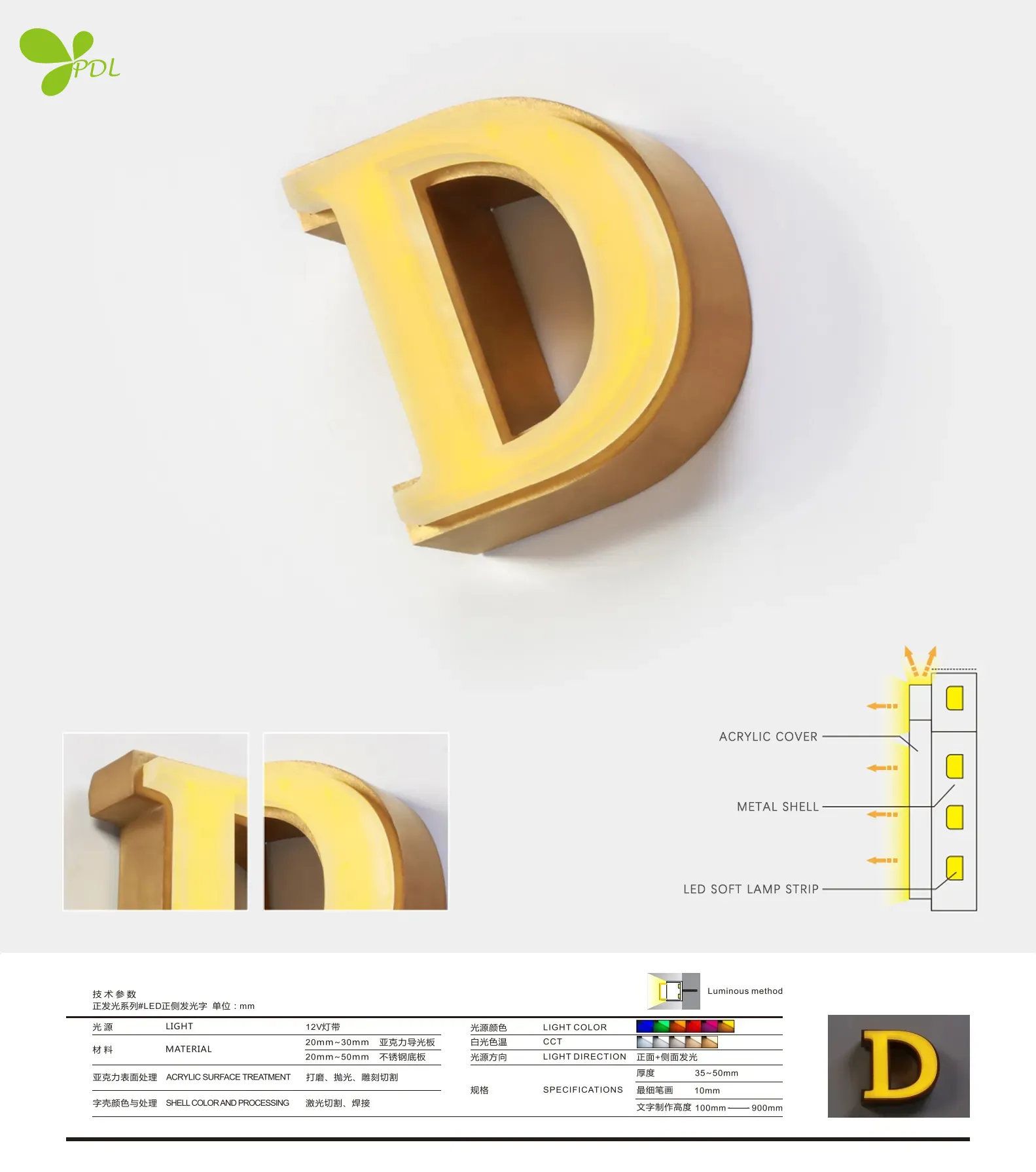

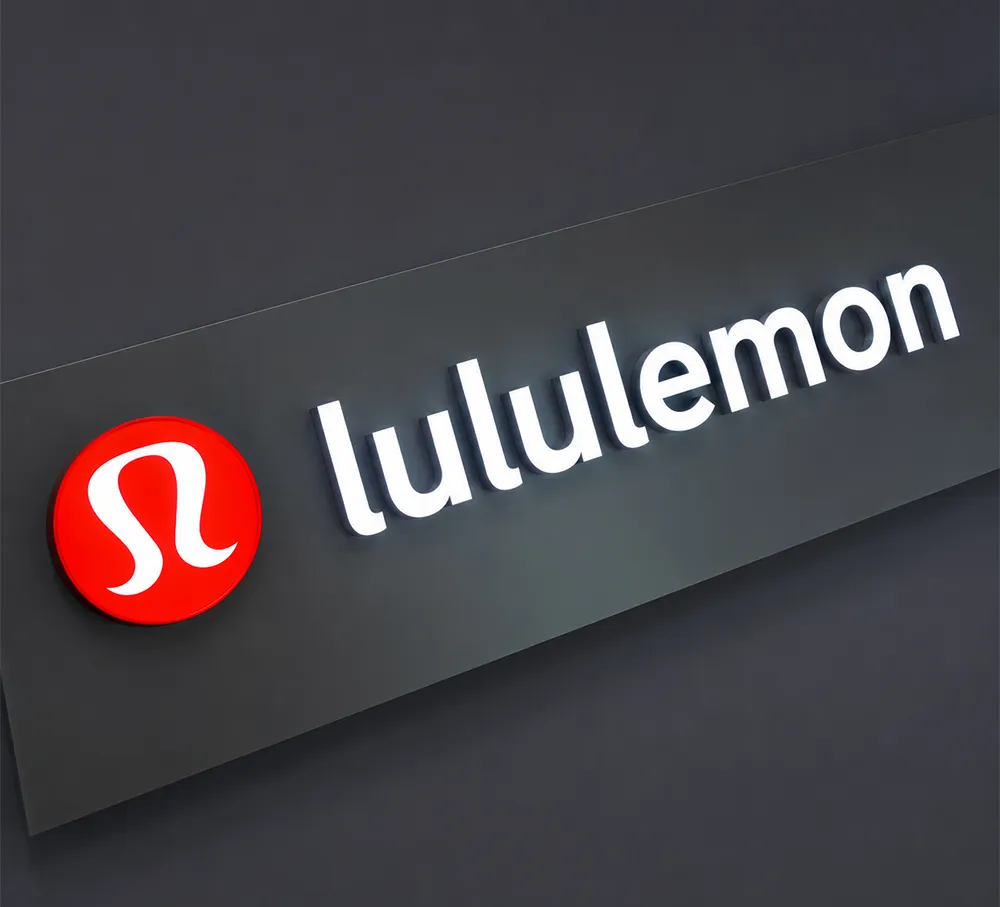

Stainless Steel & Acrylic Front-Lit Letters
View Specifications
- ▪ 0.6-1.0mm thick 304# mirror stainless steel forms the 6-10cm depth frame with a 6-10mm border.
- ▪ Imported 3-4mm acrylic for the front face.
- ▪ Internally fitted with waterproof LED modules, backed by a 4-year warranty.
- ▪ Galvanized sheet, PVC, or aluminum for the back casing.
- ▪ CE-approved waterproof 12V transformer.
- ▪ Includes a 1:1 installation template.
- ▪ Secure packaging: internal bubble wrap and a sturdy three-ply wooden crate.
- - Acrylic can be airbrushed or fitted with 3M vinyl overlays for custom colors.
- - Stainless steel can be substituted with galvanized sheet, titanium, etc. Custom painting or plating is available.
- - All sizes and thicknesses are fully customizable.

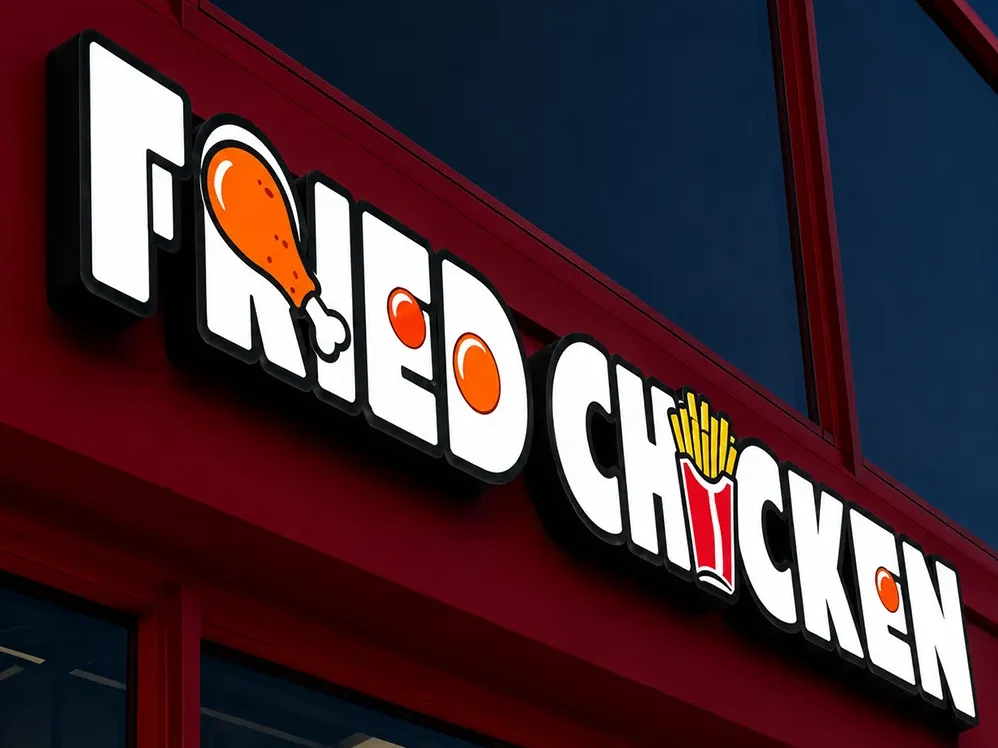

Galvanized Sheet & Acrylic Front-Lit Letters
View Specifications
- ▪ 0.8mm galvanized sheet for the 6-10mm front border.
- ▪ 0.6-0.8mm galvanized sheet forms the 6-10cm depth edge (custom painted to PMS or RAL specifications).
- ▪ Imported 3mm acrylic for the front panel.
- ▪ Internally fitted with waterproof LED modules, backed by a 3-year warranty.
- ▪ PVC, galvanized sheet, or aluminum composite for the back casing.
- ▪ CE-approved waterproof 12V transformer.
- ▪ Includes a 1:1 installation template.
- ▪ Secure packaging: internal bubble wrap and export-grade three-ply wooden crate.
- - Acrylic can be airbrushed or fitted with 3M vinyl overlays for custom colors.
- - Galvanized sheet can be substituted with stainless steel or gold titanium.
- - All sizes and thicknesses are fully customizable.

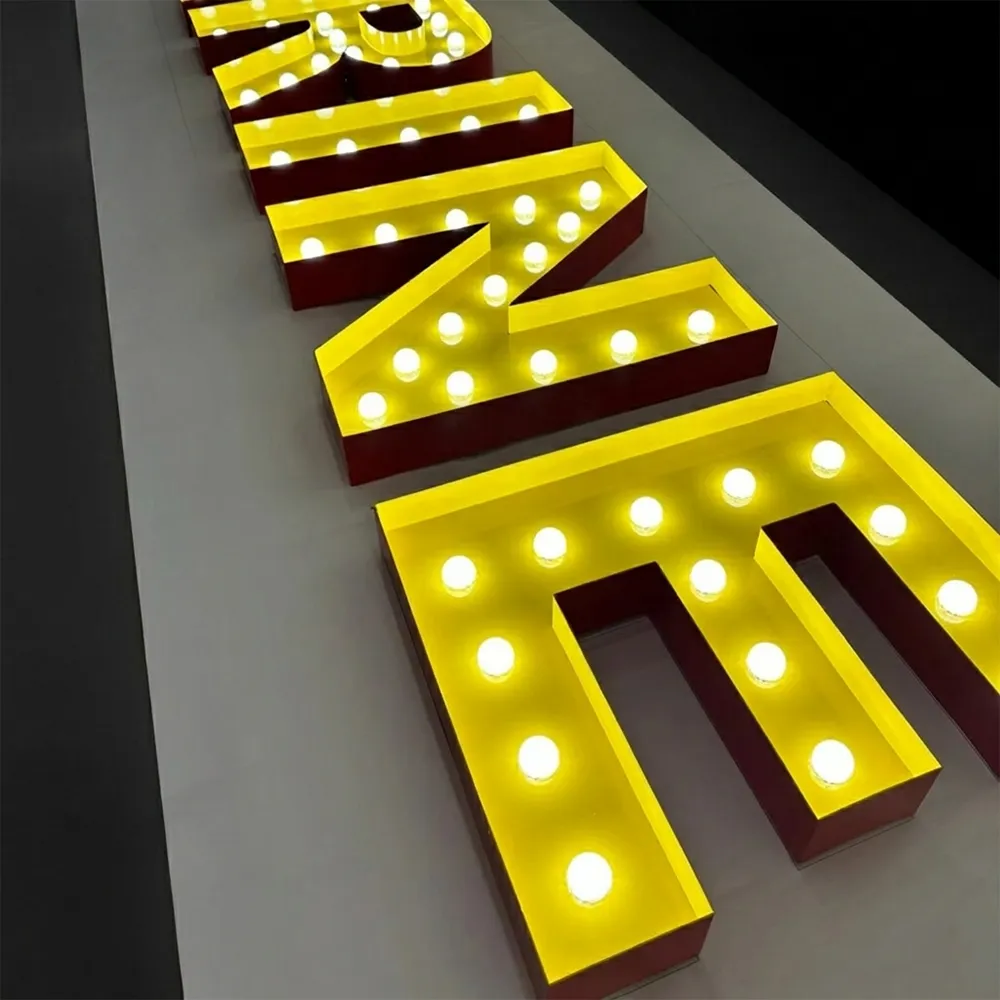

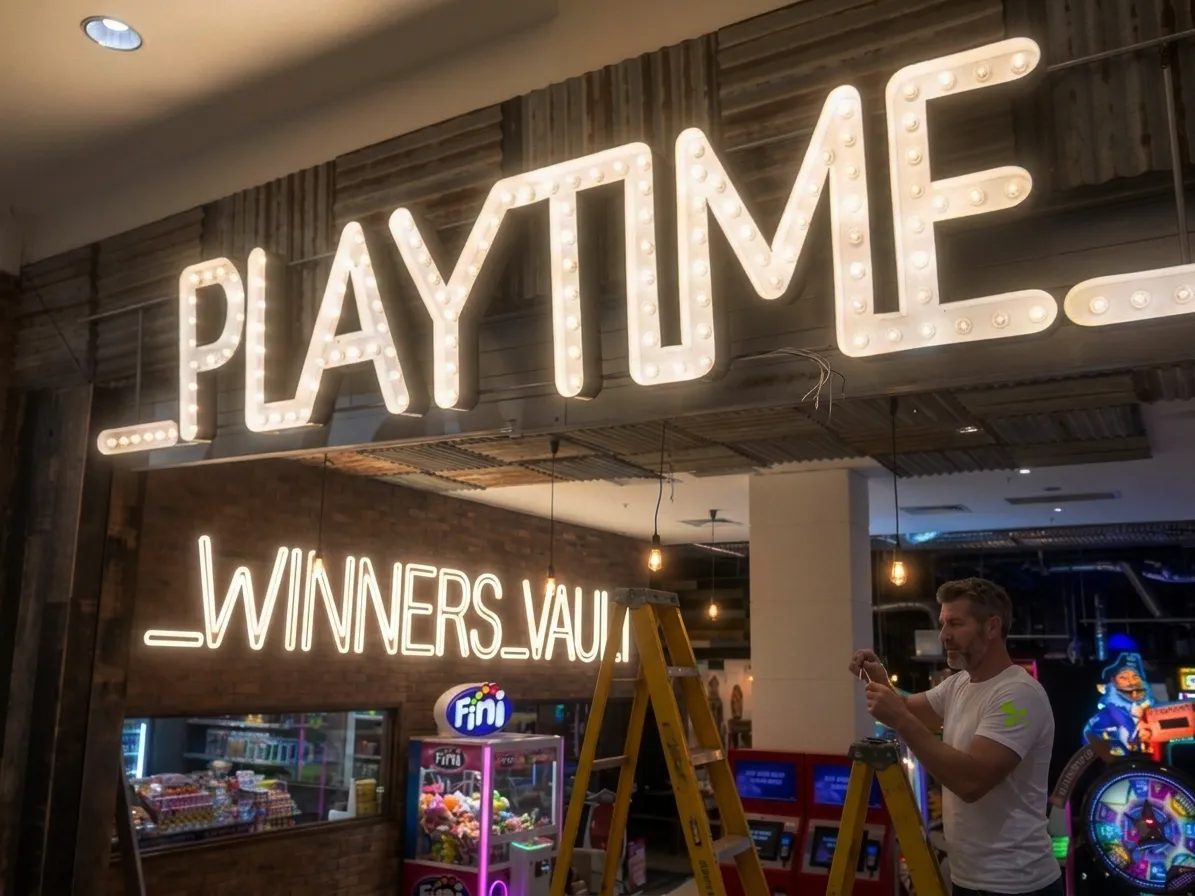

Punched Hole Exposed LED Letters
View Specifications
- ▪ 0.6-1.0mm galvanized sheet forms the 4-8cm depth frame.
- ▪ Galvanized sheet painted to your requested color (PMS, RAL).
- ▪ Precision punched holes (9mm, 12mm, or 20mm diameters).
- ▪ Fitted with waterproof exposed LEDs (RGB available).
- ▪ CE-approved waterproof 5V transformer.
- ▪ RGB LED effects managed via programmable controller.
- ▪ Galvanized sheet for the back casing, or equipped with installation brackets.
- ▪ Includes a 1:1 installation template and secure packaging.
- - Galvanized sheet can be substituted with other metal materials.
- - Holes can be punched on both the front and sides for enhanced lighting effects.

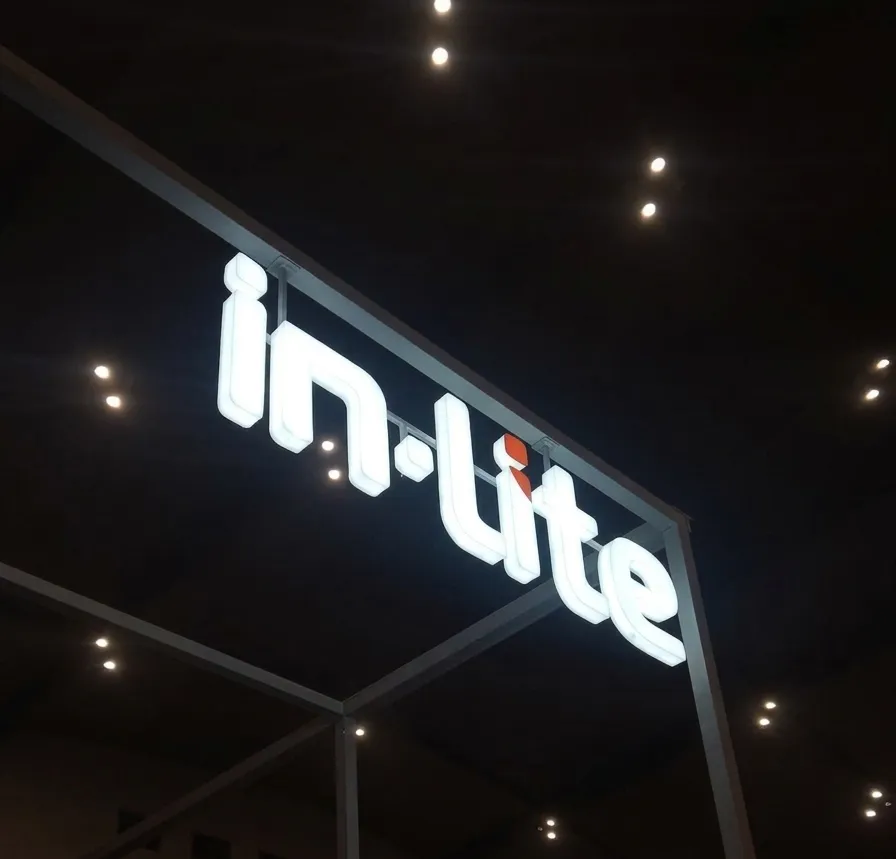

All-Acrylic Side & Front-Lit Letters
View Specifications
- ▪ Imported 3mm acrylic for the front face; can be painted to block front illumination if desired.
- ▪ Imported 2-3mm acrylic forms the 6-10cm depth edges.
- ▪ Internally fitted with waterproof LED modules, backed by a 4-year warranty.
- ▪ PVC, galvanized sheet, or aluminum composite for the back casing.
- ▪ CE-approved waterproof 12V transformer.
- ▪ Includes a 1:1 installation template and secure packaging.
- - Custom colors can be achieved via airbrushing or vinyl overlays.
- - All sizes are fully customizable.
- - Capable of simultaneous front, side, and back illumination.
Mini Crystal Letters
View Specifications
- ▪ 15-20mm solid acrylic, 3D laser-cut for the front shape.
- ▪ 10-15mm solid acrylic, hollowed out to house LEDs in the bottom casing.
- ▪ Fitted with miniature LED modules (custom colors available).
- ▪ Seamlessly bonded and sealed using professional acrylic adhesive.
- ▪ Sides are painted to prevent light leakage.
- ▪ Includes a CE-approved 12V transformer and 1:1 installation template.
- ▪ Secure packaging: internal bubble wrap and export-grade three-ply wooden crate.
- - Primarily recommended for indoor use.
- - Maximum height is limited to 80cm.

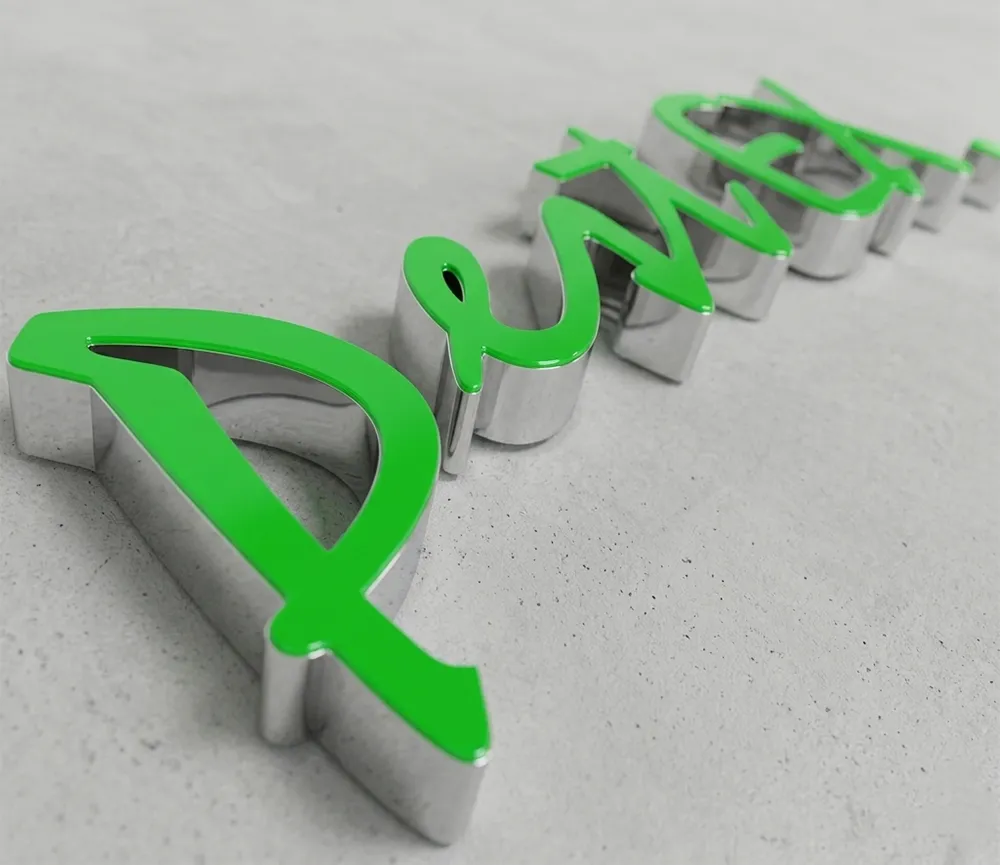

Epoxy Resin Sign Letters
View Specifications
- ▪ 304# mirror stainless steel forms a 3-4cm depth frame.
- ▪ High-quality epoxy resin for the front face.
- ▪ Internally fitted with waterproof LED modules, backed by a 3-year warranty.
- ▪ CE-approved waterproof 12V transformer.
- ▪ 304# mirror stainless steel for the back casing.
- ▪ Includes a 1:1 installation template.
- ▪ Secure packaging: internal bubble wrap and export-grade three-ply wooden crate.
- - Mirror stainless steel can be substituted with painted galvanized sheet.
Vacuum-Formed Acrylic Channel Letters
View Specifications
- ▪ 3mm vacuum-formed acrylic front panel; silkscreen printing available for custom colors.
- ▪ Sides made of galvanized sheet, aluminum, or stainless steel (custom painted to PMS or RAL).
- ▪ Internally fitted with waterproof LED modules.
- ▪ Includes a CE-approved 12V transformer.
- ▪ PVC, aluminum composite, or galvanized sheet for the back casing.
- ▪ Includes a 1:1 installation template.
- ▪ Secure packaging: internal bubble wrap and a three-ply wooden crate.
- - This type of channel letter requires custom molding; highly recommended for large-volume orders.
Installation Methods

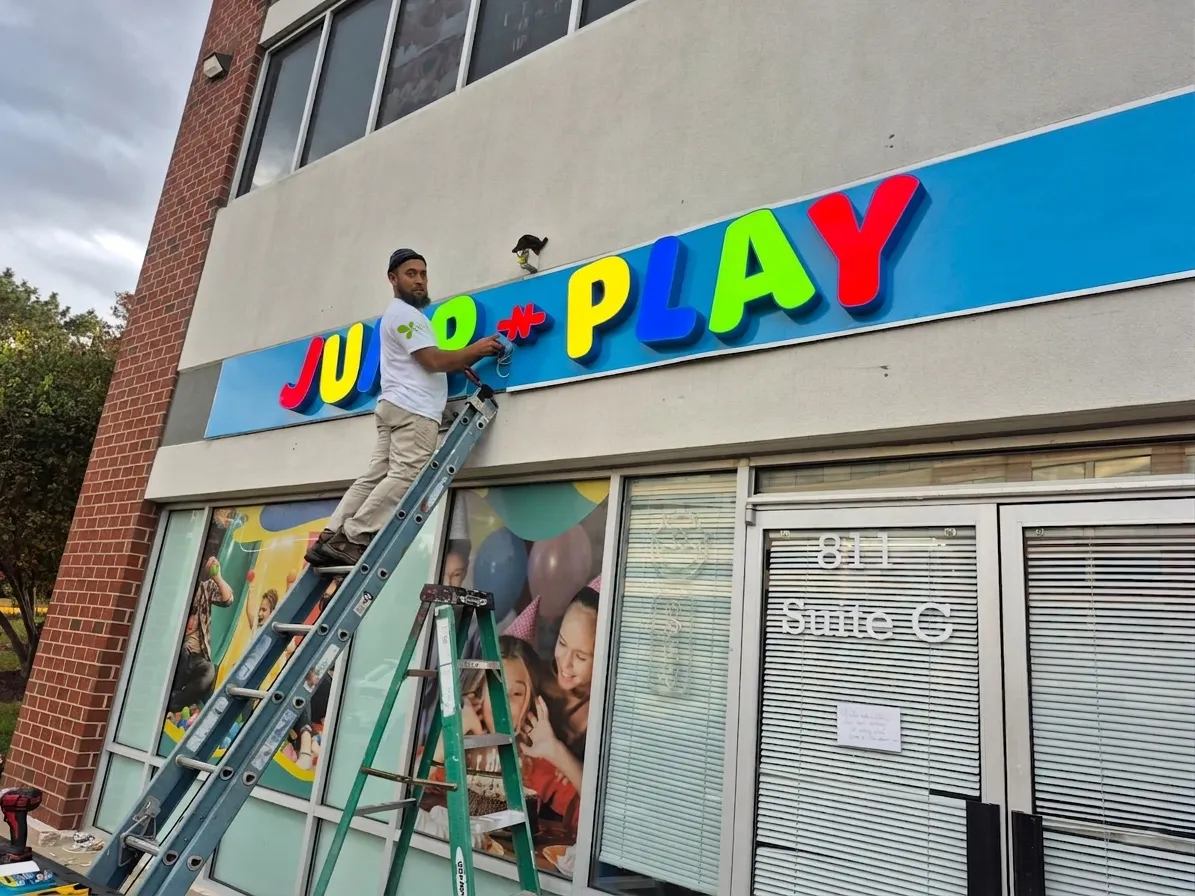

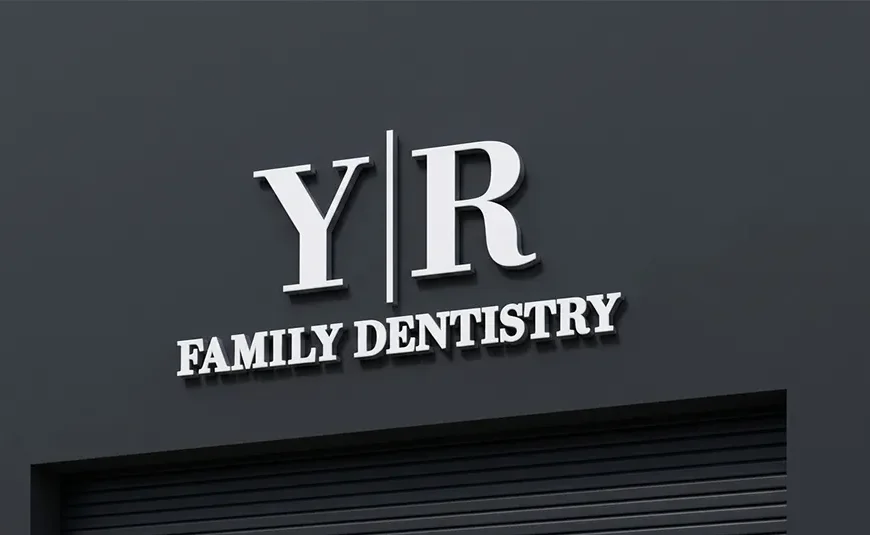

Flush Wall Mounted
Direct MountingLetters are directly fixed onto the wall surface. Wiring is hidden behind each letter for a clean, integrated appearance.

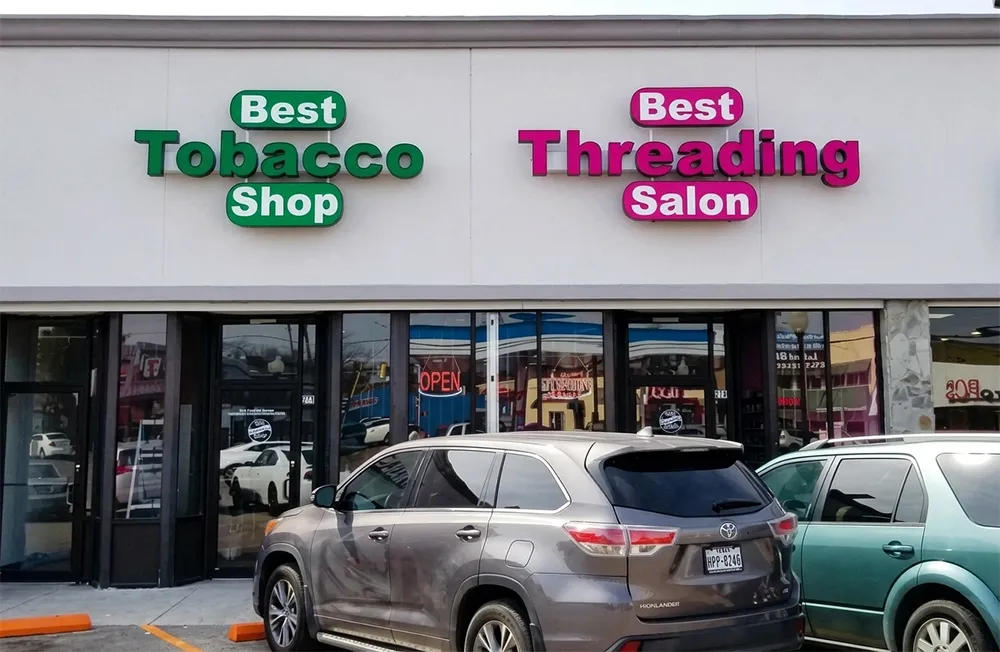

Raceway Mounted
Track SystemAll letters are pre-installed on a metal raceway box that contains wiring and power supply. Only the raceway is mounted to the wall.
- Faster installation
- Easier maintenance
- Requires fewer wall penetrations

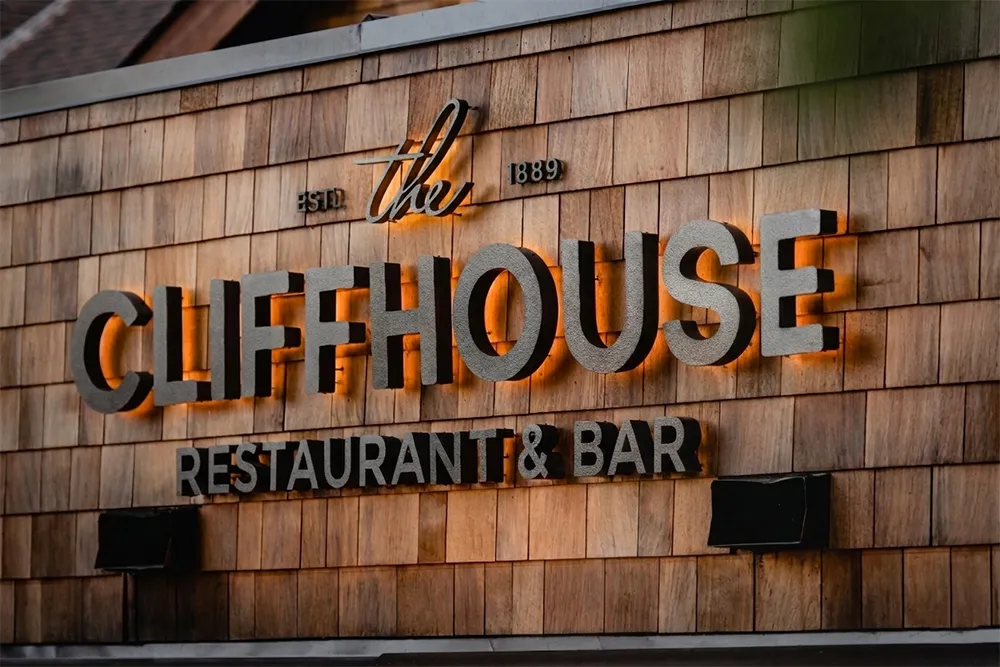

Stand-Off Mounted
Floating InstallationLetters are mounted slightly away from the wall using metal spacers, creating a floating visual effect. This can also produce a subtle halo shadow behind the letters.
System Summary
Front-lit channel letters offer immense versatility and can be fully customized across three primary dimensions:
Each structure is meticulously designed to accommodate different budget levels, specific branding styles, and distinct installation environments. Our engineering team ensures every specification meets international commercial standards.
What Customers Want to Know
Solving traditional industry pain points with advanced engineering for front-lit LED channel letters .
Visibility & Brightness
Uneven brightness and visible LED hotspots on standard front and back-lit channel letters.
Premium high-transmittance acrylic combined with scientifically calculated LED spacing ensures flawless, uniform illumination.
Outdoor Durability
Acrylic yellowing over time and water ingress causing LED failure in front-lit channel letters.
Anti-UV treated acrylic faces and fully sealed waterproof craftsmanship (IP65/IP67 ratings) guarantee long-term outdoor stability.
Brand VI Consistency
Inconsistent colors across different stores or production batches for franchise front-lit channel letters.
Strict ISO 9001 color-matching protocols and dedicated raw material sourcing ensure 100% brand VI accuracy every time.
Installation Costs
Complex wiring and high labor costs when attaching front-lit channel letters to sign facades.
pre-tested components, and precise 1:1 installation templates drastically reduce on-site labor time.
Day & Night Balance
Signs that look great at night but dull during the day, especially for front and halo-lit channel letters.
High-contrast trim caps and premium vinyl overlays ensure the sign remains sharp and eye-catching under direct sunlight.
Logistics & Protection
Project delays and shipping damage when ordering front-lit channel letter signs internationally.
Lean production for rapid lead times and reinforced export-grade wooden crate packaging guarantee safe global delivery.
Front-Lit Letter Design
Requirements & Hotspot Control
The lighting quality of front-lit channel letters depends on more than LED brightness. Letter depth, stroke width, acrylic diffusion, LED spacing, and logo complexity all affect whether the final sign looks evenly illuminated or shows visible hotspots.
Engineered for Impact
Industry Applications

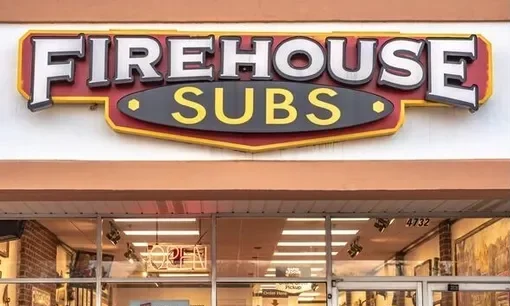

Retail & Franchises

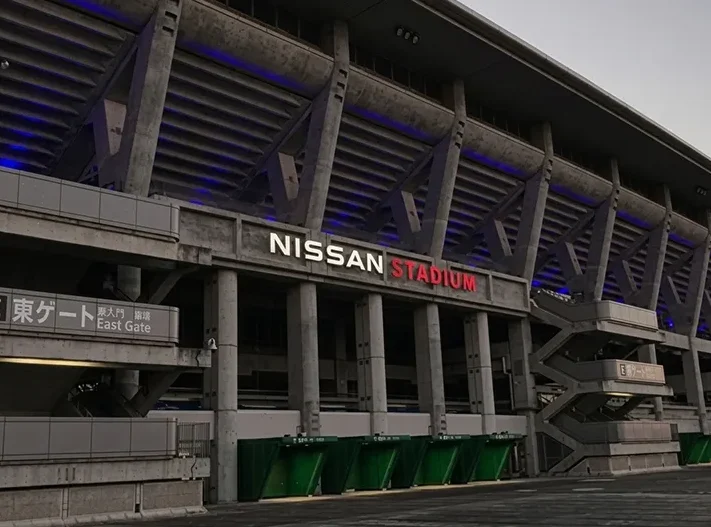

Corporate Campuses

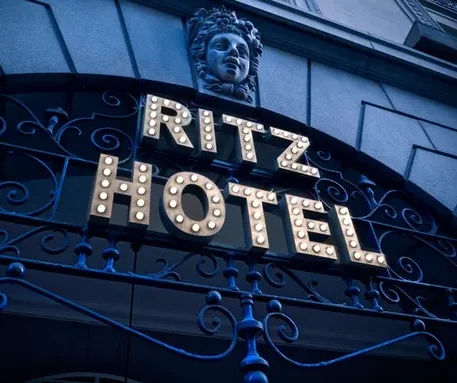

Hospitality & Leisure

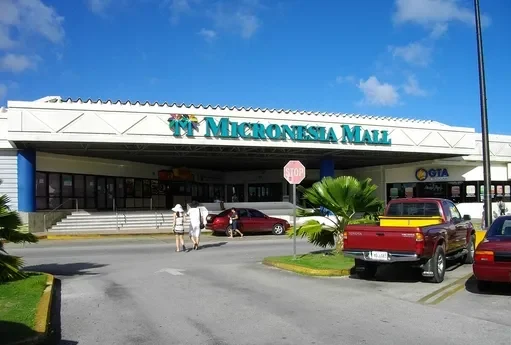

Commercial Centers
Trade Exhibitions

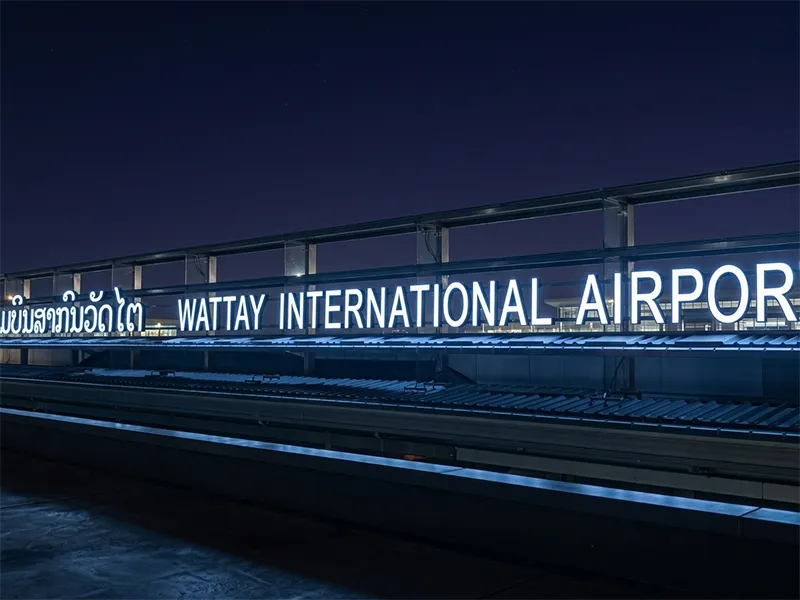

Industrial Facilities
Ready to illuminate your next major project?
System Status: Online & Ready for Specs
When Should You Choose Front-Lit Channel Letters?
Front-lit channel letters are the best choice when strong front-facing visibility, clear nighttime readability, and high brand exposure are the main goals. They are widely used for storefronts, shopping malls, restaurants, retail chains, corporate buildings, and commercial facades.
Choose Front-Lit Channel Letters If You Need:
| Project Need | Why Front-Lit Letters Work Well |
|---|---|
| Strong nighttime visibility | The illuminated acrylic face makes the brand name clear and readable after dark. |
| Storefront attraction | Bright front lighting helps the sign stand out on busy streets and commercial areas. |
| Retail chain consistency | Acrylic face color, LED color temperature, and letter size can be standardized across multiple stores. |
| Clear brand recognition | The front face directly displays the logo shape and color, making it easy for customers to identify the brand. |
| Outdoor commercial signage | Sealed letter bodies, waterproof LEDs, and anti-UV acrylic make front-lit letters suitable for exterior use. |
| Cost-effective illuminated signage | Compared with more complex dual-lit structures, front-lit letters provide strong visibility with a simpler lighting system. |
Front-Lit Letters May Not Be the Best Choice If:
| Situation | Better Option |
|---|---|
| You want a soft halo glow behind the letters | Reverse Channel Letters |
| You need both bright face lighting and rear halo lighting | Front and Back Lit Channel Letters |
| You only need daytime architectural branding | Non-Illuminated Channel Letters |
| Your logo has extremely thin strokes or very small details | Mini LED Letters or adjusted front-lit structure |
| The sign is mainly for decorative atmosphere instead of storefront visibility | LED Neon Letter Signs |
Real-World Installations

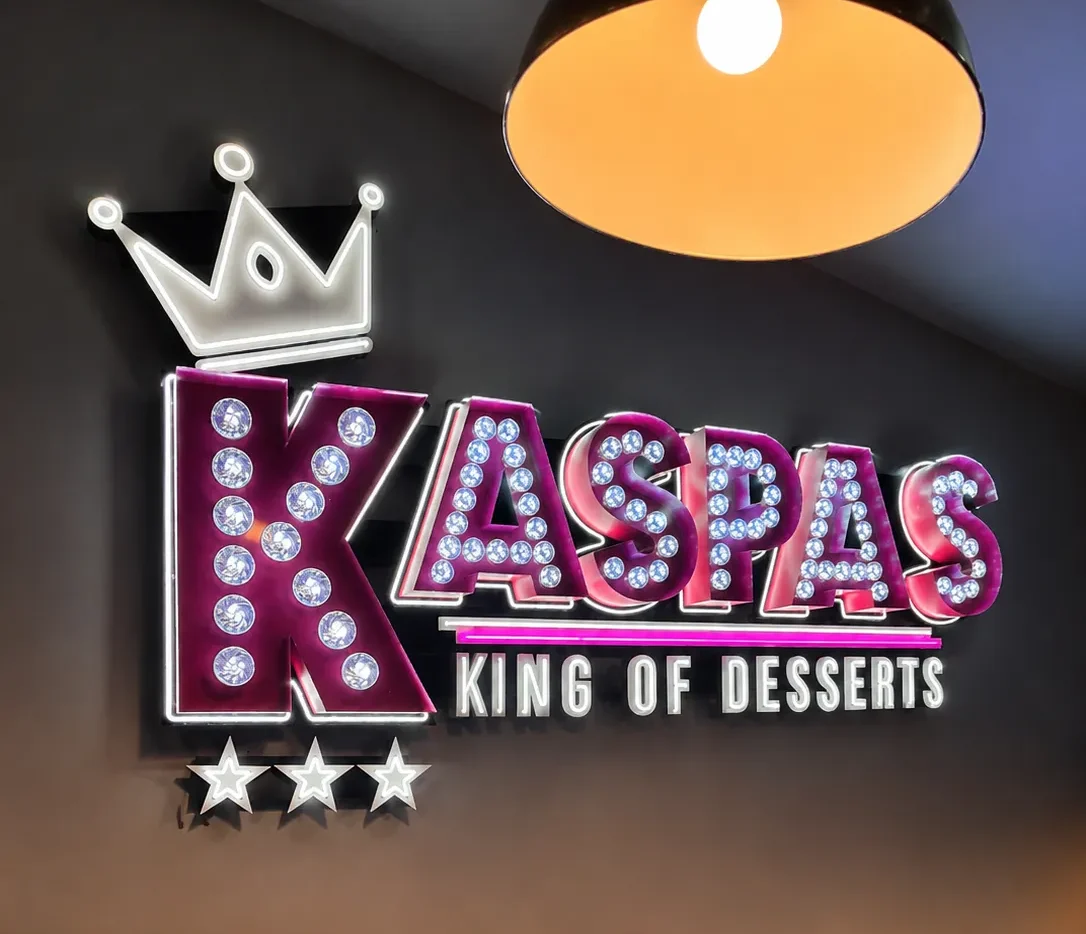

Large-Scale Channel Letters

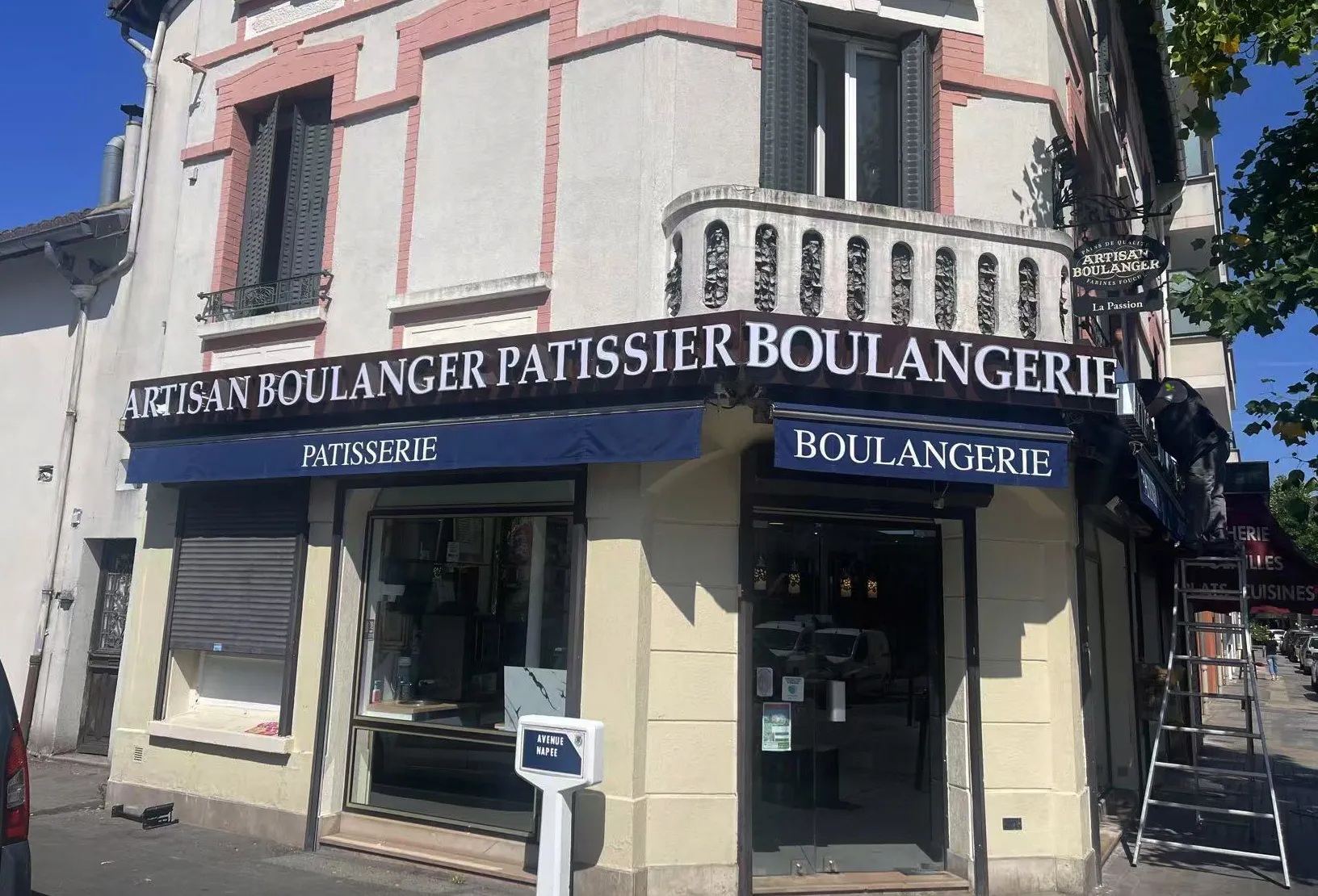

Custom Facade Signage

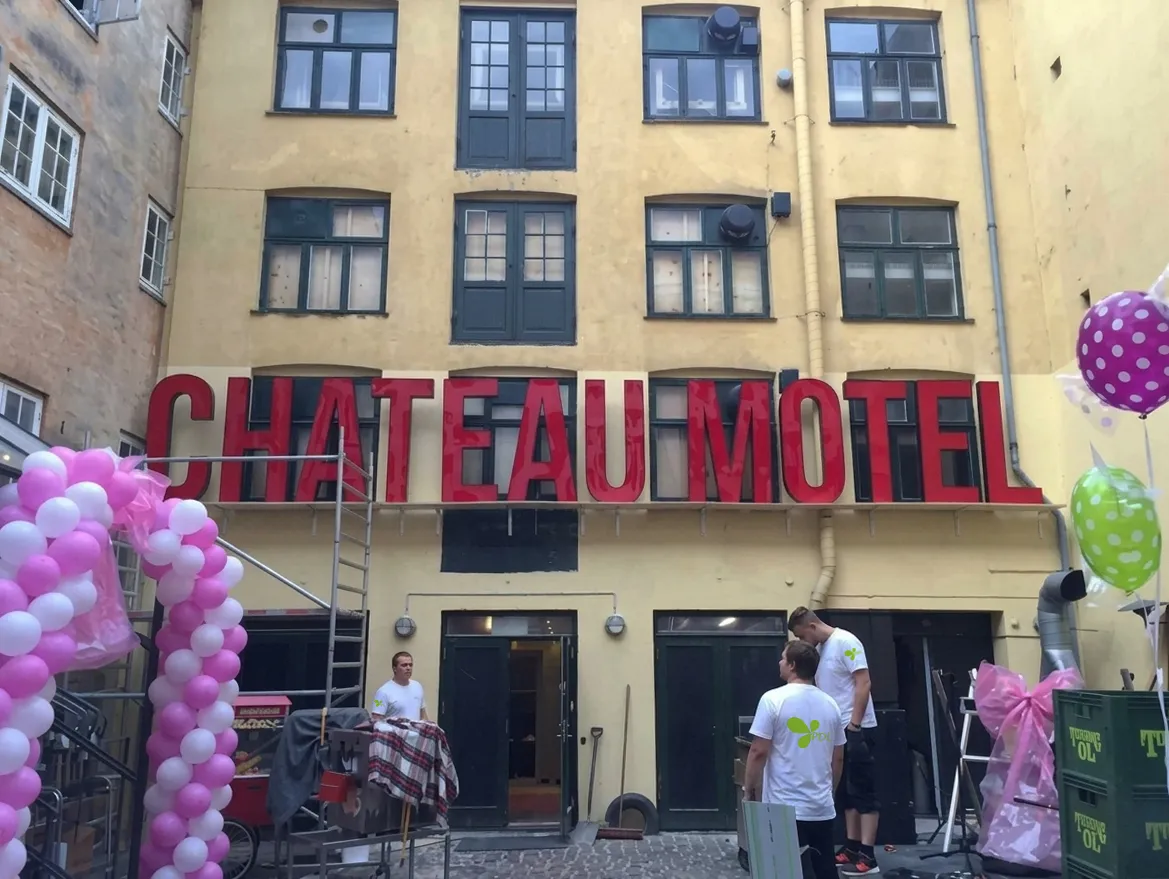

Premium Halo-Lit Logo
High-Visibility Front-Lit
Intricate 3D Lettering
Roof-Mounted Signage
Require a Reliable Manufacturing Partner?
Fully Customizable
Options
As a direct channel letters manufacturer, we offer limitless OEM/ODM capabilities. Our expanded production lines deliver unmatched versatility. We engineer your exact specifications with absolute precision.
Appearance
- Color
- Font style
- Shape
- Logo design
- Surface finish (brushed / mirror / matte / painted)
- Edge color
- Face color
- Return color (side color)
Size & Structure
- Letter height
- Letter depth / thickness
- Overall sign dimensions
- Stroke width
- Custom length
- Logo proportion
Material
- Acrylic face
- Stainless steel
- Aluminum
- Galvanized steel
- PVC
- Composite materials
Lighting
- Color temperature (Warm / Natural / Cool White)
- Single color lighting
- RGB color changing
- LED module type
- LED strip type
- Brightness level
- Halo / Front / Front & back illumination
Installation
- Wall mounted
- Raceway mounted
- Backer panel mounted
- Hanging installation
- Stand-off installation
- Flush mounted
Electrical
- Voltage options (12V / 24V / customized)
- Power supply specification
- Waterproof rating
- Indoor / outdoor configuration
Project & Branding
- OEM branding
- ODM design support
- Engineering drawings
- Packaging customization
- Multi-location projects
- Bulk order solutions
Extra Functions
- Waterproof level
- UV resistance
- Anti-corrosion treatment
- Energy-saving LED option
- Smart control system
- Dimming function
- Remote control
- Timer function
Trusted by
Partners Worldwide
Building enduring relationships through transparent communication, rigorous factory inspections, and continuous collaborative exchanges.
Company Visit
Discussing custom LED solutions, reviewing prototypes, and establishing long-term OEM/ODM partnerships.
Factory Tour
Inspection
Exchange
Discussion
Global Networking
Building Trust

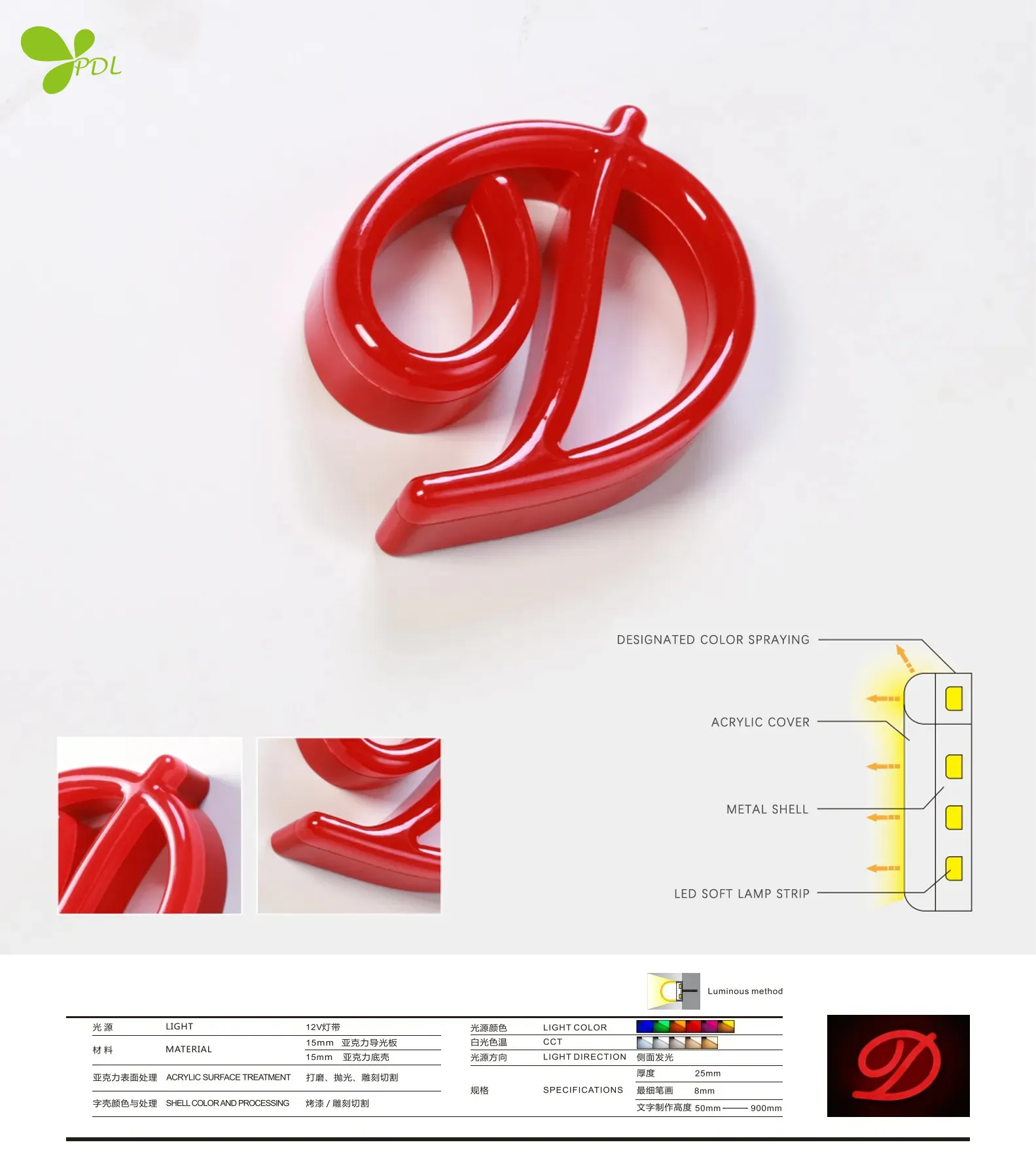

Technical Specifications
Structural Data & Case Studies
Engineered for absolute precision, our Custom LED Channel Letters set the industry benchmark for commercial signage. Leveraging a 20-year factory manufacturing legacy, we deliver uncompromising quality through advanced OEM/ODM processes.
Every structural layout is meticulously designed to ensure optimal thermal management, superior luminous efficacy, and strict compliance with CE & RoHS certifications. Access our detailed structural blueprints, material specifications, and performance data to integrate our proven signage solutions seamlessly into your next large-scale project.
Advanced Equipment
Professional Production Equipment

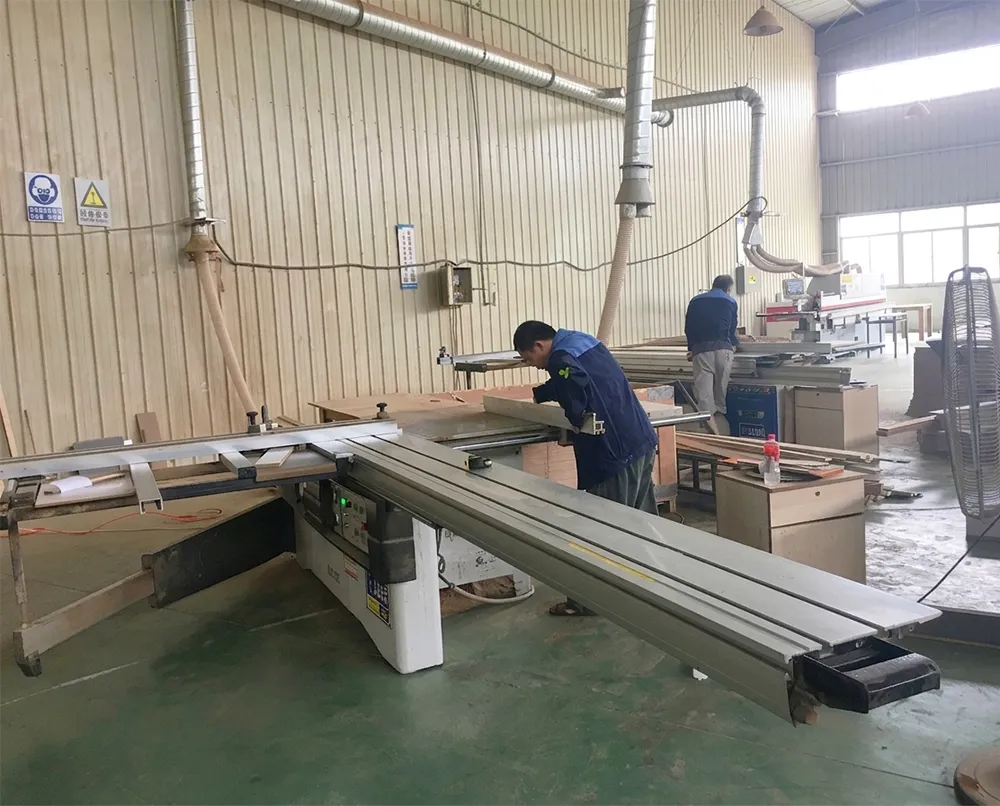

Precision Panel Saw
Advanced Machinery
Metal Cutting
Laser Technology
Metal Welding
Precision Assembly
CNC Engraving
Automated Routing
CERTIFICATIONS
ISO 9001
SGS
ISO 14001
Gold Supplier
RoHS
CE
Packaging Protection Process
Industrial-grade packaging standards ensuring your custom LED channel letters arrive safely and securely, anywhere in the world.
Surface Protection
Protective film is applied to acrylic and metal surfaces to prevent scratches during handling.
Individual Wrapping
Each sign component is wrapped with foam, bubble protection, and corner guards.
CUSTOM CRATE PACKAGING
Customizable cardboard boxes available in various sizes.
Export Crate Packaging
Heavy-duty export packaging or customized wooden crates provide additional protection for international shipping.
Final Inspection
Products undergo packaging inspection and quantity verification before dispatch.
Global Shipping
Support for air freight, sea freight, express delivery, and project-based logistics solutions.
Discuss your project logistics with our team today. We ensure your custom signs arrive exactly as they left our factory.
LED Signage
Installation Manual
Preparation
Open the box, take out the 1:1 scale yellow Kraft paper and spread it on the floor. Then, place the LED letters on the corresponding graphic on the Kraft paper. Take the transformer after confirming the LED letters, and read the installation instructions carefully. Plug in the transformer and test the LED letters.
Positioning
Fix the Kraft paper to the location where you want to install it (the template shows the mounting screw holes and cable outlet holes).
Drilling
Use self-tapping screws and drive them three-quarters of the way in at the correct spots. Then, use an 8mm diameter masonry drill bit to drill the cable outlet holes.
Mounting
Apply silicone sealant and hot-melt adhesive to the back of the LED letters, and route the cable through the outlet holes. Then, hang and tighten the corresponding screws (the corresponding Kraft paper must be torn off before installation). Apply a small amount of silicone sealant in discreet locations between the LED letters and the backing.
Wiring
As illustrated, connect the 220V to the transformer input or 'L' 'N', the 12V output (anode, +, red) (cathode, -, black/blue), and connect the black/blue cables to the LED letters' output.
Location
The transformer must be installed in a dry and well-ventilated location.
Transformer Structure
LED letters are 12V low-voltage electrical devices. If many lights are cascaded, it will dim the lighting, so we need the transformer V+, V- or COM in parallel with the LED letters.
Critical Warning
Do not connect directly to 220V without using a transformer!!!
Frequently Asked Questions
Expert Answers commercial signage manufacturers.
Are your channel letters completely waterproof for outdoor use?
What is the expected lifespan of the LEDs?
Do you support bulk orders for franchise chains?
Do you offer OEM/ODM manufacturing services?
At what voltage do your signs operate?
How are the signs packaged for international shipping?
Industry Knowledge
Front-Lit Channel Letter Project Planning Guide
Key information for preparing an accurate quotation, approving production drawings, selecting suitable sign dimensions, and reducing project changes before manufacturing.
01. Cost Factors & Quote Preparation
The price of front-lit channel letters depends on more than the overall sign size. Letter quantity, individual dimensions, logo complexity, installation structure, electrical requirements, surface finish, packaging, and delivery destination can all affect the final quotation.
Logos with narrow strokes, multiple small components, complex curves, or separate lighting zones may require additional engineering and assembly work.
Information Needed for an Accurate Quote
- ✓ Logo or artwork file
- ✓ Required dimensions
- ✓ Order quantity
- ✓ Installation location
- ✓ Site or façade photo
- ✓ Destination country
- ✓ Required delivery date
Providing complete information at the beginning helps reduce repeated revisions and unexpected cost changes.
02. From Artwork to Production Drawing
A logo file normally needs to be reviewed before it can be used for manufacturing. The artwork must be converted into a production drawing that defines dimensions, component divisions, mounting points, cable outlets, and other project-specific details.
Vector files such as AI, EPS, PDF, SVG, or CAD are preferred. High-resolution JPG or PNG files may be used for an initial review, but they may need to be redrawn before production.
Standard Approval Process
-
✓
Artwork Review Check the logo, font, proportions, and color references.
-
✓
Engineering Drawing Convert the design into manufacturable components.
-
✓
Specification Confirmation Confirm dimensions, finishes, mounting points, and cable positions.
-
✓
Customer Approval Begin production after the drawing is approved.
03. Sign Size & Façade Planning
The correct letter size depends on viewing distance, installation height, façade width, logo proportions, and the available mounting area. A sign that looks suitable on a computer screen may appear too small or unbalanced after installation.
Before confirming the dimensions, the buyer should provide a front-facing site photo and basic wall measurements.
Useful Site Information
- ✓ Available installation width and height
- ✓ Distance from the sign to the viewer
- ✓ Installation height above ground
- ✓ Position of doors, windows, and columns
- ✓ Available power and cable location
- ✓ Property-management size restrictions
These details allow the sign proportions to be reviewed in relation to the actual building rather than based only on the logo file.
04. Pre-Production Approval & Project Handover
Before manufacturing begins, the buyer should confirm that the approved drawing matches the installation site, brand requirements, and project schedule. For multi-location or repeat orders, a prototype may also be produced before full batch production.
Before shipment, the completed order should be checked against the approved drawing. Lighting test records, quantity lists, installation references, and labeled accessories can then be provided for project handover.
Items to Confirm Before Production
- ✓ Final dimensions and spelling
- ✓ Logo proportions and color references
- ✓ Mounting and cable positions
- ✓ Installation access
- ✓ Required completion date
- ✓ Quantity for each location
- ✓ Drawing version and location code
Become Our Partner
Get direct factory prices from top illuminated signage manufacturers. We are your source for wholesale front-lit channel letters.
Request a Quote
Direct Contact
Our Sales Team
Nick
TEL: +86 18065218129
EMAIL: nick@pdlsignage.com
Devin
TEL: +86 150 8035 0187
EMAIL: 1148111677@qq.com
Factory Address
Building 1, Tahoe Plaza, No.339 Baodao Middle Road, Hubin Street, Shishi City, Fujian Province, China
